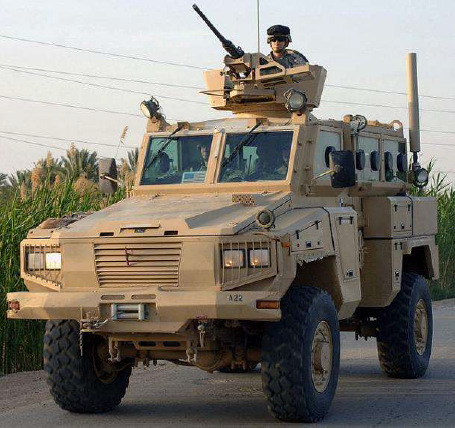

RG-31 Nyala South African 4x4 Mine-Resistant Ambush Protected (MRAP)

RG-31 Nyala

Mine-Resistant Ambush Protected (MRAP)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
RG-31 Nyala South African 4x4 Mine-Resistant Ambush Protected (MRAP)
Designation
RG-31 Nyala
Alternate Designation
RG-31 Nyala
Equipment Type
Mine-Resistant Ambush Protected (MRAP)
Manufacturer
BAe Systems Land Systems OMC - South Africa
Date of Introduction
2005
Description

The RG-31 Nyala South African 4x4 Mine-Resistant Ambush Protected (MRAP) ambush-protected infantry mobility vehicle manufactured in South Africa by Land Systems OMC (the division of Denel SOC LTD, located in Benoni, South Africa) and in Turkey by FNSS Defence Systems. It is based on the Mamba APC of TFM Industries. The RG-31 is built from a V-shaped all-steel welded armor monocoque hull and high suspension, typical of South African mine-protected vehicles, providing excellent small-arms and mine blast protection. The vehicle is designed to resist a blast equivalent to two TM-57 anti-tank mines detonating simultaneously. The RG-31 is classified by the United States Department of Defense as a category 1 Mine Resistant Ambush Protected (MRAP) vehicle. The vehicle accommodates a crew of 8 or 10, including the driver, depending on the model. Dismounting is provided via a large rear door and two front doors. The RG-31 has become the multi-purpose vehicle of choice of the UN and other peacekeeping and security forces. It is finding favor with non-governmental organizations requiring a vehicle with a non-aggressive appearance to protect their personnel against land mines. In July 2016, the Letterkenny Army Depot in Pennsylvania rolled out the latest variant of the RG31, with improvements including an engine upgrade from 275 to 300 hp, a transmission upgrade from 2,500 to a 3,000 series, independent suspension, 360-degree spotlights for night visibility, and an armored gunner's hatch. The depot is scheduled to produce 929 these RG31s through 2020.

Ground Specifications
Crew 2
Engine Diesel (123 hp)
Range 900.0 km
Variants
RG-31 Mk.3 Widespread model.
RG-31 Mk.5 Improved model with superior ballistic and mine protection.
RG-31 Mk.5E Extended model with larger interior volume and passenger capacity.
RG-31 Mk.6 Model with enhanced crew protection.
RG-31 Mk.3 Charger version of the US Army, powered by Detroit Diesel engine. In USA the RG-31 is classified as Category 1 Mine Resistant Ambush Protected Vehicle.
RG-31 Mk.5 Charger Version of the US Army, powered by Cummins QSB engine.
RG-31 Sabre Utility version with a cargo area at the rear. It seems that this vehicle was never produced in quantity.
RG-31 Agrab (Scorpion) Mortar carrier with 120 mm mortar. It is based on RG-31 Mk.5. It was jointly developed with International Golden Group of UAE.
System
Alternative Designation RG-31 Nyala
Type Mine-Resistant Ambush Protected (MRAP)
Configuration 4x4
Manufacturer BAe Systems Land Systems OMC - South Africa
Crew 2 ea
Passengers 6 ea
Dimensions
Length 6.4 m
Width 2.5 m
Height 2.47 m
Weight 7.28 tons
Automotive
Engine Name Daimler-Benz OM 352A
Engine Type Diesel
Engine Power 123 hp
Range 900 km
Maximum Road Speed 100 km/h
Gradient 50%
Side Slope 30%
Trench 0.5 m
Vertical Step 0.5 m
Fording 1.5 m
Main Weapon System
Note RG-31 Nyala South African 4x4 Mine-Resistant Ambush Protected (MRAP) can be armed with a roof-mounted 7.62 mm or 12.7 mm machine gun or 40 mm automatic grenade launcher. Some vehicles are fitted with remotely controlled weapon stations. Also there are some firing ports provided for the troops to fire their individual weapons.
Protection
Hull Armor South Africa pioneered and perfected design of mine protected vehicles. Armored vehicles from this country provide excellent small-arms and mine blast protection. The Nyala has a V-shaped floor which deflects mine blasts away from the vehicle. It withstands blast equivalent to 14 kg of TNT under any wheel or equivalent of 7 kg or TNT anywhere under the hull. Crew and passengers are also protected from small arms fire and artillery shell splinters.
Applique Armor Available
NBC Protection No
Self-Entrenching Blade No
Smoke Equipment INA
Details
Country of Origin South Africa
Category Mine-Resistant Ambush Protected (MRAP)
Land > Infantry Vehicles > Mine-Resistant Ambush Protected (MRAP)
Filter Label
R
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
6.4 m
Width
2.5 m
Height
2.47 m
Weight
7280 kg
Operators (8)
United States
Spain
Burundi
Canada
Colombia
Rwanda
Somalia
United Arab Emirates
