Samavat Iranian 35mm Towed Anti-Aircraft Gun

Spotted an error? Sign in to suggest an edit.

Basic Information

Name

Samavat Iranian 35mm Towed Anti-Aircraft Gun

Designation

—

Alternate Designation

—

Equipment Type

—

Manufacturer

Oerlikon Contraves

Date of Introduction

2008

Description

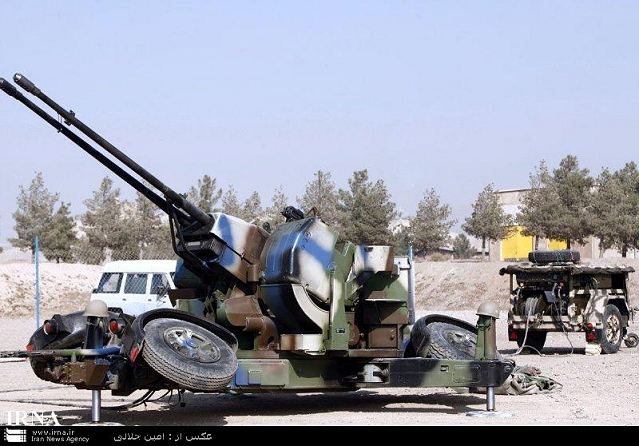

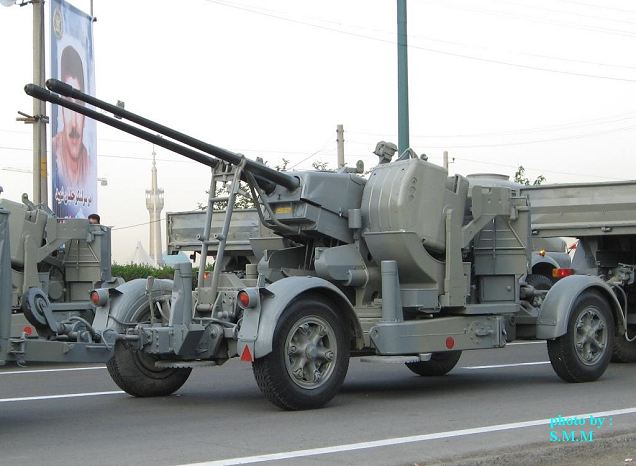

The Samavat is an Iranian copy of the 35-mm GDF that was first publicly displayed in 2008. Some reports claim the Samavat is similar to the GDF-001; it is said to utilize a Skyguard GCS. GDF-001 This is the first production variant. It is fitted with a Xaba optical sight. Many were updated with NDF-A, B or C kits. The Oerlikon GDF or Oerlikon 35 mm twin cannon is a towed anti-aircraft gun made by Oerlikon Contraves (renamed as Rheinmetall Air Defence AG following the merger with Rheinmetall in 2009). The system was originally designated as 2 ZLA/353 ML but this was later changed to GDF-001. It was developed in the late 1950s and is used by around 30 countries. The system uses twin autocannons, firing 35×228mm NATO-standard ammunition. It was originally designated 353 MK and is now designated as the KD series. The same KD series 35mm cannons are used in the Leopard 1 based Gepard and Type 74 tank based Type 87 SPAAG and Marksman self-propelled anti-aircraft guns (SPAAG). The system could be paired with the off-gun (remote) Super Fledermaus fire control radar, which in the late 1970s was upgraded to the Skyguard system. The weapons was aimed either directly, by way of an advanced sighting system, or automatically, by locking onto the target with radar. Early models carried 112 rounds ready to fire, and an additional 126 stored on the chassis as reloads. Later versions with automated reloading carry 280 rounds total. A typical engagement burst is 28 rounds

Ground Specifications

Crew 3

Mobility Type Towed

Main Weapon 35-mm/90-cal, rifled

Range 4.0 km

Variants

GDF-001 XABA sight

GDF-002 Introduced in 1980. Improved Ferranti sight and digital data bus. The gun has 112 rounds ready and 126 in reserve (238 rounds total)

GDF-003 Minor enhancements including protective covers and automatic weapon lubrication.

GDF-005 Introduced in 1985. Fitted with Gunking 3D computer-controlled sight with a laser range finder and digital fire control system. Integrated power supply and diagnostics. 280 rounds on the gun and an automatic re-loading system.

GDF-007 GDF-005 upgraded with AHEAD system.

GDF-009 Unveiled at IDEF 2015, held in May 2015 in Istanbul. To date, its exterior significantly changed, although the installation has retained the design of the original serial versions of the systems.Unlike other variants, this one relies on an internal power source.The GDF-009 model is based on a four-wheeled carriage, and is raised off the ground by three stabilisers when deployed in the firing position. It also features an automatic levelling system that can compensate for a maximum tilt angle of up to 7°.Mounted on the forward part of the carriage is the integrated battery, which functions as the gun's power supply unit and can be recharged from an external source if required.

AHEAD An upgrade for the GDF series guns built around a special projectile which explodes at a pre-calculated point in front of the target, sending a cone of 152 tungsten sub-projectiles at the target. Used by Canada, Pakistan, Greece, Oman, Spain, Taiwan, and Chile (unconfirmed).

System

Alternative Designations Samavat

Crew 3

Carriage 4-wheeled/2-axle towed chassis

Emplacement 1.5 minutes

Displacement 1.5 minutes

Dimensions

Length, Traveling 7.80 m

Length, Firing 8.83 m

Barrel Length 3.15 m

Width, Traveling 2.26 m

Width, Firing 4.49 m

Height, Traveling 2.60 m

Height, Firing 1.72 m

Ground Clearance 330 mm

Weight, Traveling 6,700 kg

Weight, Without Ammunition 6,300 kg

Main Weapon System

Ammunition Types HE-T/HEI-T, HE/HEI, HEI(BF), SAPHEI/SAPHEI-T, APDS/FAPDS, TP-T/TP, AHEAD

NDF-A Package The NDF-A is the simplest of three combat improvement kits for existing mounts. It offers a Ferranti sight, automatic breech block lubrication, a rate-of-fire limiter for better accuracy and a permanently attached camouflage kit.

NDF-B Package The variants is the same as NDF-A, with the addition of an automatic reload system and gunner cab.

NDF-C Package The NDF-C version is the same as NDF-A, but substituting Gun King for the Ferranti sight and adding integrated power supply.

System

Name KDC- gun

Type Towed Anti-Aircraft Gun

Caliber 35 mm

Bore 35-mm/90-cal, rifled

Elevation -5 deg to 92 deg (-89 mils to 1,634 mils)

Elevation Rate 56 deg (1,000 mils)/sec

Traverse 360 deg (6,400 mils)

Traverse Rate 112 deg (2,000 mils)

Breech Type gas-operated positive lock

Recoil System hydromechanical

Maximum Range 4,000 m

Muzzle Velocity 1,175 mps

Rate of Fire 550 rounds/min per barrel

Ammunition (Option 1)

Type HE-T/HEI-T

Caliber 35 mm

Projectile Length 387 mm

Projectile Weight 535 g

Explosive 98 g

Propellant 330 g

Weight of Complete Round 1,565 g

Ammunition (Option 2)

Type HE/HEI

Caliber 35 mm

Projectile Length 387 mm

Projectile Weight 550 g

Explosive 112 g

Propellant 330 g

Weight of Complete Round 1,552 g

Ammunition (Option 3)

Type HEI(BF)

Caliber 35 mm

Projectile Length 387 mm

Projectile Weight 550 g

Explosive 70 g

Propellant 330 g

Weight of Complete Round 1,552 g

Fire Control System

FCS Name INA

Computerized FCS INA

Sight Ferranti sight

Note Most GDF mounts are integrated with an external fire-control system, usually the Super Fledermaus or Skyguard system.

Radar System

Radar Vehicle Name Skyguard Radar Fire-Control System.

Skyguard Radar Details The Skyguard system is contained within a towed trailer, mounted on the roof of which is a pulse doppler search radar, a pulse doppler tracking radar and a co-axial television camera. The trailer also houses the crew of two and a small petrol generator. Skyguard is an all-weather air defense system for the control of aircraft at low altitude and at low and medium altitude range up to 3,000 m. The maximum effective distance is given as 4,000 m. The system takes the air surveillance, target acquisition, calculation of the derivative-action values and the control of two Oerlikon 35 mm anti-aircraft guns. Skyguard is served by four people. It was created by Oerlikon-Buehrle. The weapon was introduced in the 1960s in the Swiss Army and got updates in 1975, 1995 and 2010. They are still in use. It had replaced the system Contraves Super Fledermaus in the Swiss Air Force. The Skyguard radar system was used in the German Air Force for surveillance of low-altitude flight zones. The radar unit is readied quickly through the use of hydraulic systems for antenna erection and leveling after deployment. A typical fire unit using the Skyguard consists of two twin 35 mm gun platforms with a single Skyguard fire control radar. Skyguard systems can also incorporate an optional SAM module based on the GDF's mount and radar system but with the guns replaced by four missile canisters. It can be armed with either Aspide or RIM-7 Sea Sparrow missiles. In Greek service the Skyguard system with RIM-7M is known as the VELOS.

Note Typical battery includes two gun mounts with separate generators, single Skyguard.

Protection

Armor INA

Image Sources

Notes https://armyrecognition.com/iran_iranian_army_light_heavy_weapons_uk/samavat_35mm_towed_anti-aircraft_twin-cannon_skyguard_radar_technical_data_sheet_specifications_pic.html; ;

Details

Country of Origin Iran

Category Towed Anti-Aircraft Guns

Land > Air Defense > Towed Anti-Aircraft Guns

Classification

Domain

Ground

Equipment Status

Active

Dimensions

Length

7.8 m

Width

2.26 m

Height

1.72 m

Weight

6700 kg

Operators (1)

Iran
