Severny Polyus Class (Project 00903 Class) Russian Ice-Resistant Self-Propelled Platform (IRSPP)

Severny Polyus Class

Ice-Resistant Self-Propelled Platform (IRSPP)
Spotted an error? Sign in to suggest an edit.
Severny Polyus Class (Project 00903 Class) Russian Ice-Resistant Self-Propelled Platform (IRSPP)
Other

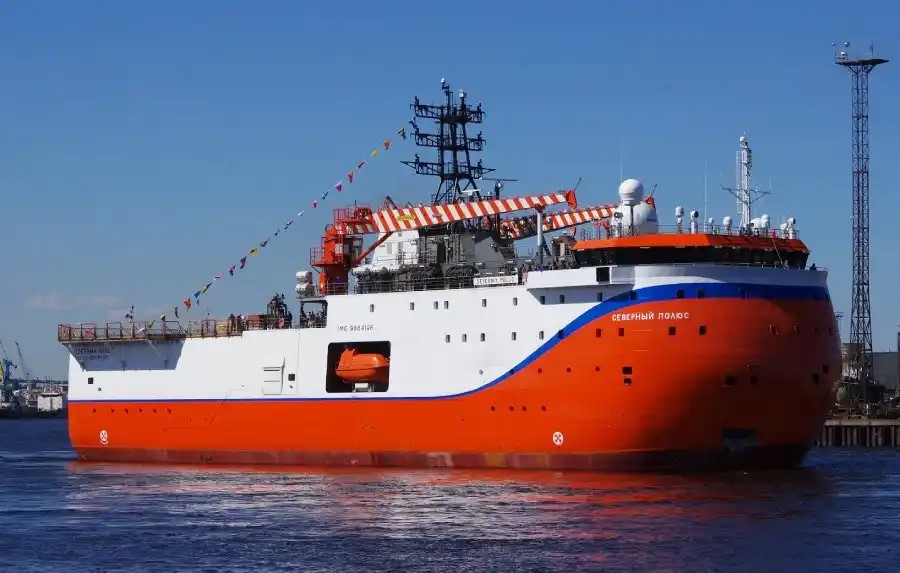

Severny Polyus Class (A)TRADOC ODIN WEG
Thumbnail
Thumbnail
Thumbnail
Basic Information
Name
Severny Polyus Class (Project 00903 Class) Russian Ice-Resistant Self-Propelled Platform (IRSPP)
Designation
Severny Polyus Class
Alternate Designation
Severny Polyus Class; Project 00903 Class
Equipment Type
Ice-Resistant Self-Propelled Platform (IRSPP)
Manufacturer
Admiralty Shipyards
Date of Introduction
2019
Description

The Severny Polyus Class (Project 00903 Class) Russian Ice-Resistant Self-Propelled Platform (IRSPP) is a The all-season scientific-research platform with onboard equipment that will be able to make geological, acoustic, geophysical, and oceanographic observations, move-in ice-covered waters without the assistance of icebreakers, provide a helipad for Mi-8 and Mi-38 helicopters and serve as a polar station offering comfortable and safe conditions of work and accommodation with an ambient temperature of up to 50 Celcius degree. The platform scientific center is equipped with a modern lab, and uninterrupted communication and is designed for the simultaneous work of 34 researchers.

Naval & Littoral Specifications
Crew 14
Beam 22.50 m
Draft 8.60 m
System
Alternative Designation Severny Polyus Class; Project 00903 Class
Type Ice-Resistant Self-Propelled Platform (IRSPP)
Builder Admiralty Shipyards (part of the United Shipbuilding Corporation)
Crew 14 ea
Scientist 34 ea
Dimensions
Length 83.1 m
Height INA
Beam 22.5 m
Draft 8.6 m
Displacement, Standard INA
Displacement, Full Load over 10,000 tons
Propulsion System
Engine Name INA
Engine Type INA
Engine Power 4,200 kW
Maximum Range INA
Maximum Speed 10 knots
Aviation Facilities
Hellipad Helipad for Mi-8 and Mi-38 helicopters
Protection
Hull Armor Hull Strength rated at Arc level 8
Countermeasures No
NBC Water Washdown System Yes
EW Intercept No
Image Sources
Notes https://www.bairdmaritime.com/work-boat-world/research-environment-training/vessel-review-severnny-polyus-large-ice-capable-research-vessel-for-russian-northern-arctic-operations;
Details
Country of Origin Russia
Category Special Purpose Ships
Naval > Special Purpose Ships
Filter Label
S
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
83.1 m
Width
22.5 m
Height
—
Weight
10000000 kg
Operators (1)
Russia
