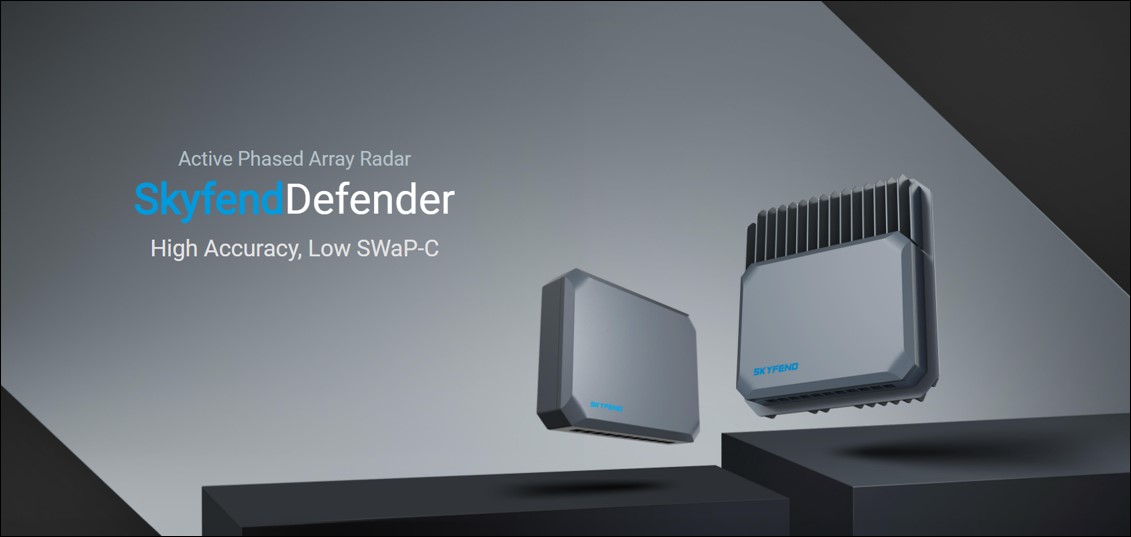

SkyfendDefender Chinese Active Phased Array Radar
SkyfendDefender
Air Defense Radar
Other
Basic Information
Name
SkyfendDefender Chinese Active Phased Array Radar
Designation
SkyfendDefender
Alternate Designation
SkyfendDefender
Equipment Type
Air Defense Radar
Manufacturer
Skyfend Technology
Date of Introduction
2023
Description
The SkyfendDefender Chinese Active Phased Array Radar is a compact and cost-effective K-band FMCW radar that provides close-range surveillance for land, sea and air applications. It's ideal for portable scenarios and high-value target defense, such as government buildings, official residences and prisons. It utilizes advanced environmental perception and target recognition algorithms to deliver rapid target detection and deployment capabilities.
System
Alternate Designation
SkyfendDefender
Type
Active Phased Array Radar
Manufacturer
Skyfend Technology
Identification Capabilities
Rotor UAV / Fixed Wing UAV / Birds
Tracking Qty
5~20 (TAS) / 200 (TWS)
Track Target Update Rate
5~20 Hz
Speed Range
±50 or 120 m/s（based pattern）
Angular Accuracy
Azimuth: ±1.0° Elevation: ±3.0°
Distance Accuracy
2 m
Speed Resolution
≤0.9
Distance Resolution
3 m
Fov
Azimuth: 120° Elevation: 40°
Detection Range
10~6,000 m (SUAV);>2,600 m (Human); >4,600 M (Vehicle)

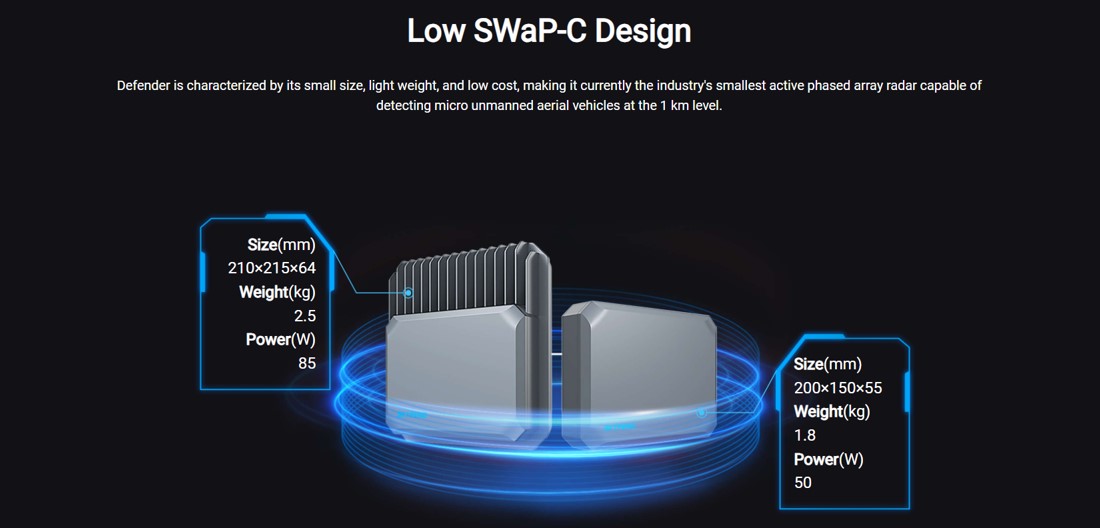

Dimensions (with Antennas Deployed)
Length
210 mm
Height
215 mm
Width
64 mm
Weight
2.5 kg
Details
Country of Origin
China
Category
Land Based Electronic Warfare (EW) Systems
Land > Land Based Electronic Warfare (EW) Systems
Filter Label
S
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
0.21 m
Width
0.06 m
Height
0.22 m
Weight
2.5 kg
Operators (1)
China
