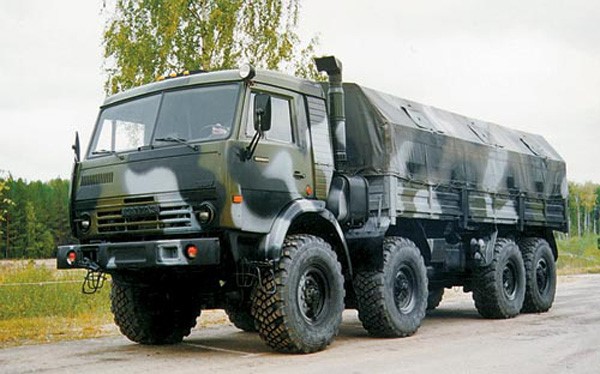

KamAZ-6350 Russian 8x8 Heavy Utility Truck

KamAZ-6350

Heavy Utility Truck
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
KamAZ-6350 Russian 8x8 Heavy Utility Truck
Designation
KamAZ-6350
Alternate Designation
KamAZ-6350
Equipment Type
Heavy Utility Truck
Manufacturer
KamAZ
Date of Introduction
2003
Description

The KamAZ-6350 (Russian КамАЗ-6350), also called "Mustang" (Russian Мустанг), is a heavy four-wheel drive truck from the production of KAMAZ plant in Naberezhnye Chelny . The vehicle has been built since 1998 and is also designed for military applications. The Ural 5323 is a very similar vehicle, which also comes from Russian production. The 6350 model is one of the largest trucks in KamAZ range. Its development began in 1987. First prototypes were completed in the early 1990s, however, this truck was officially accepted to service with the Russian Army only in 2002, as well as other trucks of the Mustang range. A low-rate production commenced in 2003.

Ground Specifications
Crew 1
Engine Diesel (360 hp)
Active Protection None
NBC Protection Yes
Variants
KamAZ-4350 INA
KamAZ-5350 INA
System
Alternative Designation KamAZ-6350
Type Heavy Utility Truck
Manufacturer KamAZ
Family Mustang family
Crew 1 + 2 men
Payload Capacity 10 tons
Towing Capacity 12,000 kg
Note A wide variety of body types and shelters are available. Vehicle has fixtures for transportation of standard removable containers. A standard troop/cargo body has drop sides, drop tailgate and removable tarpaulin with bows.
Dimensions
Length 9.3 m
Width 2.5 m
Height 3.25 m
Weight, Combat 11.4 tons
Automotive
Engine Name KamAZ-740.50.360
Engine Type Diesel
Engine Power 360 hp
Cruising Range 1,000 km
Speed, Maximum Road 95 km/h
Speed, Average Cross INA
Speed Maximum Swim Not Amphibious
Gradient 60 %
Side Slope 40 %
Vertical Step 0.6 m
Trench 0.6 - 1.4 m
Fording Depth 1.75 m
Communications
Primary INA
Protection
Armor It is also proposed with concealed built-in internal armor
Applique Armor Available
Active Protection System No
Mine Clearing No
Self-Entrenching Blade No
NBC Protection Yes
Smoke Equipment No
IR Signature No
Details
Country of Origin Russia
Category Transportation
Land > Combat Support Vehicles > Transportation
Filter Label
K
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
9.3 m
Width
2.5 m
Height
3.25 m
Weight
11400 kg
Operators (1)
Russia
