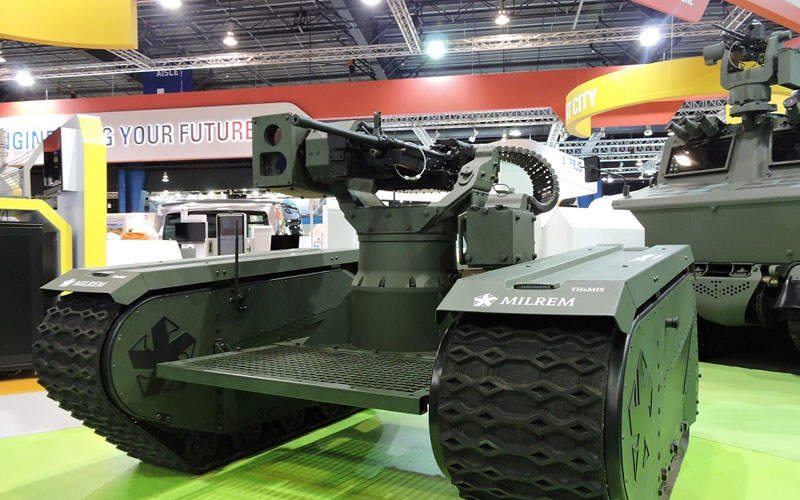

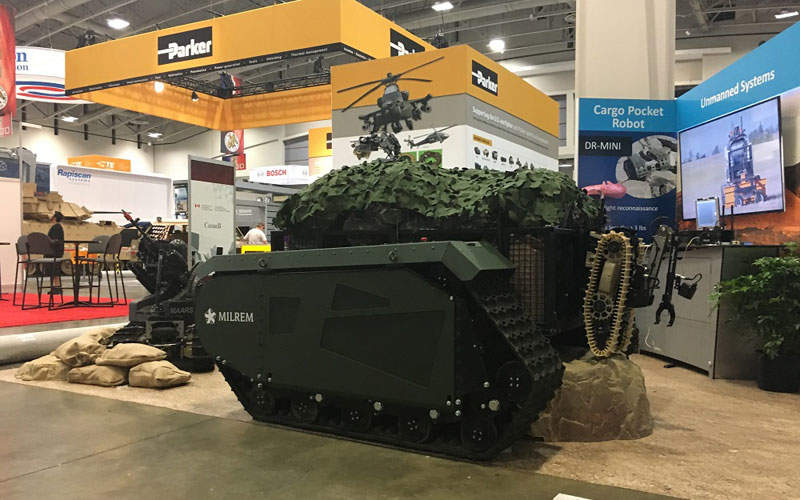

Titan American Unmanned Ground Vehicle (UGV)

Titan

Unmanned Ground Vehicle (UGV)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Titan American Unmanned Ground Vehicle (UGV)
Designation
Titan
Alternate Designation
Titan
Equipment Type
Unmanned Ground Vehicle (UGV)
Manufacturer
Milrem and QinetiQ North America
Date of Introduction
2016
Description

Titan is a first-of-its-kind modular, hybrid, unmanned ground vehicle that provides soldier safety and support for small military dismounted operations. Titan is a large Unmanned Ground Vehicle (UGV) that provides “lighten-the-load” support for small dismounted military operations. Developed by QinetiQ North America and Milrem Robotics, Titan features a multi-mission, reconfigurable platform that increases unit effectiveness while increasing soldier safety. Unlike existing UGVs, Titan is a highly modular platform that allows different superstructures to be mounted and integrated onto the middle vehicular platform for complex missions such as rescue, transport and reconnaissance. The flexibility and versatile nature of the system not only increases efficiency, it also significantly reduces life cycle costs and soldier workload. Multi-mission modular payloads High mobility / all-terrain operations Multiple controller and camera options Operable in manned or unmanned modes Open architecture Wide variety of payloads and accessories for CBRN, route clearance and integration autonomy packages Diesel/Electric hybrid for run-silent mode and squad auxiliary power Power-off-load capability

Ground Specifications
Engine Diesel-Electric Hybrid
System
Alternative Designation Titan
Type Unmanned Ground Vehicle
Manufacturer Milrem and QinetiQ North America
Crew Unmanned Ground Vehicle
Mission The vehicle is intended to save the lives of soldiers as it performs critical and hazardous tasks currently handled by war fighters in the combat zone.

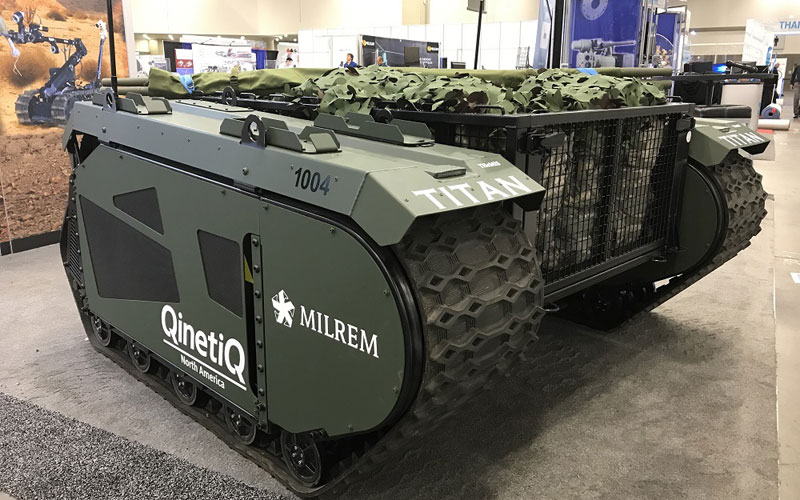

Platform The platform includes two track modules connected by a payload frame. The open architecture of the Titan UGV allows for the integration of mission equipment and systems to support a range of operations.

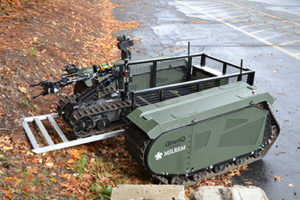

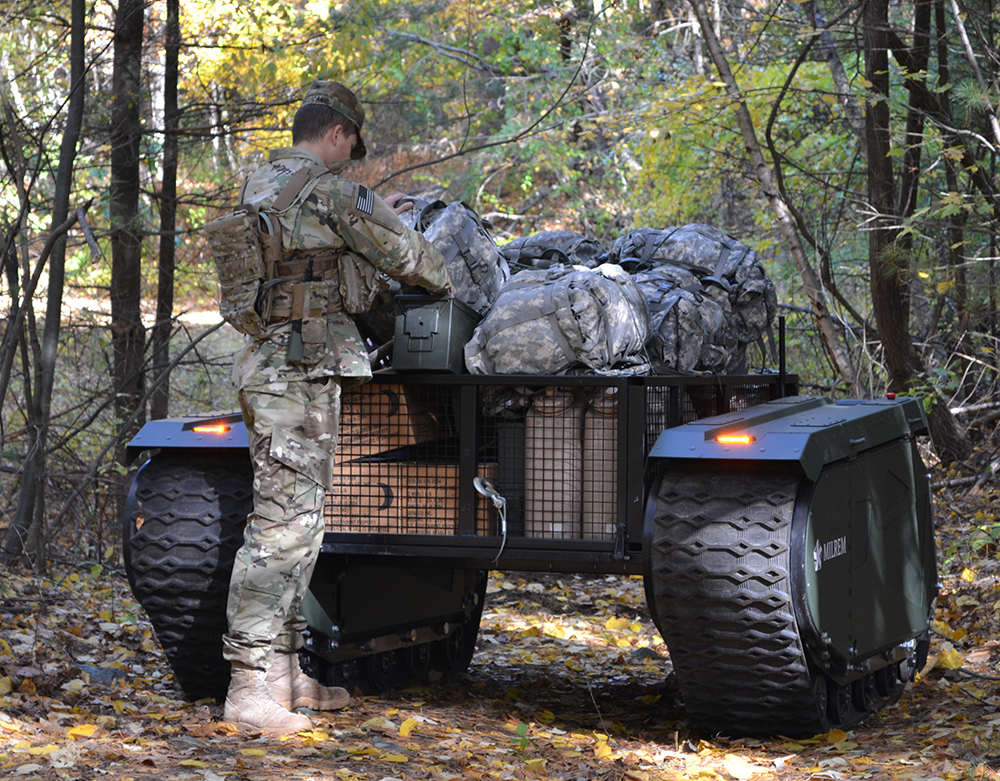

Payload Types The typical payload aboard the vehicle includes an earth-moving blade / bucket, casualty evacuation (CASEVAC) litter racks, logistics support basket and ruck mounts, anti-personnel obstacle breaching system (APOBS) mounts, counter-improvised explosive device (C-IED) roller rake mount, and C-IED sensing systems. The vehicle can also be interfaced with third party payloads such as remote weapon station (RWS), interrogation arms, reconnaissance, surveillance, and target acquisition (RSTA) systems to support combat, chemical, biological, radiological and nuclear (CBRN) defence, RSTA and route clearance missions.
Sling Load Capable Yes, The UGV can be transported by helicopters internally or as slung load.
Note The Titan UGV was preferred by the US Army for Phase 1 evaluation of the Squad Manoeuvre Equipment Transport (SMET) programme.
Dimensions
Length 2.00 m
Width 2.10 m
Height 1.01 m
Weight, Combat 907.18 kg
Payload Area Length 1.82 m
Payload Area Width 1.21 m
Maximum Payload Weight 680.38 kg
Maximum Pull Force 907.18 kg
Automotive
Engine Name INA
Engine Type Diesel-electric hybrid tracked drive modules
Engine Power INA
Generator 10kW JP8 generator
Batteries Absorbent glass mat (AGM) lead acid or lithium-ion batteries.
Maximum Range, All-Electric Run-Silent Mode 20 km
Endurance, All-Electric Run-Silent Mode 2 hours
Maximum Range, Diesel and Electric Hybrid Mode 100 km
Endurance, Diesel and Electric Hybrid Mode 72 hours
Speed, Maximum Road 24 km/h
Speed Maximum Swim Not Amphibious
Trench 762 mm
Main Weapon System
Note The typical payload aboard the vehicle includes an earth-moving blade / bucket, casualty evacuation (CASEVAC) litter racks, logistics support basket and ruck mounts, anti-personnel obstacle breaching system (APOBS) mounts, counter-improvised explosive device (C-IED) roller rake mount, and C-IED sensing systems. The vehicle can also be interfaced with third party payloads such as remote weapon station (RWS), interrogation arms, reconnaissance, surveillance, and target acquisition (RSTA) systems to support combat, chemical, biological, radiological and nuclear (CBRN) defence, RSTA and route clearance missions.
Navigation and Control
Command and Control Unit QinetiQ tactical robot controller (TRC) and robotic appliqué kit (RAK).
Tactical Robot Controller (TRC) The TRC is a single pocket system integrating a 6.5in monitor, button layout and auxiliary port. It can be easily attached to the communications pack of Titan to command and control the UGV’s operations.
Robotix Applique Kit (RAK) The RAK provides multiple optional autonomous features and allows the integration of night vision and thermal cameras, microphone and radio systems. The multiple crew-compliant radio options enable a line-of-sight (LOS) range of more than 800m.
Unmanned Mode Capable Yes
Manned Mode Capable Yes
Live Video Cameras Available
Thermal Imaging Systems Available
Protection
Armor INA
Applique Armor Avaialble
Active Protection System INA
NBC Protection No
Smoke Equipment No
Details
Country of Origin United States
Category Unmanned Ground Vehicles (UGV)
Land > Unmanned Ground Vehicles (UGV)
Filter Label
T
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
2 m
Width
2.1 m
Height
1.01 m
Weight
907.18 kg
Operators (1)
United States
