Supercam S100 Russian Unmanned Aerial Vehicle (UAV)
Supercam S100
Tactical Unmanned Aerial Vehicle (UAV)
Other
Basic Information
Name
Supercam S100 Russian Unmanned Aerial Vehicle (UAV)
Designation
Supercam S100
Alternate Designation
Supercam S100
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
Supercam Unmanned Systems Group
Date of Introduction
2020
Description

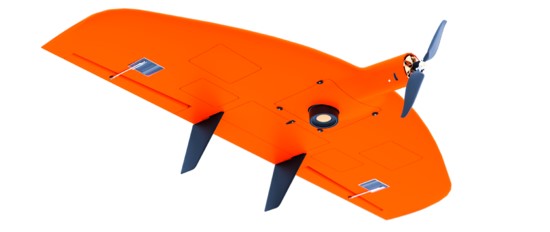

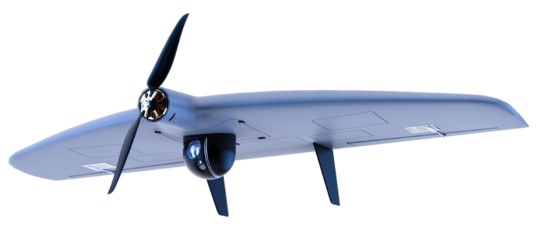

The Supercam S100 Russian Unmanned Aerial Vehicle (UAV) has a one-piece body and is designed as a flying wing. These features provide unmanned aircraft with easy transportation and quick launching even under adverse conditions. The UAV allows mounting top-class payloads, while the flight duration is about 80 minutes. The system can be used for high-resolution aerial photography, as well as for online video surveillance at any time of the day and object coordinates determination with a range of up to 25 km.
Air & Air Defense Specifications
Engine
Battery
Max Speed
120.0 km/h
Endurance
60.00 hrs
Wingspan
1.00 m
System
Alternate Designation
Supercam S100
Type
Unmanned Aerial Vehicle (UAV)
Manufacturer
Supercam Unmanned Systems Group
Autonomy
Automatic control system (ACS - UAV autopilot) provides the UAV flight at a specified altitude, the specified horizontal and vertical maneuvers performance, as well as the flight mission performance
Crew
Unmanned
Capabilities
GCS voice module (voice announcement of all commands and current changes in flight conditions, wind speed, and the flight mission performance); Possibility of the UAV control transferring from one GCS to another; UAV automatic return to the specified point; GCS operation in motion capability; UAV performs the automatic flight according to the specified course and can hover over the object. The fly-over point can be moved by the operator in real time, taking into account wind corrections or inaccuracies of the electronic map; Connection of GCS to the Internet as a web server with the full-featured remote terminal functions; Semi-automatic control can be performed with the multifunctional gamepad; 4 UAVs simultaneous operation
Radio Link Range
20 km
Video Transmission Range
20 km
Payload Options
- 20/24/42 MP photo camera with the ability to be mounted on the azimuth stabilized platform;
- Gyro-stabilized thermal imaging camera and/or video camera with 10x optical zoom, that can be combined together, and optionally enhanced with a laser target marker;
- Multispectral camera
Diagnostics
automatic self-diagnostics of the ground and onboard equipment
Deployment Time
15 min
Launching System
elastic catapult
Recovery System
with a parachute in automatic or semi-automatic mode
Operational Temperature
-40°С to +45°С
Accessories
- Video link for digital broadband transmission within a range of up to 25 km;
- Radio link of telemetry and control with the ability of FHSS operation
Dimensions
Length
INA
Wingspan
1.0 m
Height
INA
Maximum Takeoff Weight
3.5 kg
Automotive
Engine Name
INA
Engine Type
Battery
Engine Power
INA
Maximum Speed
120 km/h
Cruising Speed
85 km/h
Operational Height
150 - 1000 m
Maximum Distance
50 km
Maximum Windspeed
15 m/s
Endurance
60 min
Details
Country of Origin
Russia
Category
UAVs
Air > UAVs
Filter Label
S
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
—
Width
—
Height
—
Weight
3.5 kg
Operators (1)
Russia
