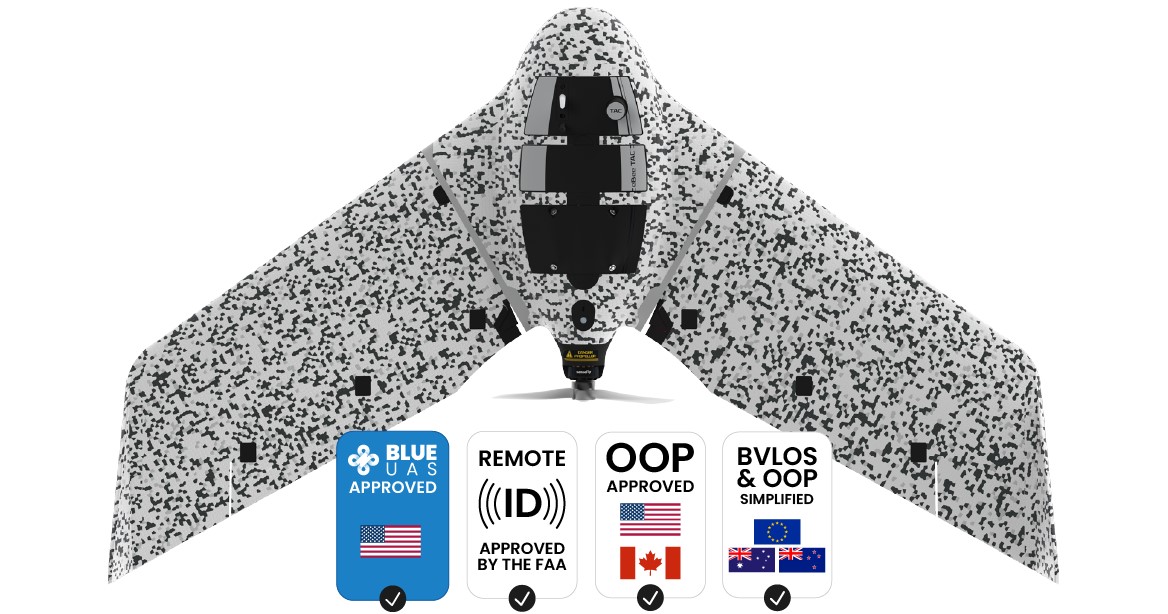

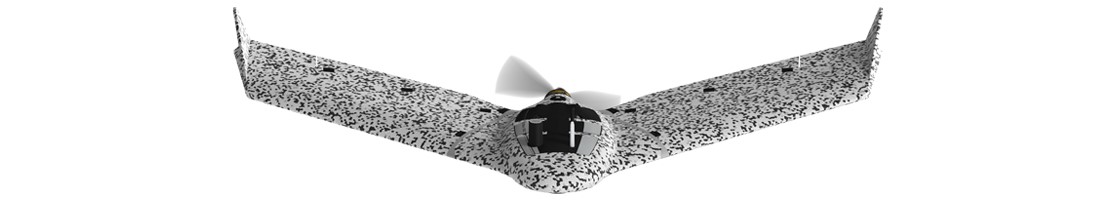

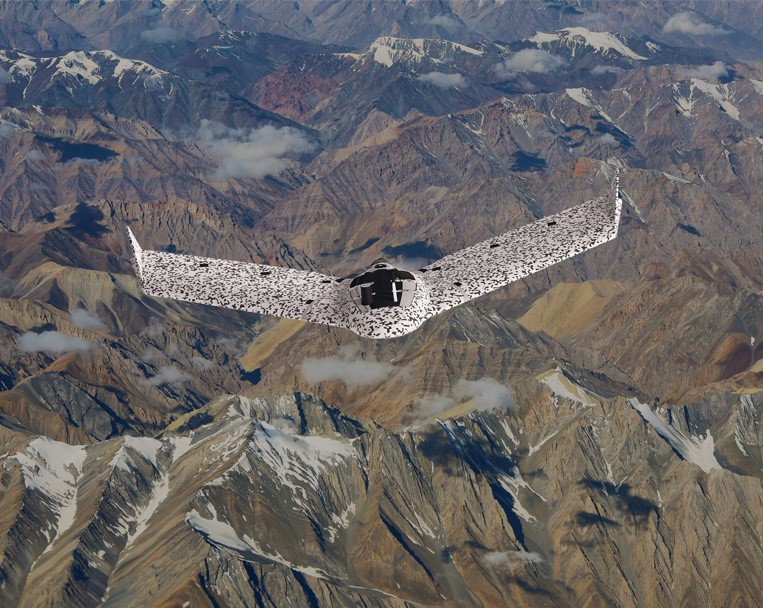

eBee TAC Swiss Unmanned Aerial Vehicle (UAV)
eBee TAC
Tactical Unmanned Aerial Vehicle (UAV)
Other
Basic Information
Name
eBee TAC Swiss Unmanned Aerial Vehicle (UAV)
Designation
eBee TAC
Alternate Designation
eBee TAC
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
AgEagle
Date of Introduction
2023
Description
The eBee TAC Swiss Unmanned Aerial Vehicle (UAV) operates in disconnected environments to provide a higher-accuracy mobile solution to map and share imagery data on rapidly-shifting environments in order to analyze and act with precision. This is a Swiss made portable solution that can be transported and maintained without requiring external support.
Air & Air Defense Specifications
Engine
Electric
Cruise Speed
40.0 km/h
Endurance
90.00 hrs
Wingspan
116.00 m
System
Alternate Designation
eBee TAC
Type
Unmanned Aerial Vehicle (UAV)
Manufacturer
AgEagle
Payload Capacity
INA
Radio Link Range
8 km
Radio Frequency
2.400 - 2.4835 GHz
Data Storage
On-board encrypted SD card
Cyber-Secure
Radio data link with AES-256 encryption;
Drone log file suppression;
Encrypted SD card;
Silent radio mission;
Low visible signature at 300 m / 984 ft AGL;
Acoustically undetectable at 300 m / 984 ft AGL;
Integrable with Google Earth Enterprise (GEEP)
3D and Thermal Mapping
eBee TAC swappable cameras allow you to collect data that can be used via the encrypted SD card for analysis and decision-making.
Camera options include RGB, 3D (patented) and thermal payloads for night flights.
MGRS Coordinates
eMotion drone management software for eBee TAC includes the Military Grid Reference System (MGRS), the geocoordinate standard used by NATO.
Landing Type
Linear landing with Steep Landing technology (16.4 ft / 5m accuracy in 35° angle cone)
Dimensions
Length
INA
Height
INA
Wingspan
116 cm
Maximum Takeoff Weight
1.6 kg
Automotive
Engine Name
INA
Engine Type
Low-noise, brushless, electri
Engine Power
INA
Cruise Speed
40-110 km/h
Maximum Range (Linear Coverage)
27.7 km/h
Maximum Range (Mission Coverage)
5 km
Endurance
90 min
Image Sources
Details
Country of Origin
Switzerland
Category
UAVs
Air > UAVs
Filter Label
E
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
—
Width
—
Height
—
Weight
1.6 kg
Operators (2)
United States
Switzerland
