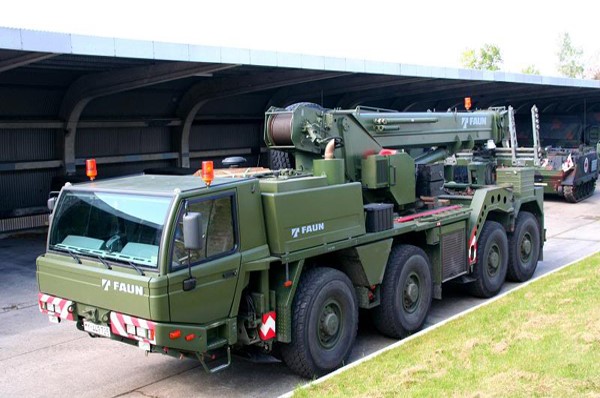

FAUN BKF 35-4 German 35 Ton Mobile Recovery Crane

FAUN BKF 35-4

35 ton Mobile Recovery Crane
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
FAUN BKF 35-4 German 35 Ton Mobile Recovery Crane
Designation
FAUN BKF 35-4
Alternate Designation
FAUN BKF 35-4
Equipment Type
35 ton Mobile Recovery Crane
Manufacturer
Faun
Date of Introduction
2012
Description

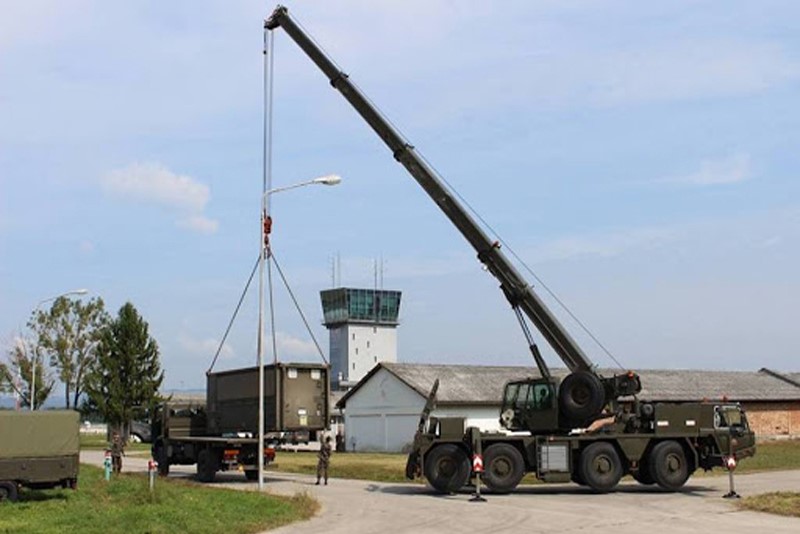

The FAUN BKF 35-4 is an unusual German military machine. It is referred in German as Bergekranfahrzeug or recovery crane. It is fitted with specialized equipment for craning, winching, towing and recovery operations. This concept of a highly mobile recovery crane is specific to the German army, as other countries do not use such vehicles and rely either on mobile cranes or recovery vehicles. The FAUN BKF 35-4 was produced in the early 2000s. Deliveries commenced between 2002-2004, depending on the source. Some sources report that only 2 of these recovery cranes were ordered. At the time these were the biggest recovery vehicles in German army service.

Ground Specifications
Crew 2
Engine Diesel (389 hp)
Max Speed 85.0 km/h
Range 800.0 km
System
Alternative Designation FAUN BKF 35-4
Type 35 ton Mobile Recovery Crane
Manufacturer Faun
Crew 2 ea
Lift Capacity 35 Tons
Boom Capacity 22.5 m
Towed Load 42 Tons
Winch Capacity 20 Tons
Dimensions
Length 11.85 m
Width 2.75 m
Height 3.8 m
Weight 32 Tons
Automotive
Engine Name Mercedes-Benz Model: INA
Engine Type Diesel
Engine Power 389 hp
Transmission INA
Maximum Speed 85 km/h
Range 800 ~ 1 000 km
Gradient 60 %
Side Slope 20 %
Vertical Step 0.6 m
Trench 1.8 ~ 2 m
Fording with deep Fording Kit 0.75 m
Protection
Hull Armor INA
Applique Armor INA
Mine Clearing No
NBC Protection INA
Smoke Equipment INA
Details
Country of Origin Germany
Category Mobility
Land > Combat Support Vehicles > Mobility
Filter Label
F
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
11.85 m
Width
2.75 m
Height
3.8 m
Weight
32000 kg
Operators (4)
United States
Germany
United Kingdom
Australia
