Pelena-6BS-F (ПЕЛЕНА-6БС-Ф) Russian Electronic Warfare System
Pelena-6BS-F
Electronic Warfare System
Other
Basic Information
Name
Pelena-6BS-F (ПЕЛЕНА-6БС-Ф) Russian Electronic Warfare System
Designation
Pelena-6BS-F
Alternate Designation
Russian: ПЕЛЕНА-6БС-Ф; Also: Unknown; (Unknown)
Equipment Type
Electronic Warfare System
Manufacturer
—
Date of Introduction
—
Description

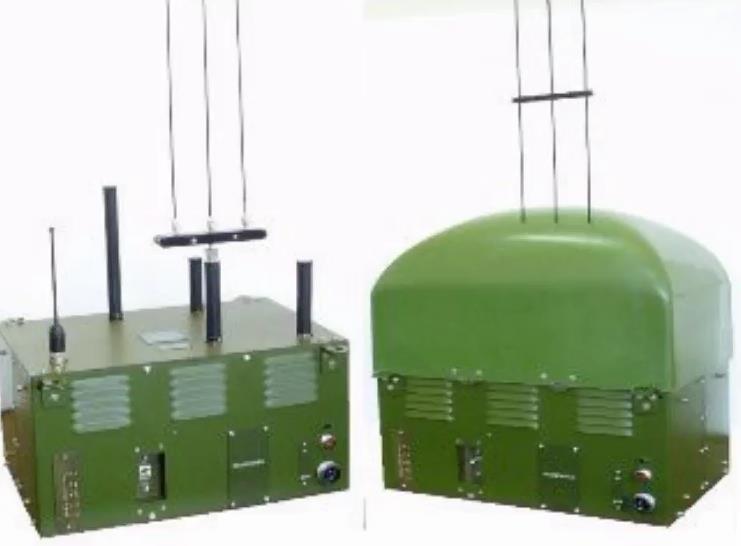

Protection of military equipment from radio-controlled explosive devices (RVD) Bandwidth/Frequencies: Operating frequencies 0.02–1 and 1.7–2 GHz Range: 20–2000 MHz Variants: Pelena-6BS-F Sfera Variants: Pelena-6BS-F Sfera Performance Specifications: • Operating modes: During movement or parked, with idling engine • Operating frequency ranges [GHz]: 0.02–1 and 1.7–2 • Total output power [W]: ≥ 70 • Supply voltage [V]: 13.8 (±1.2); 24 (+6 -4) • Power consumption [W]: ≤ 550 • Ambient temperature [Celsius]: -40 to +55 • Atmosphere pressure [mm Hg]: 650–800 • Transmitter Dimensions [m]: .45x.38x.53 Source: COGINT Analytic Insight Report - Russian EW Systems, 7 June 2023 (UNCLASSIFIED)
Details
Country of Origin
Russia
Category
Land Based Electronic Warfare (EW) Systems
Land > Land Based Electronic Warfare (EW) Systems
Classification
Domain
Ground
Equipment Status
Active
Operators (1)
Russia
