THeMIS Cargo Estonian Tracked Unmanned Ground Vehicle (UGV)
THeMIS (Tracked Hybrid Modular Infantry System)
Unmanned Ground Vehicle (UGV)
Other
Basic Information
Name
THeMIS Cargo Estonian Tracked Unmanned Ground Vehicle (UGV)
Designation
THeMIS (Tracked Hybrid Modular Infantry System)
Alternate Designation
THeMIS (Tracked Hybrid Modular Infantry System)
Equipment Type
Unmanned Ground Vehicle (UGV)
Manufacturer
Milrem Robotics
Date of Introduction
2015
Description

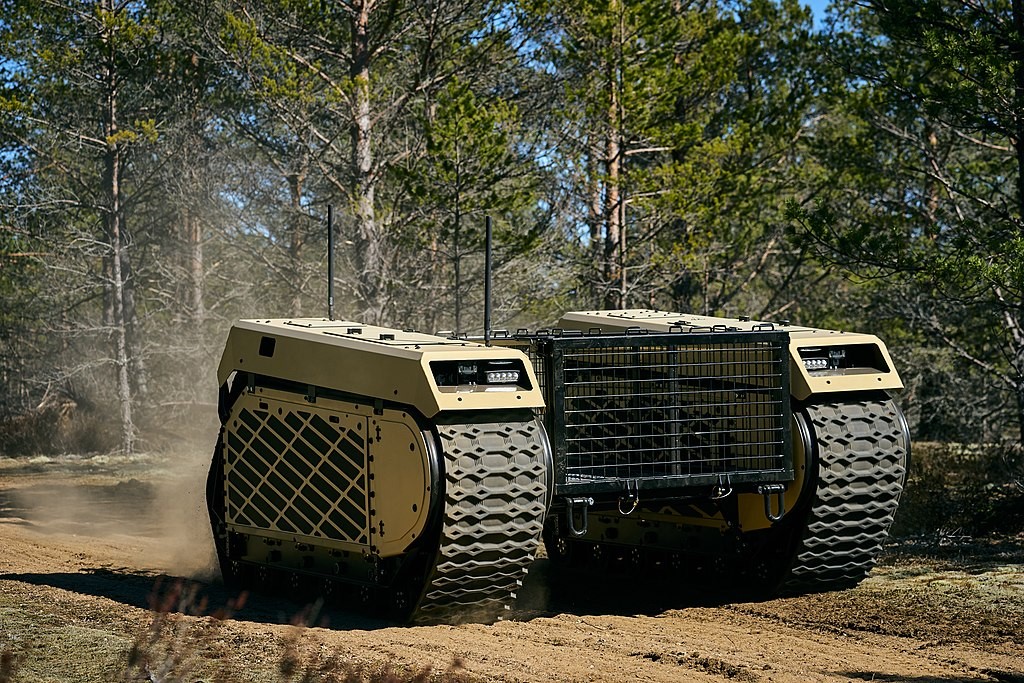

The THeMIS Estonian Tracked Unmanned Ground Vehicle (UGV) is a multi-role unmanned ground vehicle (UGV) intended to reduce the number of troops on the battlefield. THeMIS’ open architecture enables it to be rapidly configured from having a transport function to being weaponized, performing ordnance disposal, or supporting intelligence operations according to the nature of the mission.
Ground Specifications
Engine
Hybrid
Max Speed
20.0 km/h
Range
1.5 km
Variants
THeMIS Cargo Mortar carrier
The THeMIS Mortar carrier has been adjusted to accommodate a mortar up to 81 mm. The Cargo platform is equipped with a specially designed suspension system for safe transportation and utilization of the mortar, extra equipment and ammunition, making it rapidly deployable on harsh terrain. The main purpose of this system is to enable logistical support and indirect fire for maneuver forces.
THeMIS Cargo CASEVAC
The purpose of the CASEVAC platform is to provide rapid evacuation for urgent casualties from the point of injury to higher-level medical facilities. It reduces the need for manpower usually used for casualty evacuation. The vehicle facilitates most NATO stretchers used in the armed forces.
System
Alternative Designation
THeMIS (Tracked Hybrid Modular Infantry System)
Type
Unmanned Ground Vehicle (UGV)
Manufacturer
Milrem Robotics
Configuration
Tracked
Crew
Unmanned
Rated Payload Weight
750 kg
Maximum Payload Weight
1,200 kg
Sensors
LiDARs
Cameras
IR (MIL-STD-810G), Thermal, HDR
Lights
LED, IR
Dimensions
Length
240 cm
Width
200 cm
Height
115 cm
Weight, Combat
1,630 kg
Automotive
Engine Name
INA
Engine Type
Hybrid Diesel
Engine Power Options
Battery Pack, Lead acid or Li-ion; Diesel engine & electric generator
Maximum Range
1.5 km (Line of Sight Control Range)
Maximum Speed
20 km/h
Towing Speed
80 km/h
Amphibious
No
Gradient
60%
Side Slope
30%
Ground Clearance
60 cm
Fording
61 cm
Gap Crossing
90 cm
Pulling Force
15 000 N
Hybrid Run Time
15 hours
Electric Run Time
1.5 hours
Communications
IP Radio
4W, customizable MIMO Mesh
Encryption
AES256
Frequency Hopping
Supported
Main Weapon System
Note

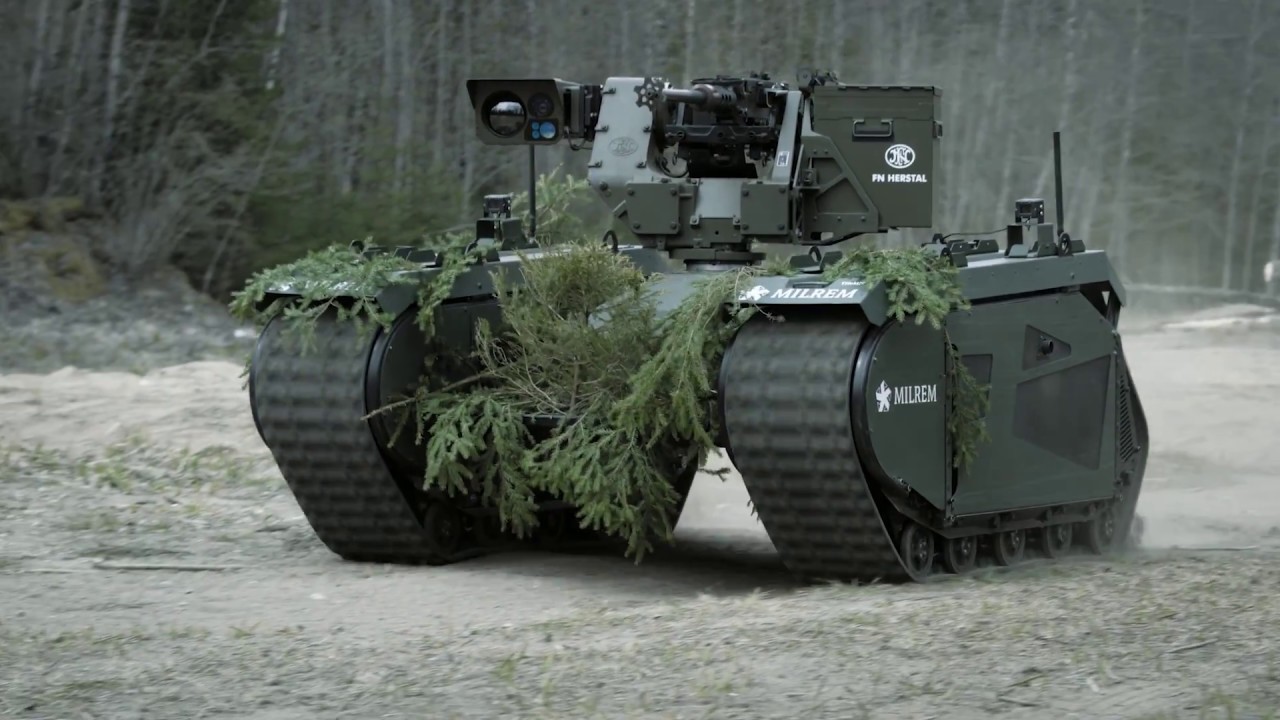

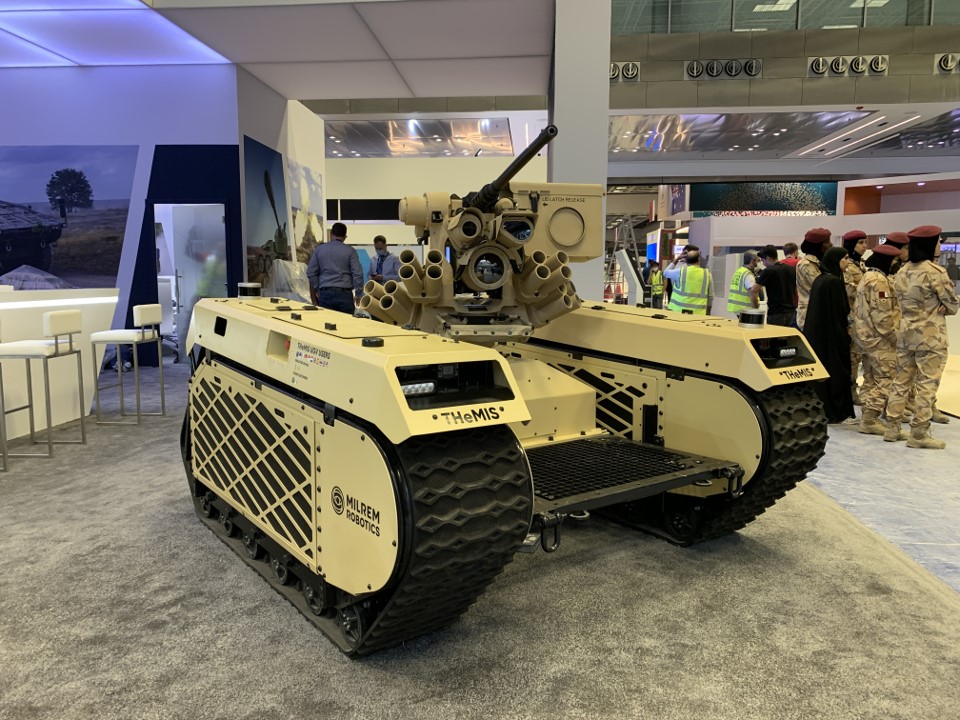

The THeMIS Cargo Estonian Tracked Unmanned Ground Vehicle (UGV) can be equipped with a variety of small arms and mortar systems.
Protection
Armor
Armor up to STANAG 4569 level 3
Applique Armor
Available
NBC Protection
No
Smoke Equipment
Available
Details
Country of Origin
Estonia
Category
Unmanned Ground Vehicles (UGV)
Land > Unmanned Ground Vehicles (UGV)
Filter Label
T
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
2.4 m
Width
2 m
Height
1.15 m
Weight
1630 kg
Operators (10)
United States
France
Germany
United Kingdom
Ukraine
India
Spain
Estonia
Netherlands
Norway
