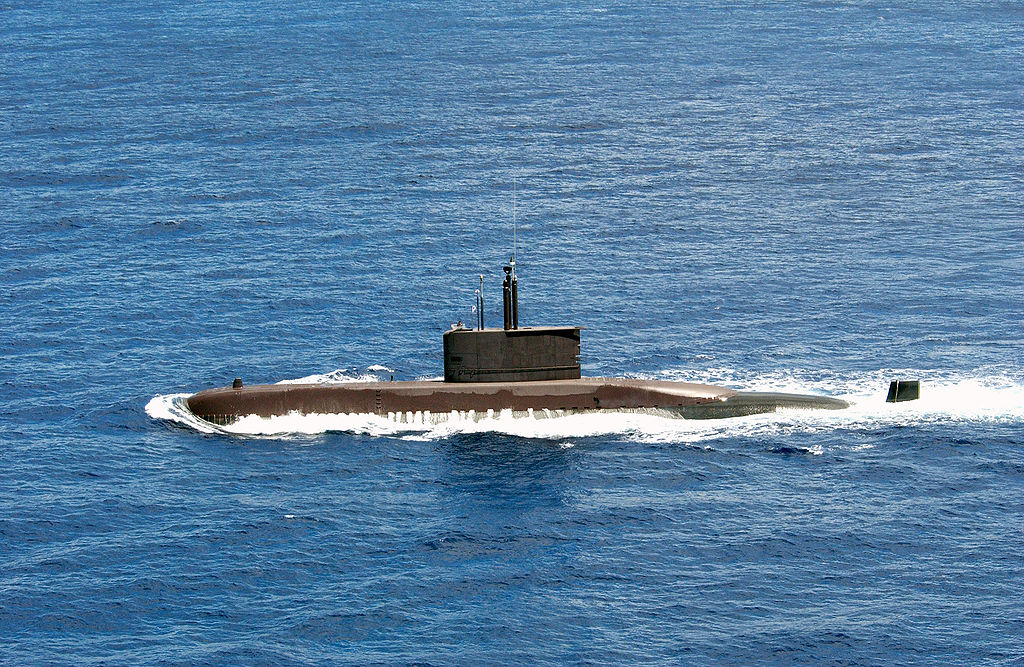

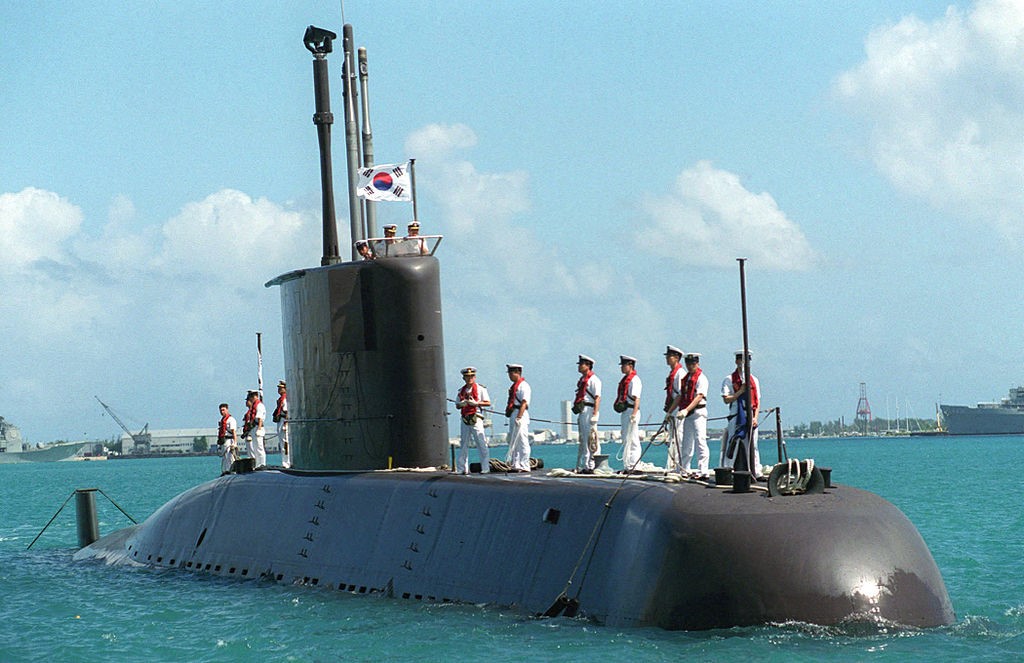

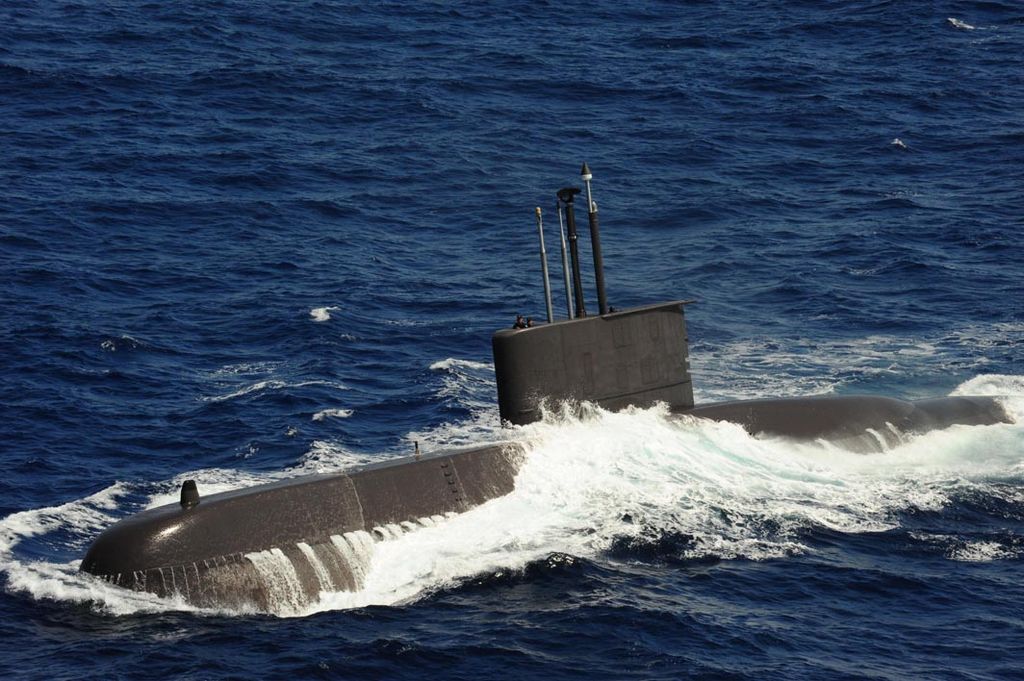

Jang Bogo Class South Korean Diesel-Electric Attack Submarine

Jang Bogo Class

Diesel-Electric Submarine
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Jang Bogo Class South Korean Diesel-Electric Attack Submarine
Designation
Jang Bogo Class
Alternate Designation
Jang Bogo Class
Equipment Type
Diesel-Electric Submarine
Manufacturer
Date of Introduction
1993
Description

The Jang Bogo-class submarine is a variant of the Type 209 diesel-electric attack submarine initially developed by Howaldtswerke-Deutsche Werft (HDW) of Germany, intended for service with the South Korean Navy and Indonesian Navy. A Daewoo (DSME)-upgraded model of the Jang Bogo class Type 209 is being independently exported by Korea to Indonesia in 2012, after a series of heavy competitions from Russian, French, and German-Turkish consortiums including from Germany's original Type 209. The variant is being considered for possible purchase by Thailand as well, as both newly built and second-hand options. The class is named for ancient Korean maritime figure Jang Bogo.

Naval & Littoral Specifications
Crew 36
Beam 6.50 m
Draft 6.20 m
Variants
Jang Bogo Commissioned: 1993 Status: Active
Lee Chun Commissioned: 1994 Status: Active
Choe Museon Commissioned: 1995 Status: Active
Park Wi Commissioned: 1996 Status: Active
Lee Jongmoo Commissioned: 1997 Status: Active
Jung Woon Commissioned: 1998 Status: Active
Yi Sun-sin Commissioned: 2000 Status: Active
Na Dae-yong Commissioned: 2000 Status: Active
Yi Eokgi Commissioned: 2001 Status: Active
System
Alternative Designation Jang Bogo Class
Type Diesel-Electric Attack Submarine
Builder Howaldtswerke-Deutsche Werft Daewoo Shipbuilding & Marine Engineering
Crew 36
Dimensions
Length 64.4 m
Beam 6.5 m
Draft 6.2 m
Displacement, Standard 1,810 tons (submerged)
Propulsion System
Engine Name 4 x MTU Type 8V396 SE
Electric Motor Name 1 x Siemens electric motor
Engine Type Diesel-Electric
Engine Power 4,500 kW (6,100 shp)
Maximum Speed, Submerged 21 km/h (11.5 knots)
Maximum Speed, Submerged 42 km/h (22.5 kn)
Maximum Range, Surfaced 20,000 km (11,000 nautical miles) at 19 km/h (10 kn)
Maximum Range, Snorkeling 15,000 km (8,000 nmi) at 19 km/h (10 kn) snorkeling
Maximum Range, Submerged 740 km (400 nmi) at 7 km/h (4 kn) submerged
Endurance 50 Days
Armament
Note 8 × 21-inch (533 mm) torpedo tubes, 14 x torpedoes; optional UGM-84 Harpoon integration
Protection
Active Protection System INA
Countermeasures INA
NBC Water Washdown System INA
Details
Country of Origin South Korea
Category Submarines
Naval > Submarines
Filter Label
J
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
64.4 m
Width
Height
Weight
Operators (1)
South Korea
