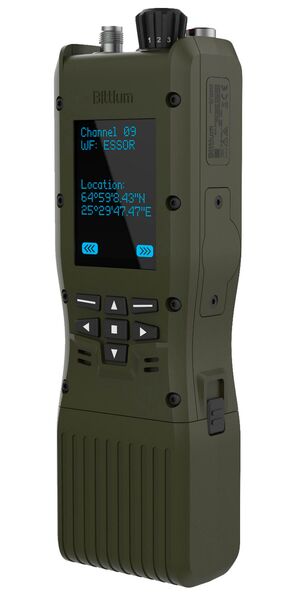

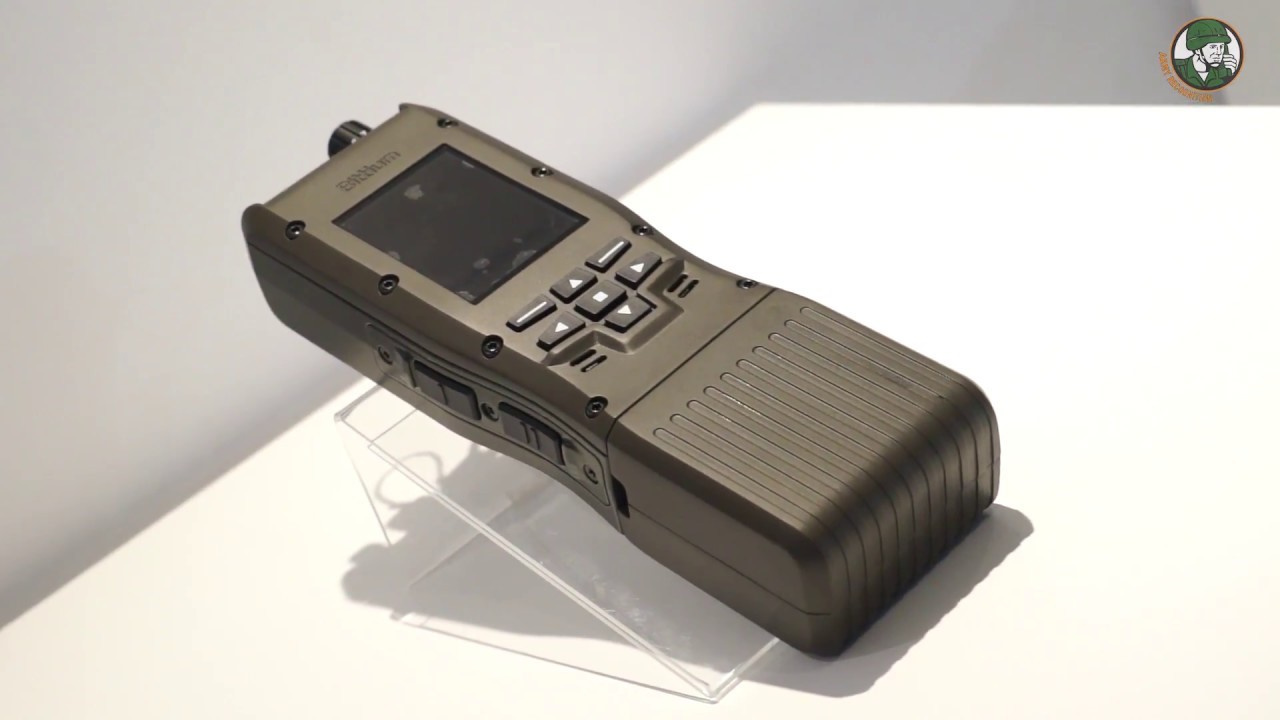

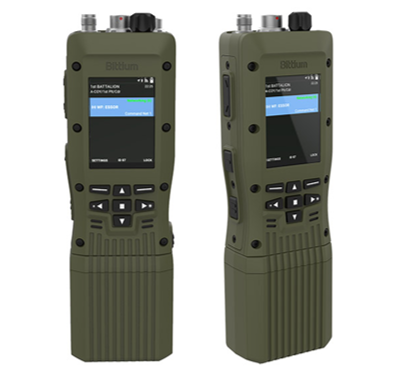

Bittium Tough SDR Finnish Handheld VHF/UHF Software Defined Radio (SDR)

Bittium Tough SDR

Handheld VHF/UHF Software Defined Radio (SDR)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Bittium Tough SDR Finnish Handheld VHF/UHF Software Defined Radio (SDR)
Designation
Bittium Tough SDR
Alternate Designation
Bittium Tough SDR
Equipment Type
Handheld VHF/UHF Software Defined Radio (SDR)
Manufacturer
Date of Introduction
2019
Description

The Bittium Tough SDR Finish Handheld VHF/UHF Software Defined Radio (SDR) is the next generation software-defined tactical radio for dismounted soldiers, such as squad or platoon leaders. With the radio, it is possible to bring broadband data transfer and voice to mobile troops across the battlefield. This improves the performance and the effectiveness of the tactical troops, and leading the troops is easier based on up-to-date situational awareness and more reliable connections. With Bittium Tough SDR Handheld troops can communicate securely over narrowband and wideband waveforms. The radio can flexibly use the best-performing waveform considering the conditions and the mission. The uniquely wide range of frequency bands in the radios improves combat survivability. Using several waveforms improves compatibility and enables operations on different levels and missions. Also, legacy and national proprietary waveforms can be seamlessly ported to the radio with national COMSEC and TRANSEC. The Tough SDR radios provide a uniquely wide frequency range, 30-2500 MHz, across several frequency bands. Together with flexible configuration options and routing networks, even thousands of radios in one network are supported. Connectivity Across the Battlefield The Handheld radio is compatible with Bittium Tough SDR Vehicular™, which belongs to the same product family, and Bittium Tactical Wireless IP Network™ (TAC WIN) system. With the Tough SDR radios, the TAC WIN system, and the related waveforms, it is possible to bring broadband data and voice to all mobile troops starting from brigade level and all the way across the battlefield.

Ground Specifications
Crew 1
System
Alternative Designation Bittium Tough SDR
Type Handheld VHF/UHF Software Defined Radio (SDR)
Crew 1 ea
Frequency The Tough SDR radios provide a uniquely wide frequency range, 30-2500 MHz, across several frequency bands.
Frequency Agility Uniquely wide frequency range providing frequency agility and less interference
Several Routing Networks Support for several routing networks and even thousands of radios in one network
Support for Different Waveforms Support for several different waveforms with seamless porting also for legacy and national proprietary waveforms. Bittium Narrowband Waveform (25 kHz); Bittium TAC WIN Waveform (5/10 MHz) with data throughput up to 25 Mbps; ESSOR High Data Rate Waveform (1.25 MHz) with data throughput up to 1 Mbps at the radio link; Supports porting of legacy and national proprietary waveforms
Flexible Integration of Applications Application sandbox for flexible integration of C2 applications, such as BMS and blue force tracking
Easy Operation Best-in-class user interface and usability for easy operation
Secure Access to information security implementation and certification both nationally and internationally
Channel Bandwidth 25 kHz to 10 MHz
Interfaces Antenna: Antenna port (TNC) for variety of antenna options; Audio: Analog audio interface port to connect e.g. headset and external PTT device. Interface includes additional HMI USB support; Data: I/O interface with combined 10/100M Ethernet and USB 2.0 (Device and Host mode); GPS; WLAN 802.11 b/g/n; BT 4.0
Monitoring & Control (M&C) Web user interface for device configuration; Remote software update; Software upgrade through web-based management
Display Transflective TFT LCD (320 x 426)
Battery 70 Wh rechargeable Li-ion battery
Operating Temperature -20° to +55°C (radio with battery); -40° to +55°C (radio with remote battery pack)
Storage Temperature -40° to+ 85°C (radio); -40° to+ 70°C (radio with battery)
Environment MIL-STD-810G w/CHANGE1
EMC MIL-STD-461G
Output Power 5 W
Power Supply 8.5–12.6 V DC with 10.8 V DC nominal operating voltage
Dimensions
Length 246 mm
Width 79 mm
Height 48 mm
Weight, Combat 0.95 kg
Details
Country of Origin Finland
Category Multiband Radios
Land > Communication Equipment > Multiband Radios
Filter Label
B
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
0.25 m
Width
0.08 m
Height
0.05 m
Weight
0.95 kg
Operators (1)
Finland
