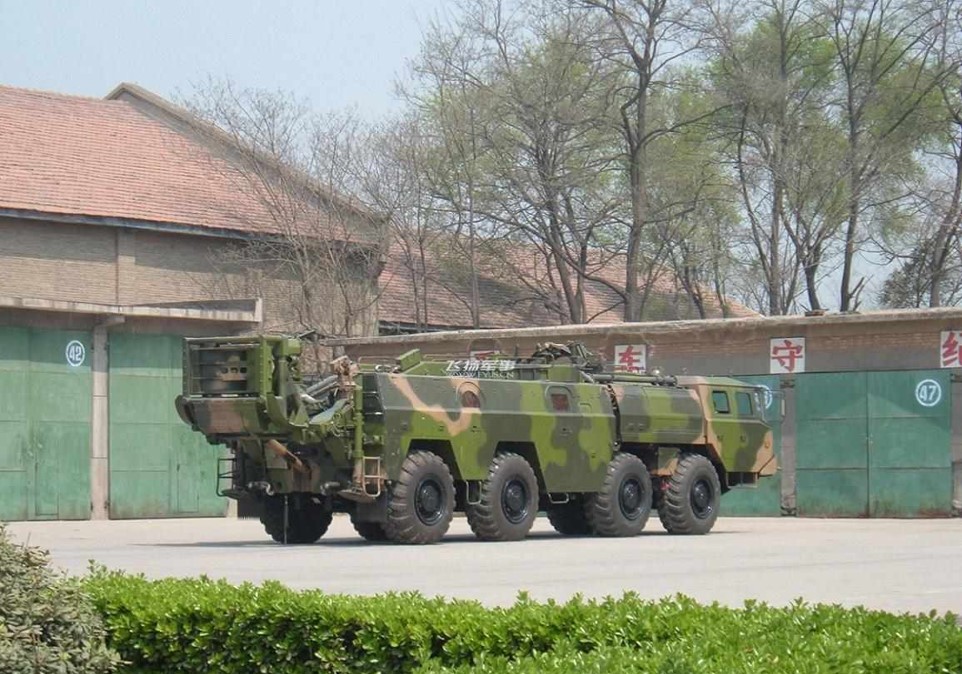

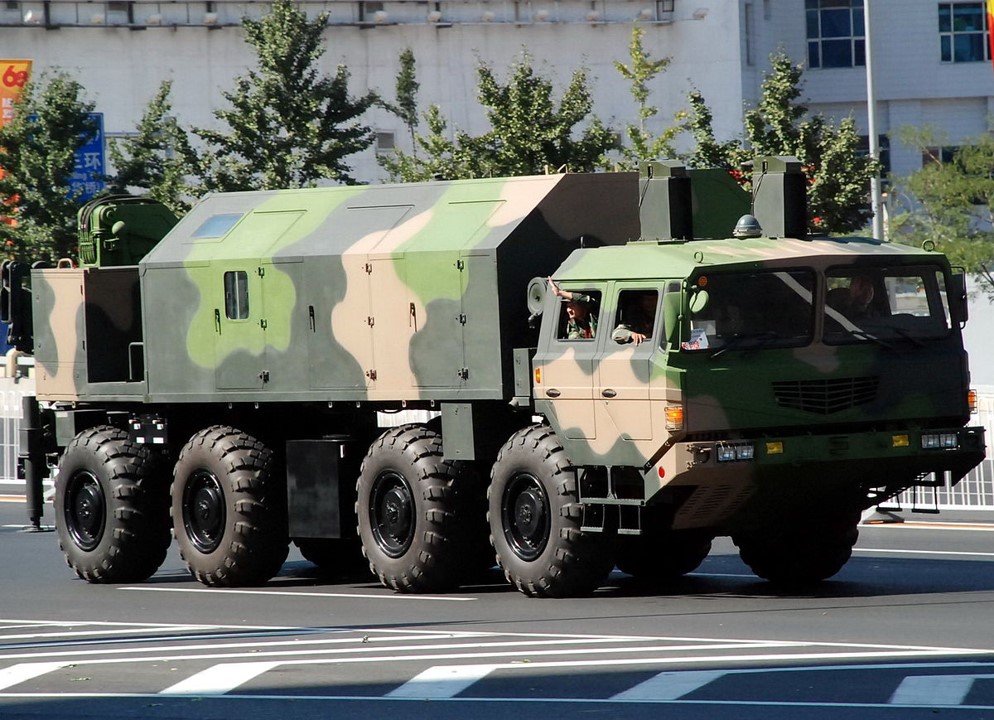

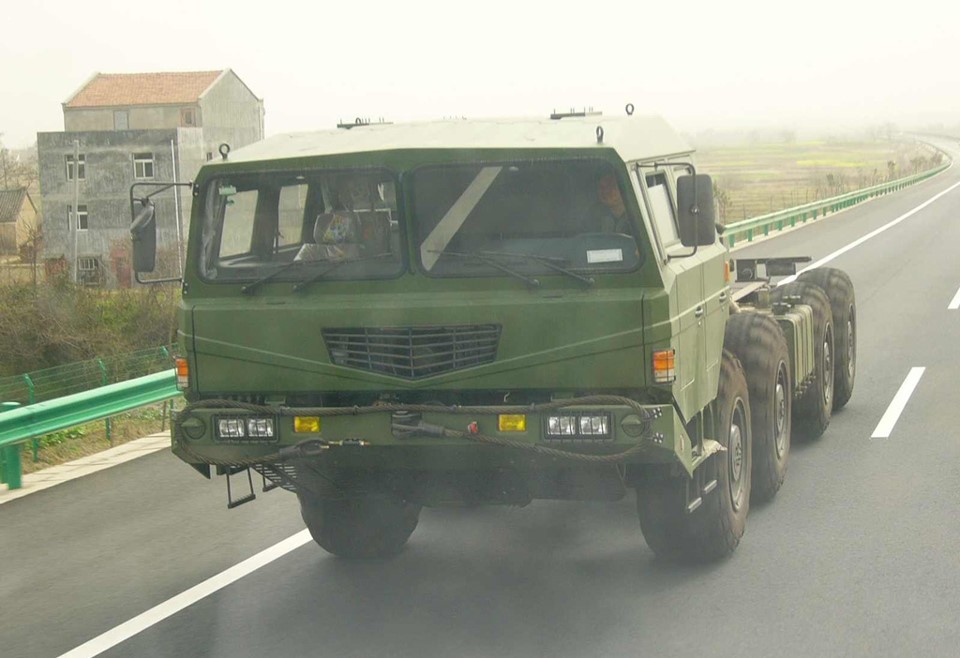

WS2400 Chinese 8x8 Special Wheeled Chassis
WS2400
Special Wheeled Chassis
Other
Basic Information
Name
WS2400 Chinese 8x8 Special Wheeled Chassis
Designation
WS2400
Alternate Designation
WS2400
Equipment Type
Special Wheeled Chassis
Manufacturer
Wanshan Special Vehicle
Date of Introduction
2017
Description
The WS2400 Chinese 8x8 Special Wheeled Chassis is a heavy-duty high mobility chassis. This special wheeled chassis was designed to carry ballistic missiles and other weapon systems. It is widely used by the Chinese armed forces.
Ground Specifications
Crew
1
Mobility Type
Wheeled (8x8)
Engine
Diesel (517 hp)
Max Speed
75.0 km/h
Range
650.0 km
Variants
Wanshan WS2300
6x6 special wheeled chassis.
Wanshan WS2500
10x8 or 10x10 special wheeled chassis.
Wanshan WS2600
10x8 special wheeled chassis.
System
Alternative Designation
WS2400
Type
Special Wheeled Chassis
Manufacturer
Wanshan Special Vehicle
Configuration
8x8
Crew
1 ea
Passengers
7 ea
Payload Capacity
22 tons
Dimensions
Length
11.44 m
Width
3.05 m
Height
2.97 m
Weight, Combat
19 tons
Automotive
Engine Name
INA
Engine Type
Diesel
Engine Power
517 hp
Maximum Range
650 km
Maximum Speed
75 km/h
Amphibious
No
Gradient
60%
Side Slope
30%
Vertical Step
0.5 m
Trench
2.5 m
Fording
1.2 m
Protection
Armor
INA
Applique Armor
No
NBC Protection
INA
Smoke Equipment
No
Details
Country of Origin
China
Category
Transportation
Land > Combat Support Vehicles > Transportation
Filter Label
W
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
11.44 m
Width
3.05 m
Height
2.97 m
Weight
19000 kg
Operators (1)
China
