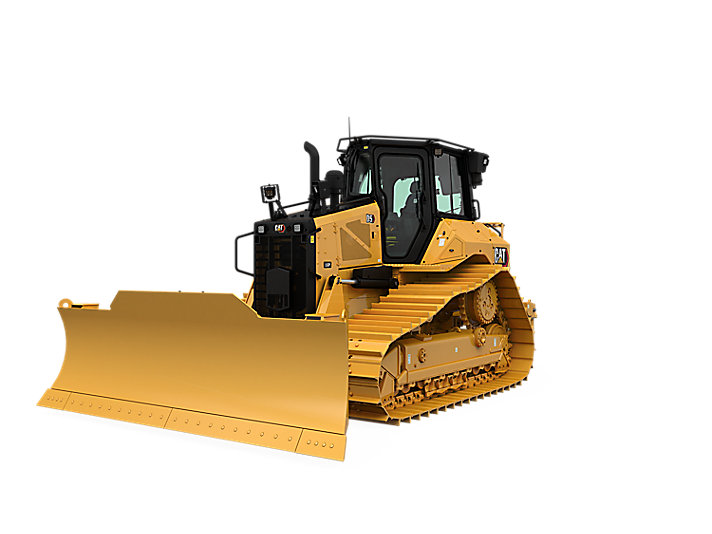

Caterpillar D5 American Tracked Bulldozer
D5
Track Bulldozer
Other
Basic Information
Name
Caterpillar D5 American Tracked Bulldozer
Designation
D5
Alternate Designation
D5; D5K
Equipment Type
Track Bulldozer
Manufacturer
Caterpillar
Date of Introduction
2018
Description
Caterpillar is an American international company that specializes in industrial and farming equipment, including tractors, bulldozers and wheel loaders. The company started in 1925, and it is headquartered in Peoria, Illinois. One of its products is the Caterpillar D5 Crawler Tractor, which is a type of bulldozer. A bulldozer comes with a wide metal plate that you can use to push material around. Buy Caterpillar equipment from authorized dealers, or rent one for a period time.
Ground Specifications
Crew
1
Engine
Diesel
System
Alternative Designation
D5; D5K
Type
Track Bulldozer
Manufacturer
Caterpillar
Crew
1 ea
Dimensions
Length with Blade
4555 mm
Length without Blade
3544 mm
Width Over Tracks
2330 mm
Height to Top of the Cab
3002 mm
Length of Track on Ground
2388 mm
Ground Clearance
385 mm
Track Gauge
1770 mm
Standard She Size
560 mm
Number of SHoes per Side
41
Ground Contact Area
2.68 m2
Number of Track Rollers per Side
7
Ground Pressure
42.89 kPa
Operating Weight
11,700 kg
Standard Blade Width
3077 mm
Standard Blade Height
1109 mm
Standard Blade Capacity
2.6 m3
Standard Blade Cutting Depth
441 mm
Automotive
Engine Name
3116T
Engine Type
Diesel
Gross Power
90.3kw
Net Power
82.1kw
Power Measured
2100 rpm
Aspiration
Turbocharged
Fuel Capacity
218L
Transmission
INA
Max Speed, Forward
10 km/h
Max Speed, Reverse
12.1 km/h
Protection
Hull Armor
INA
Applique Armor
No
Mine Clearing
INA
Self-Entrenching Blade
Yes
NBC Protection
INA
Smoke Equipment
No
Image Sources
Details
Country of Origin
United States
Category
Land
Land
Filter Label
C
Classification
Domain
Ground
Equipment Status
Active
Operators (2)
United States
Australia
