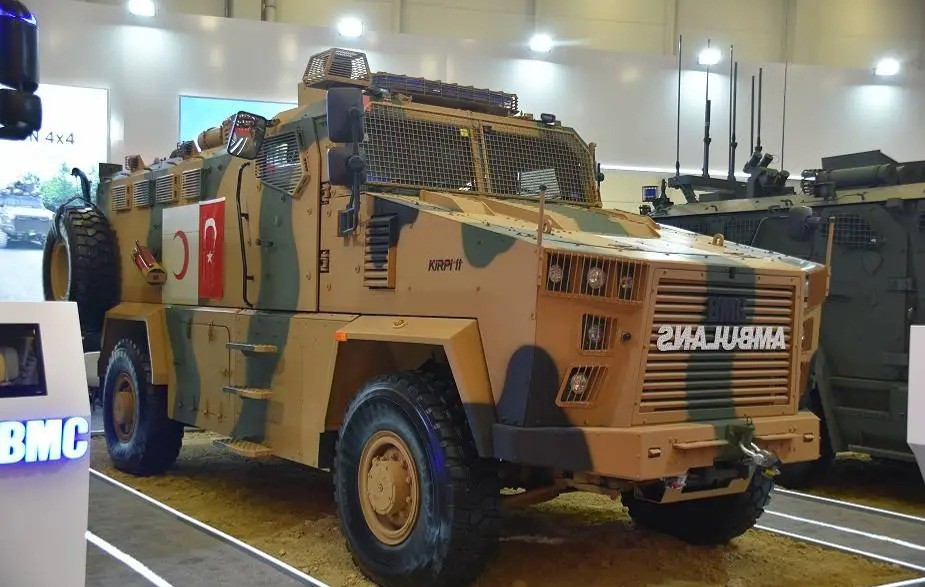

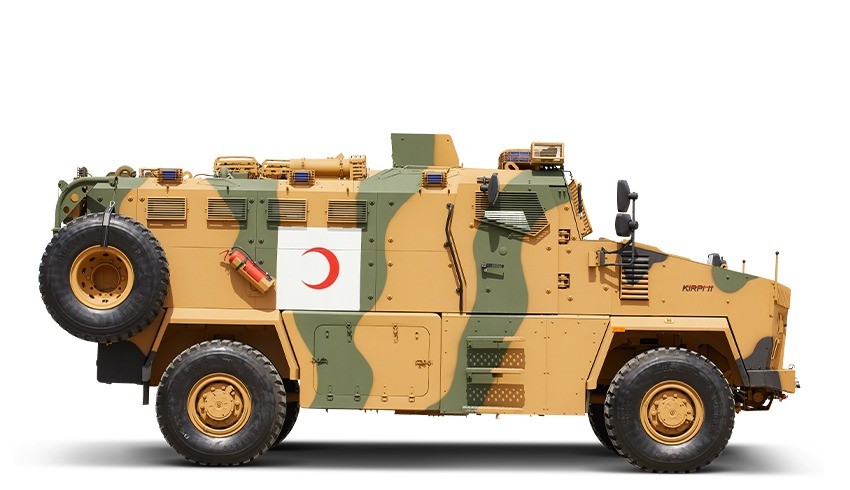

Kirpi II Ambulance Turkish 4x4 Medical Support Vehicle

Kirpi Ambulance

Medical Support Vehicle
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Kirpi II Ambulance Turkish 4x4 Medical Support Vehicle
Designation
Kirpi Ambulance
Alternate Designation
Kirpi Ambulance
Equipment Type
Medical Support Vehicle
Manufacturer
BMC
Date of Introduction
2017
Description

The Kirpi II Ambulance Turkish 4x4 Medical Support Vehicle is equipped with a 4x4 independent suspension system and Axletech ISAS 4500 axes, designed to enhance grip and passenger comfort, setting a new standard in its class. The vehicle offers the option of differential lock on both front and rear axles, enhancing its off-road capabilities. Safety features of the Kirpi II Ambulance include a monocoque-type armored cabin, armored glasses, shock-absorbing seats, a weapon station, and an emergency exit hatch, all aimed at ensuring the protection of its occupants. The ambulance meets STANAG 4569 standards, incorporating ballistic, mine, and IED protection to ensure the safety of those on board, particularly in challenging environments. Additionally, the inclusion of a Spall Liner in the hull further enhances its defensive capabilities. The V-shape monocoque design provides additional protection against potential threats, and the CBRN protection system offers increased security in hazardous situations. In addition to its protection measures, the Kirpi II Ambulance is equipped with various mission-specific integrated equipment, including a CBRN protection system, shooting range target detection system, automatic fire extinguishing system, intercom, jammer system, and more. It also features a specially designed explosive material reconnaissance and destruction robot arm version.

Ground Specifications
Crew 3
Mobility Type Wheeled (4x4)
Engine Turbocharged Diesel (375 hp)
NBC Protection Yes
Max Speed 105.0 km/h
Range 800.0 km
System
Alternative Designation Kirpi Ambulance
Type Medical Support Vehicle
Manufacturer BMC
Configuration 4x4
Crew 3 ( 1 x Driver and 2 x Doctors) ea
Passengers The internal layout offers the capacity for two litter patients, and two ambulatory patients.
Dimensions
Length 7925 mm
Width 2,640 mm
Height 3,765 mm
Weight, Combat 26,000 kg
Automotive
Engine Name Cummins ISL9E3 375 Euro-3
Engine Type Turbo, Intercooler, Diesel
Engine Power 375 PS (275 kW) @ 2100 rpm
Maximum Torque 1550 Nm @ 1100-1400 rpm
Maximum Range 800 km
Maximum Speed 105 km/h
Amphibious No
Gradient 60%
Side Slope 30%
Vertical Step INA
Angle of Approach 35°
Angle of Departure 66°
Trench INA
Fording 1,200 mm
Ground Clearance 400 mm
Ambulance Equipment
Note Stretchers; First Aid Supplies: (Basic treatment kit, recovery bag with oxygen tank); Medical Devices: (Cardiac monitor / Defibrillator, mobile mechanical ventilators, portable blood pressure monitor, wall-mounted blood pressure monitor); Stabilizers: (Spine board, splint set, rescue vest, neck collar set) General treatment rules (Diagnostic set, body bags, foot protector, inflammation kit, emotional vaccine carrying box); Oxygen System: Disposable Materials (Oxygen supplies, nasal oxygen cannula, suction catheter, serum set, syringe etc.) Announcement System
Protection
Armor The V-shape underbody and monocoque allow it to protect the personnel inside from land mines and improvised explosive devices (IEDs). STANAG 4569; Ballistic Protection; Mine Protection; IED Protection.
Applique Armor Available
NBC Protection Yes
Smoke Equipment Yes
Details
Country of Origin Turkey
Category Medical Vehicles
Land > Combat Support Vehicles > Medical Vehicles
Filter Label
K
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
7.93 m
Width
2.64 m
Height
3.77 m
Weight
26000 kg
Operators (1)
Turkey
