M80 Zolja Yugoslavian 64mm Rocket Launcher
M80 Zolja
Rocket Launcher
Other
Basic Information
Name
M80 Zolja Yugoslavian 64mm Rocket Launcher
Designation
M80 Zolja
Alternate Designation
M80 Zolja
Equipment Type
Rocket Launcher
Manufacturer
Sloboda
Date of Introduction
1982
Description
The M80 Zolja Yugoslavian 64mm Rocket Launcher is a late Cold War era rocket launcher of Yugoslav origin. It was developed to supplement the RB M57 reusable rocket launcher. The official nickname Zolja translates to "wasp".
Ground Specifications
Main Weapon
64mm Rocket Launcher
Range
0.2 km
System
Alternate Designation
M80 Zolja
Type
Rocket Launcher
Caliber
64 mm
Manufacturer
Sloboda
Design

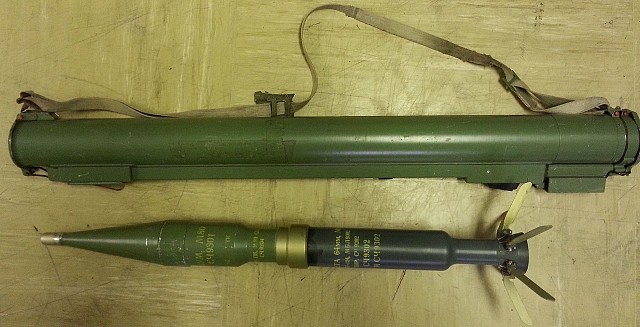

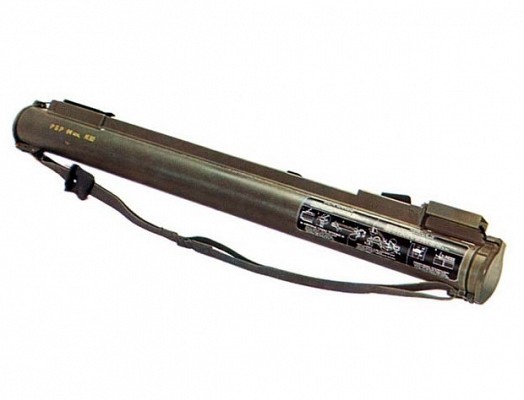

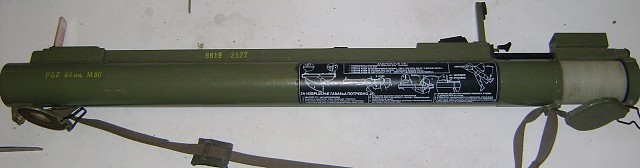

The design of the RBR M80 is very similar to the American M72 LAW and Soviet RPG-18. It is a pre-packaged launcher with extensible launch tube. Before firing the launch tube must be extended and the sights are flipped up into position. After firing the launch tube is disposed.
Warhead Type
Single HEAT
Warhead Weight
INA
Velocity
190 m/s
Firing Range
20 to 220 m
Penetration
300 mm RHA
Sights
Flip up mechanical sights
Dimensions
Length, Transport Configuration
0.86 m
Length, Launch Tube Extended
1.2 m
Diameter
64 mm
Weight
3.1 kg including 1.42 kg rocket
Details
Country of Origin
Other
Category
Rocket Launchers
Land > Infantry Weapons > Rocket Launchers
Filter Label
M
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
—
Width
0.06 m
Height
—
Weight
3.1 kg
Operators (7)
Ukraine
Serbia
Georgia
Indonesia
Kosovo
Montenegro
North Macedonia
