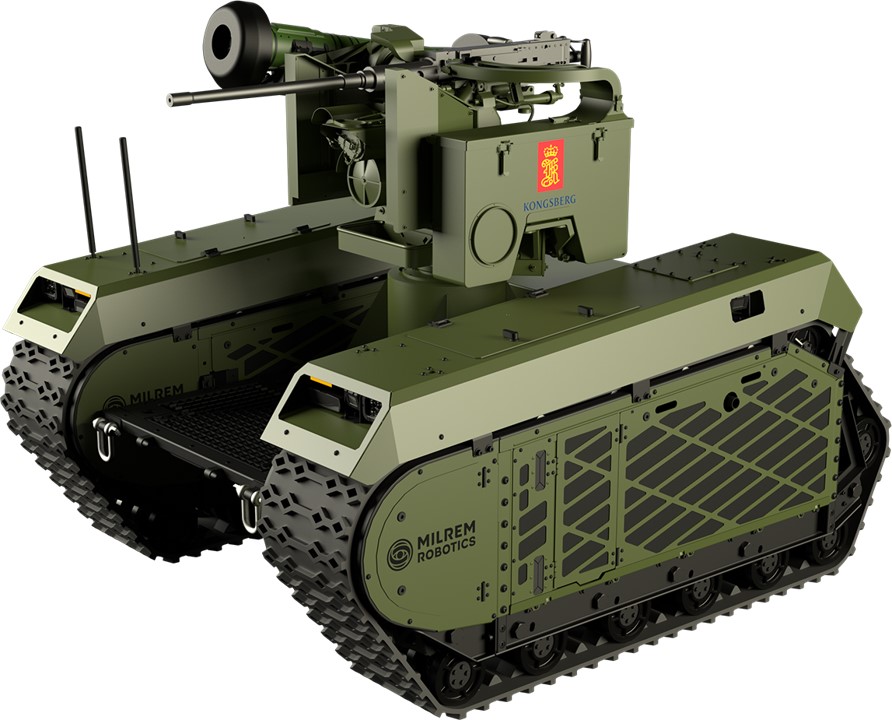

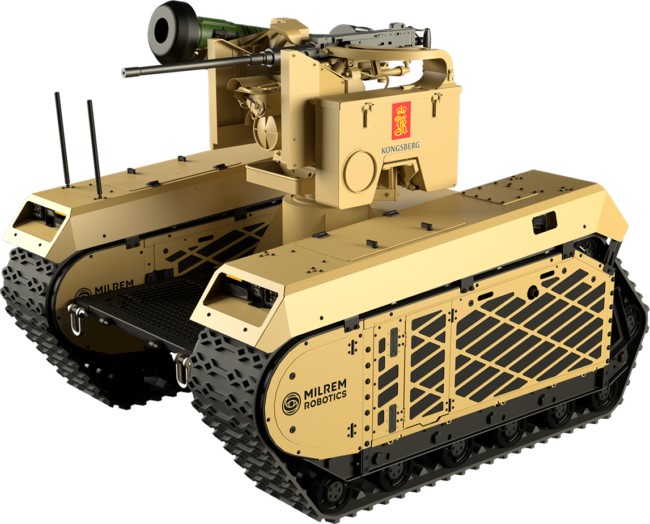

THeMIS Combat with PROTECTOR RWS Estonian Tracked Unmanned Ground Vehicle (UGV)
THeMIS Combat with PROTECTOR RWS
Unmanned Ground Vehicle (UGV)
Other
Basic Information
Name
THeMIS Combat with PROTECTOR RWS Estonian Tracked Unmanned Ground Vehicle (UGV)
Designation
THeMIS Combat with PROTECTOR RWS
Alternate Designation
THeMIS Combat with PROTECTOR RWS
Equipment Type
Unmanned Ground Vehicle (UGV)
Manufacturer
Milrem Robotics
Date of Introduction
2017
Description
The THeMIS Combat with PROTECTOR RWS Estonian Tracked Unmanned Ground Vehicle (UGV) from KONGSBERG was integrated in 2017 and is a valuable addition to the THeMIS RWS family. There are several versions of the PROTECTOR RWS available, one of which is equipped with the Javelin missile system.
Ground Specifications
Engine
Hybrid
Max Speed
20.0 km/h
Range
1.5 km
Variants
THeMIS Combat Support Estonian Tracked Unmanned Ground Vehicle (UGV)
The THeMIS Combat Support Estonian Tracked Unmanned Ground Vehicle (UGV) is to assist military infantry or special intervention police units in high-threat, riot control, and counterterrorist (CT) urban environment scenarios. The THeMIS Combat Support includes a stretcher, a bumper kit, equipment storage boxes, and attachments for extra equipment on the fenders that can be adjusted according to the nature of the mission. It can also be equipped with light remote weapon systems to increase firepower in addition to easing the workload of combatants.
THeMIS Combat with ADDER DM Estonian Tracked Unmanned Ground Vehicle (UGV)
The THeMIS Combat with ADDER DM Estonian Tracked Unmanned Ground Vehicle (UGV) was the first remote weapon station integrated into the THeMIS. This system has been tested in the cold Estonian winter in partnership with weapon station developer and manufacturer Singapore Engineering Land Systems under the supervision of the Estonian Defense Forces.
THeMIS Combat with deFNder Medium
As the name suggests this unit is equipped with the deFNder Medium remote weapon station developed by FN Herstal. In partnership with FN Herstal and the Estonian Defence Forces, this armed UGV has been deployed at the biggest Estonian defense exercise Spring Storm 2017.
In December 2017 live firing tests were conducted in Estonia where the weapon system was tested with a moving UGV as well as a stationary vehicle.
THeMIS Combat with R400S-MK2-D-HD
The THeMIS Combat with the EOS R400S-MK2-D-HD 30 mm autocannon remote weapon system provides direct fire support for maneuver forces acting as a force multiplier. The stabilized weapon system provides higher precision over wide areas, day and night, increasing stand-off distance, force protection and survivability. Reducing logistical footprint and enabling light infantry units to deploy with a heavy weapon system.
THeMIS Combat with GUARDIAN 2.0
The GUARDIAN 2.0 by Escribano Mechanical & Engineering provides defense capabilities over short and medium ranges with high firing accuracy and it is a cost-effective solution for defense against asymmetric threats. The system is stabilized and can operate by day and by night. Operational functions include surveillance, target identification and tracking. Ballistic calculations for shooting are programmed into the main computer unit, allowing improved shooting accuracy.
THeMIS Combat with Hero-120
The THeMIS Combat with the Hero-120 by UVision can be equipped with up to six Loitering Munition systems that will provide dismounted infantry and Special Forces units with long-range ISR and firepower combination. Ideal for anti-tank missions or other strategic objectives, the Hero-120 is the largest of UVision’s short-range systems. It carries a 3.5 kg warhead and can endure an extended flight time of 60 minutes.
THeMIS Combat with TERRAHAWK unmanned C-UAS system
THeMIS Combat and MSI-DS Terrahawk RWS deliver highly effective counter-UAS protection for tactical and static sites, for deployed assets and critical infrastructure. The system offers a new capability for remote situational awareness and hard kill, on an autonomous host platform for last-mile tactical positioning, limiting operator exposure.
System
Alternative Designation
THeMIS Combat with PROTECTOR RWS
Type
Unmanned Ground Vehicle (UGV)
Manufacturer
Milrem Robotics
Configuration
Tracked
Crew
Unmanned
Payload Capacity with RWS
400 kg
Sensors
LiDARs
Cameras
IR (MIL-STD-810G), Thermal, HDR
Lights
LED, IR
Dimensions
Length
240 cm
Width
200 cm
Height without RWS
115 cm
Weight without RWS
1,630 kg
Weight with RWS
2,130 kg
Automotive
Engine Name
INA
Engine Type
Hybrid Diesel
Engine Power Options
Battery Pack, Lead acid or Li-ion; Diesel engine & electric generator
Maximum Range
1.5 km (Line of Sight Control Range)
Maximum Speed
20 km/h
Towing Speed
80 km/h
Amphibious
No
Gradient
60%
Side Slope
30%
Ground Clearance
60 cm
Fording
61 cm
Gap Crossing
90 cm
Pulling Force
15 000 N
Hybrid Run Time
15 hours
Electric Run Time
1.5 hours
Communications
IP Radio
4W, customizable MIMO Mesh
Encryption
AES256
Frequency Hopping
Supported
Main Weapon System
Weapon Station EMC
MIL-STD-461
Weapon Statio0n Vibration
MIL-STD-810 Method 514,4 (custom vibration spectrum)
Protection
Armor
Armor up to STANAG 4569 level 3
Applique Armor
Available
NBC Protection
No
Smoke Equipment
Available
Image Sources
Details
Country of Origin
Estonia
Category
Unmanned Ground Vehicles (UGV)
Land > Unmanned Ground Vehicles (UGV)
Filter Label
T
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
2.4 m
Width
2 m
Height
—
Weight
1630 kg
Operators (10)
United States
France
Germany
United Kingdom
Ukraine
Spain
Estonia
Netherlands
Norway
Singapore
