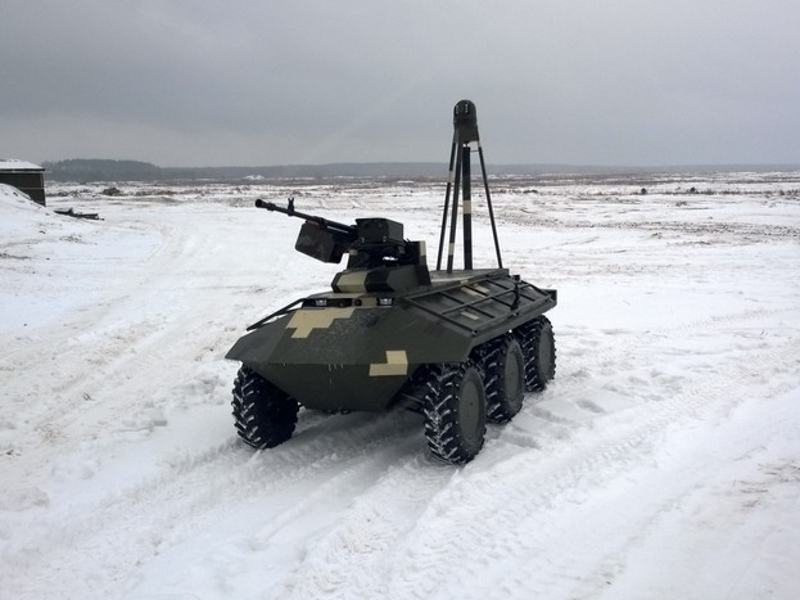

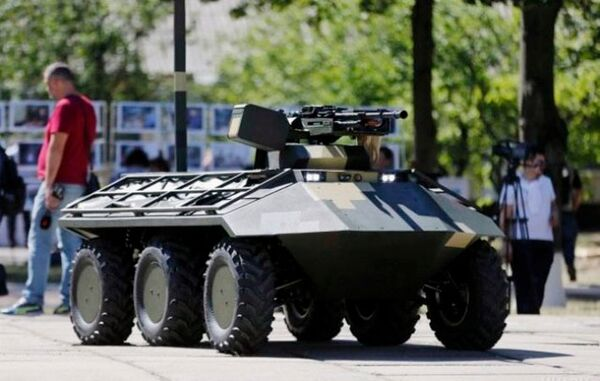

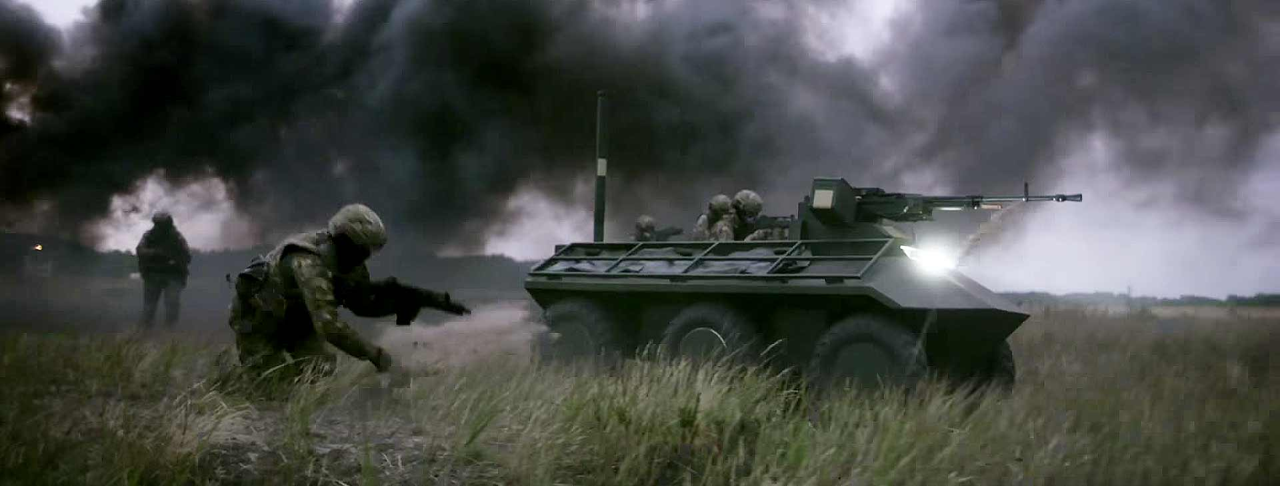

Phantom 1 Ukrainian 6x6 Unmanned Ground Vehicles (UGV)
Phantom 1
Unmanned Ground Vehicle (UGV)
Other
Basic Information
Name
Phantom 1 Ukrainian 6x6 Unmanned Ground Vehicles (UGV)
Designation
Phantom 1
Alternate Designation
Phantom 1; Fantom 1
Equipment Type
Unmanned Ground Vehicle (UGV)
Manufacturer
SpetsTechnoExport (part of Ukroboronprom)
Date of Introduction
2016
Description
The Phantom 1 Ukrainian 6x6 Unmanned Ground Vehicles (UGV) is based on the Dozer-B APC with a steel hull.
Ground Specifications
Engine
4-Cylinder Turbocharged Diesel (191 hp)
Max Speed
38.0 km/h
System
Alternative Designation
Phantom 1; Fantom 1
Type
Unmanned Ground Vehicle (UGV)
Manufacturer
SpetsTechnoExport (part of Ukroboronprom)
Configuration
6x6
Crew
Unmanned
Operator
The vehicle is operated from a remote control station.
Software
The vehicle can autonomously avoid obstacles, use waypoint navigation as well as returning to base.
Cameras
The sensor package includes a visual odometry system using several cameras (with two FoV wide and narrow), thermal camera, and a laser rangefinder.
Payload Capacity
350 kg
Dimensions
Length
5.60 m
Width
1.60 m
Height
0.91 m
Wheelbase
3.1 m
Weight, Combat
1,000 kg
Weight, Empty
650 kg
Ground Clearance
40 cm
Automotive
Engine Name
Deutz BF 4M 1013 FC
Engine Type
4 cylinders, turbocharged, diesel
Engine Power
191 hp at 2,300 rpm
Amphibious
No
Maximum Speed
38 km/h
Maximum Gradient
60%
Side Slope
40%
Suspension
Independent hydraulic
Fording
50 cm
Endurance
10 h
Communications
Maximum Radio Operating Range
10 km
Maximum Tethered Operating Range
5 km
Maximum Satellite Operating Range
INA
Main Weapon System
Weapon System
The system incorporates a roof-mounted remote weapon station (RWS) with a 12.7 mm heavy MG, which is likely to be a NSV.
Turret Angle of Elevation
-3° to +68°
Turret Traverse
360°
Maximum Firing Range
1 km
Note
As of February 2017 the Fantom has been integrated with the ‘Barrierʼ (Barʼer) anti-tank missile system, produced by State Kyiv Design Bureau Luch. It is believed that the ‘Stugna-Pʼ ATGM system can also be fitted if required.
Protection
Armor
Steel hull
Applique Armor
INA
Details
Country of Origin
Ukraine
Category
Unmanned Ground Vehicles (UGV)
Land > Unmanned Ground Vehicles (UGV)
Filter Label
P
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
5.6 m
Width
1.6 m
Height
0.91 m
Weight
1000 kg
Operators (1)
Ukraine
