9P157 Khrizantema-S Russian Anti-Tank Guided Missile System
9P157
Anti-Tank Guided Missile (ATGM)
Other
Basic Information
Name
9P157 Khrizantema-S Russian Anti-Tank Guided Missile System
Designation
9P157
Alternate Designation
—
Equipment Type
Anti-Tank Guided Missile (ATGM)
Manufacturer
KBM
Date of Introduction
2004
Description
The 9P157 Khrizantema-S Russian Anti-Tank Guided Missile System was developed as a launch platform for the 9M123 Khrizantema missile. Although the 9P157 uses a BMP-3 chassis, newer missile, and dual guidance mode its mission and design philosophy is similar to the older 9P149 Shturm-S tank destroyer. The Khrizantema-S is mounted on a BMP-3 chassis, with the complete launch vehicle referred to by either the 9P157 (for the only vehicle in the 9K123 subfamily) or 9P157-2 and 9P157-3 (for vehicles in 9K123-1 Khrizantema-S subfamily) GRAU designations.
Ground Specifications
Crew
2
Engine
V-10 Diesel (500 hp)
Active Protection
None
NBC Protection
Yes
Amphibious
Yes
Range
600.0 km
Variants
9P157 Khrizantema-S
The 9P157 Khrizantema-S is a modern tank destroyer based on the BMP-3 chassis. It is equipped with a retractable pedestal-mounted launcher. Both laser and radar guidance can be used.
9P157-2 Khrizantema-S
The 9P157-2 is the launch vehicle
9P157-4 Khrizantema-S
The 9P157-4 is a battery command vehicle. The 9P157-4 has a BMP-3 turret without main armament and with additional day and night optical systems and radios.
System
Alternative Designations
Khrizantema AT-15
Type
Anti-Tank Guided Missile System
Manufacturer
KBM (Kolomna)
Chassis
BMP-3 chassis,
Crew
2 ea
Layout

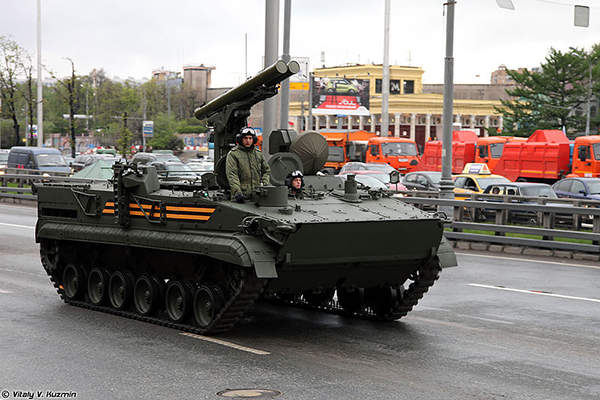

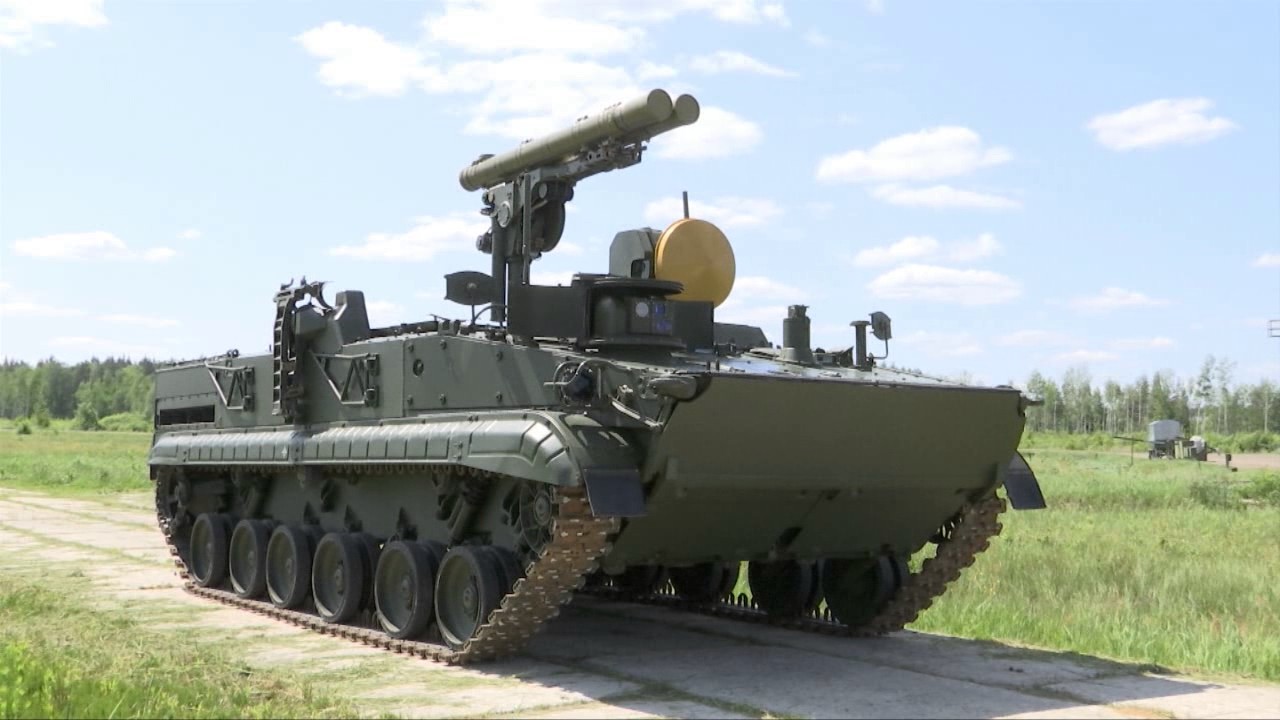

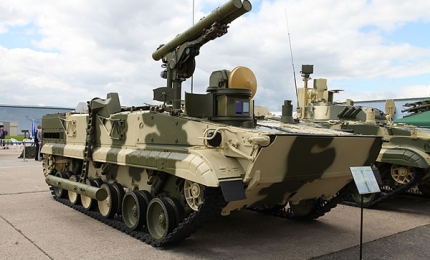

The 9P157 is based on the BMP-3 chassis but is not fitted with a turret. Instead the troop compartment is filled with a twin round retractable pedestal launcher which is connected to an automatic loader. The 9P157 has an optical sight with laser for SACLOS guidance of the laser guided version of the 9M123 missile. Additionally a retractable radar is mounted for detecting targets for the MMW radar version of the 9M123.
Dimensions
Length
7.14 m
Width
6.715 m
Height
2.30 m
Track Length
4.06 m
Track Width
380 mm
Weight
18,700 kg
Ground Pressure
0.61 kg/cm² (5,9821 Pa) (8.68 psi)
Ground Clearance
0.190 m
Automotive
Engine Name
UTD-29M
Engine Type
10 cylinders, water-cooled, diesel
Engine Power
500 hp
Power-to-Weight Ratio
26.73 hp/t
Fuel Capacity
INA
Electrical System
27 V
Steering
differential with hydrostatic drive
Suspension
hydropneumatic shock-absorbers
Maximum Land Speed
70 km/h
Maximum Amphibious Speed
10 km/h
Range
600 km
Amphibious
Yes
Gradient
60%
Side Slope
30%
Vertical Obstacle
0.80 m
Trench
2.5 m
Main Weapon System
Name
9K123 Anti-Tank Guided Missile (ATGM)
Type
Anti-Tank Guided Missile (ATGM)
Launch Platform
9P157
Missile Length
2,057 mm
Container Length
2,300 mm
Missile Diamter
155 mm
Weight, Missile in Container
62 kg
Weight, Missile in Flight
42 kg
Guidance System
Combined automatic radio frequency (RF) command to line-of-sight (LoS) and laser beam-riding SACLOS
Loading System
The automatic loader is a revolver-type, with the missiles all stored horizontally on a rotating carousel.
Warhead
Tandem-HEAT or Thermobaric
Maximum Range
6,000 m
Minimum Range
400 m
Speed
400 m/s
Maximum Altitude
3,000 m
Armor Penetration
>1,100 mm (43.3 in) of conventional armour behind ERA
Basic Load
The 9P157 carries a maximum of 15 missiles.
Fire Control System (FCS)
FCS Name
9K123
Rangefinder
Laser
Note
A key feature of the Khrizantema-S weapon system is that it has two guidance modes, corresponding to the two target acquisition and guidance systems on the host platform. The primary guidance system consists of a millimetric radar, while the secondary consists of an optical sight and laser beam-riding guidance system.
Protection
Hull Armor
The hull of the 9P157 Khrizantema-S is built from aluminum (possibly the ABT-102 alloy from Nii Stali), which is then covered with bolt-on hardened steel armor. Without the steel, the aluminum protects against small-arms fire and shell splinters, and the additional steel – which is concentrated on the front of the vehicle – is sufficient to stop 30 mm rounds fired at a range of 200 m.
Applique Armor
INA
Explosive Reactive Armor
No
Active Protection System
No
Mine Clearing
No
Self-Entrenching Blade
No
NBC Protection
Yes
Smoke Equipment
INA
Details
Country of Origin
Russia
Category
Tracked Anti-Tank Vehicles
Land > Anti-Tank Vehicles > Tracked Anti-Tank Vehicles
Filter Label
9
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
7.14 m
Width
6.72 m
Height
2.3 m
Weight
18700 kg
Operators (4)
Russia
Azerbaijan
Libya
