Arma 8x8 Turkish Amphibious Armored Personnel Carrier (APC)

Arma 8x8

Amphibious Armored Personnel Carrier (APC)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Arma 8x8 Turkish Amphibious Armored Personnel Carrier (APC)
Designation
Arma 8x8
Alternate Designation
Arma 8x8
Equipment Type
Amphibious Armored Personnel Carrier (APC)
Manufacturer
Otokar
Date of Introduction
2010
Description

The Arma 8x8 Turkish Amphibious Armored Personnel Carrier (APC) system represents a deliberate strategy by Turkey's defense industry to establish indigenous capabilities across the full spectrum of modern armored vehicles while maintaining competitive relevance against established platforms from Germany, Finland, and the United States. The ARMA 8x8 embodies a modular design philosophy that prioritizes tactical flexibility and logistical efficiency. Developed as a company-funded initiative to address Turkey's Special Purpose Tactical Wheeled Armoured Vehicle (Özel Maksatlı Taktik Tekerlekli Zırhlı Araç, ÖMTTZA) requirements, the platform features a monocoque steel hull with a distinctive V-shaped belly designed to disperse blast effects from mines and improvised explosive devices. The vehicle's internal architecture reflects modern armored personnel carrier doctrine. The engine and power unit are positioned at the right front of the hull, a design choice that maximizes usable interior volume—particularly valuable for a vehicle tasked with transporting up to 14 personnel, including the driver and commander. Personnel seating is ergonomically configured to support face-to-face positioning, enhancing situational awareness within the crew compartment while maintaining protection through specialized anti-injury seats that prevent injury to the head, neck, spinal cord, and pelvis during deceleration events and blast exposure. The modest weight-to-dimension ratio enables strategic mobility via airbridge. The ARMA 8x8 is airportable by C-130 Hercules and larger transport aircraft, expanding deployment flexibility compared to heavier platforms. The Otokar ARMA 8x8 represents a mature design that achieves a balance among mobility, protection, firepower, and strategic mobility in the mid-weight wheeled armored vehicle category. The platform's amphibious capability, modular architecture, and proven operational reliability set it apart in a competitive market dominated by NATO-standard designs. While the ARMA II evolution addresses protection and firepower requirements through increased power and enhanced armor, the baseline variant maintains competitive relevance through economical operation, exceptional terrain negotiation, and comprehensive mission flexibility.

Ground Specifications
Crew 2
Mobility Type Wheeled (8x8)
Engine Turbocharged Diesel (450 hp)
NBC Protection Yes
Max Speed 100.0 km/h
Range 700.0 km
Variants

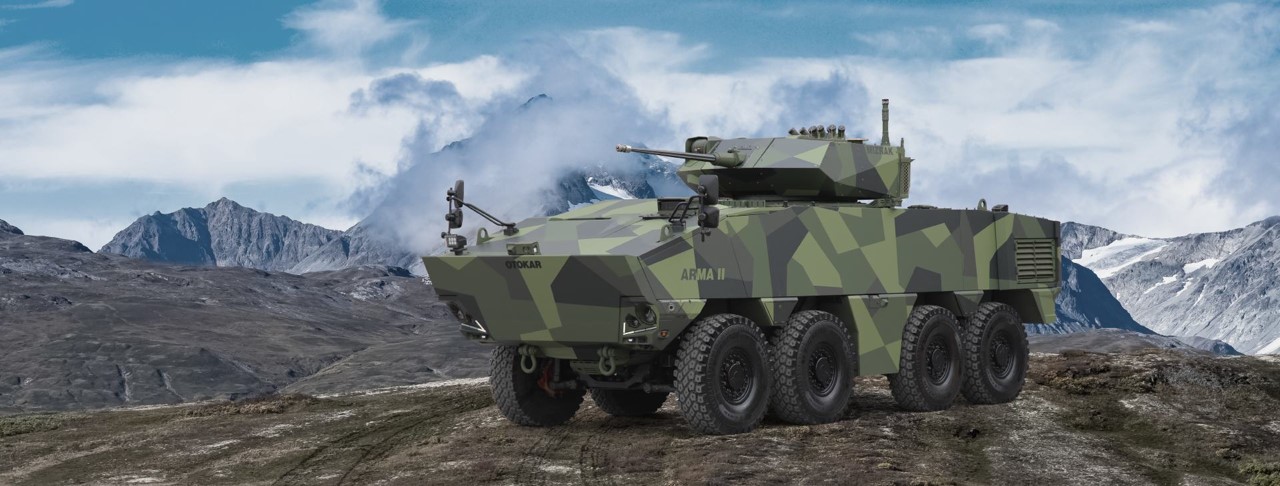

ARMA II 8x8 The recently introduced ARMA II variant (2023) represents a significant evolutionary step, featuring a domestically produced Ford Otosan Ecotorq engine rated at 720 horsepower—a 60% increase in power. This development signals Turkey's commitment to vertical integration within the defense industrial base, eliminating reliance on foreign powerplants while simultaneously enabling support for heavier turret systems up to 120mm caliber
Rabdan 8x8 IFV The Rabdan 8x8 IFV, developed through a 2016 Otokar-Al Jasoor partnership for the United Arab Emirates, represents an evolutionary advancement in protection architecture. Rabdan achieves STANAG 4569 Level 4 ballistic protection (14.5mm armor-piercing rounds at 200 meters) coupled with Level 4a and 4b mine blast protection, representing a two-level protection increase compared to the baseline ARMA. This protection enhancement comes at a penalty: Rabdan gross weight reaches 28-30 tons, a 4-6 ton increase reflecting the added armor mass. The 600-horsepower engine in Rabdan (versus 450-700 in baseline ARMA) maintains comparable power-to-weight ratios, though the marginal reserve for acceleration is reduced.
System
Alternative Designation Arma 8x8
Type Amphibious Armored Personnel Carrier (APC)
Manufacturer Otokar
Configuration 8x8
Crew 2 ea
Passengers 12 ea
Dimensions
Length 8.5 m
Width 3.25 m
Height 2.5 m
Weight, Combat 40,000 kg
Automotive
Engine Name Caterpillar
Engine Type Turbocharged diesel
Engine Power 450 hp
Maximum Range 700 km
Maximum Speed 100 km/h
Amphibious A distinguishing feature of the ARMA platform is its integrated amphibious capability, achieved through twin hydraulically driven propellers that provide water propulsion at velocities exceeding 8 kilometers per hour. The optional amphibious configuration includes a joystick control interface for water maneuvers, facilitating pivot-turn operations that enhance tactical flexibility during riverine or littoral operations.
Amphibious Speed 9 km/h
Gradient 60%
Side Slope 30%
Vertical Step 700 mm
Trench 2,000 mm
Fording 1,800 mm
Angle of Approach 45 deg
Angle of Departure 45 deg
Main Weapon System
Available Weapons A central design objective of the ARMA platform is compatibility with a spectrum of weapon systems, spanning from defensive small-arms suppression to direct-fire support roles. The modular turret interface enables rapid weapon system exchange, supporting: Mizrak 30: 30mm,Autonomous gyro-stabilized turret, Anti-personnel, light armor. Mizrak S 30: 30mm, Lightweight variant, Reduced signature variant. ÜÇOK: 12.7mm/7.62mm/40mm AGL, Remote-controlled weapon station, Modular mission roles. BAŞOK: 7.62mm, Remote-controlled, Self-defense/suppression. KESKIN: 14.5mm/12.7mm/7.62mm/40mm AGL, 360° remote-controlled, Full-spectrum coverage. Oto Melara Hitfist: 30mm, External turret, Integrated fire control. Dragar 25mm: 25mm, Weapon station, IFV variant. Open Cupola: 20mm cannon or machine guns,Operator-exposed Organic defense. Anti-Tank Systems, Varies, External mounts, ATGM platforms. Mortar Systems: Up to 120mm, Internal/mounted, Indirect fire support.
Fire Control System Advanced fire control systems, when integrated, provide digital ballistic computation, laser range finding, thermal imaging for night operations, and stabilized optics enabling accuracy across the vehicle's mobility envelope. The ÜÇOK, KESKIN, and Mizrak variants feature 360-degree traverse and can be operated from within the armored hull or remotely, separating operator from direct counterfire risk.
Protection
Armor The ARMA 8x8 baseline configuration provides protection in compliance with NATO STANAG 4569 Level II specifications. Level II protection encompasses defense against 7.62x39mm armor-piercing ammunition and 6-kilogram anti-tank mines, representing the threshold protection standard for modern wheeled personnel carriers operating in asymmetric conflict environments. Protection is achieved through multiple integrated mechanisms: Monocoque Steel Hull: The primary load-bearing structure employs high-hardness steel optimized for ballistic energy absorption and blast load distribution. V-Shaped Belly Structure: The distinctive bottom hull geometry disperses blast pressure laterally rather than vertically into the crew compartment, significantly reducing personnel casualties from bottom-attack mine scenarios. Anti-Personnel Seating: All crew and passenger positions utilize specialized seats equipped with pneumatic or mechanical suspension designed to isolate occupants from blast overpressure and ground shock. Five-point seat belts provide integrated restraint.
Applique Armor Optional bolt-on armor kits permit integration of higher-performance ballistic materials without structural modification, enabling protection upgrades as threat assessments evolve.
NBC Protection Yes
Smoke Equipment INA
Details
Country of Origin Turkey
Category Land
Land
Filter Label
A
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
8.5 m
Width
3.25 m
Height
2.5 m
Weight
40000 kg
Operators (5)
Turkey
Jordan
Kazakhstan
Philippines
United Arab Emirates
