Astro American Unmanned Aerial Vehicle (UAV)
Astro
Tactical Unmanned Aerial Vehicle (UAV)
Other
Basic Information
Name
Astro American Unmanned Aerial Vehicle (UAV)
Designation
Astro
Alternate Designation
Astro
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
Freefly
Date of Introduction
2022
Description

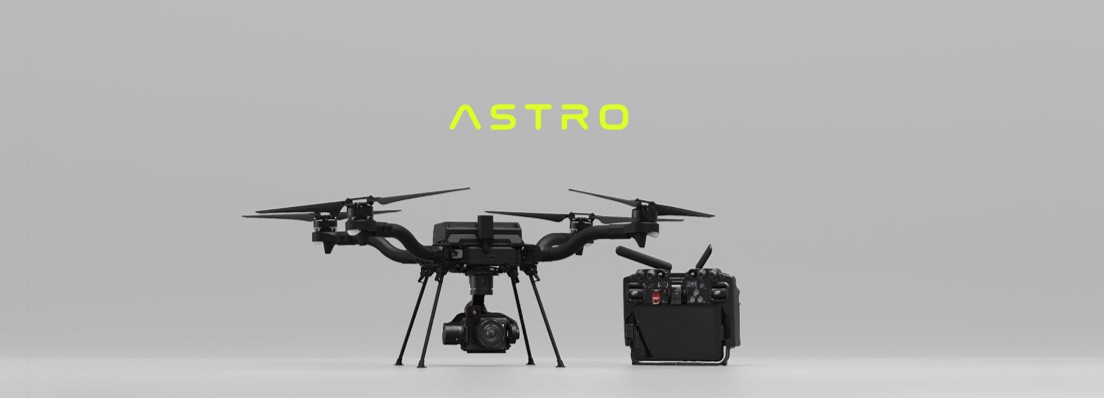

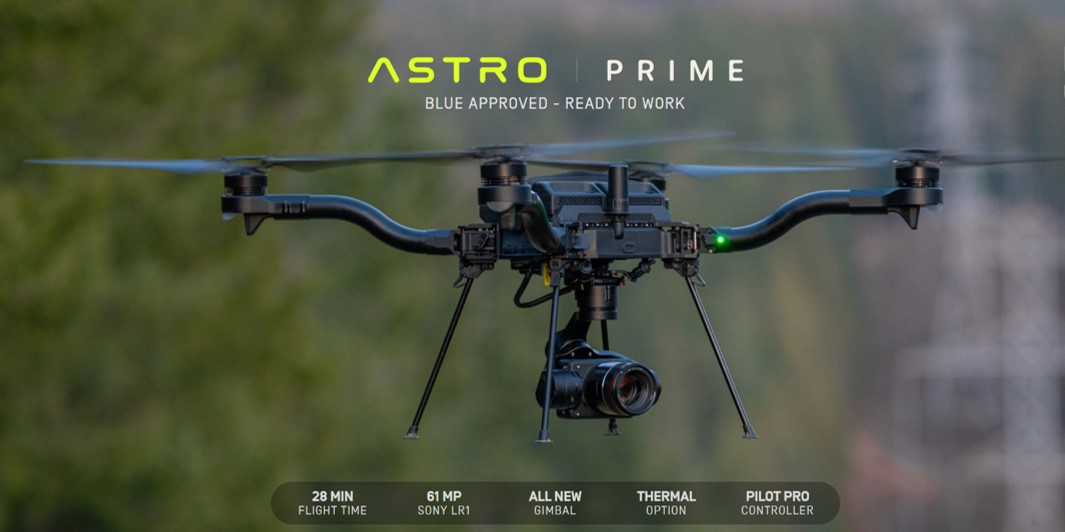

The Astro American Unmanned Aerial Vehicle (UAV) is the latest commercial drone platform with Sony LR1, Pilot Pro, Doodle Labs Radio, RTK, LTE cloud connectivity, mission computer, AuterionOS and more.
Air & Air Defense Specifications
Payload Capacity
1500 kg
System
Alternate Designation
Astro
Type
Unmanned Aerial Vehicle (UAV)
Manufacturer
Freefly
Flight Modes
Manual, Altitude Hold, Position Hold, Autonomous Mission, Return to Land.
Payload Capacity
1,500 g
Payload Mounts
Vibration Isolated Gimbal Quick Release, Vibration Isolated Cheese Plate, Toad in the Hole.
Integrated Payloads
LR1 Payload, Gimbaled Alpha 7R IVA Mapping Camera, Wiris Pro Payload, Sentera 6X, Sentera 6X Thermal, Sentera 65R, Hovermap ST-X.
Gimbal Quick Release Connections
Power, MAVLink Communication Protocol.
Connectivity
BLE, Wifi, USB C, LTE (North America).
Supported Radios
Freefly Pilot Pro (with Herelink or Doodle Labs radios).
Supported GNSS
L1/L2 GPS, GLONASS, Beidou and Galileo bands.
Dimensions
Unfolded Diameter (w/o Props)
917 mm
Unfolded Diameter (Including Props)
1,407 mm
Unfolded Height
359 mm
Folded Diameter
508 mm
Folded Height
178 mm
Maximum Gross for Takeoff
6,950 g (conditional on altitude)
Typical Standard Empty weight
3,095 g
Automotive
Engine Name
Freefly F45
Number of Motors
4 ea
Battery
Freefly Super Light Batteries (SL8-Air)
Motor Max Continuous Power Output
350 W
Motor Max Instantaneous Peak Power Output
600 W
Equivalent Kv
420 Kv
Electronic Speed Controller
Freefly Silent-Drive Sine Wave ESC
Max RPM
3500 RPM
Material
Carbon Fiber Reinforced Nylon
Flight Time (No Payload)
38 min
Image Sources
Details
Country of Origin
United States
Category
UAVs
Air > UAVs
Filter Label
A
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
—
Width
—
Height
—
Weight
3.1 kg
Operators (1)
United States
