Sandown

Sandown

Mine CounterMeasures Vessels
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Sandown
Designation
Sandown
Alternate Designation
Al Jawf
Equipment Type
Mine CounterMeasures Vessels
Manufacturer
—
Date of Introduction
1989
Description

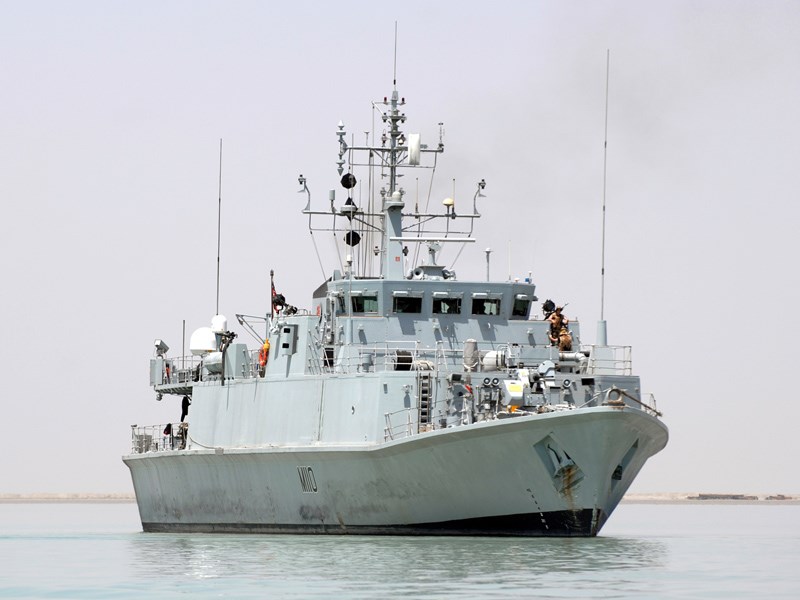

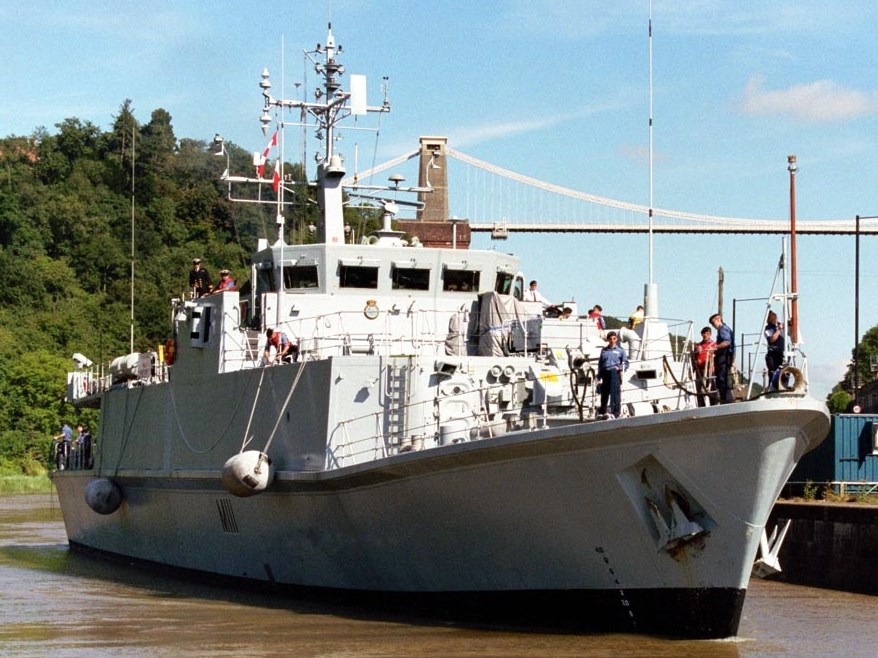

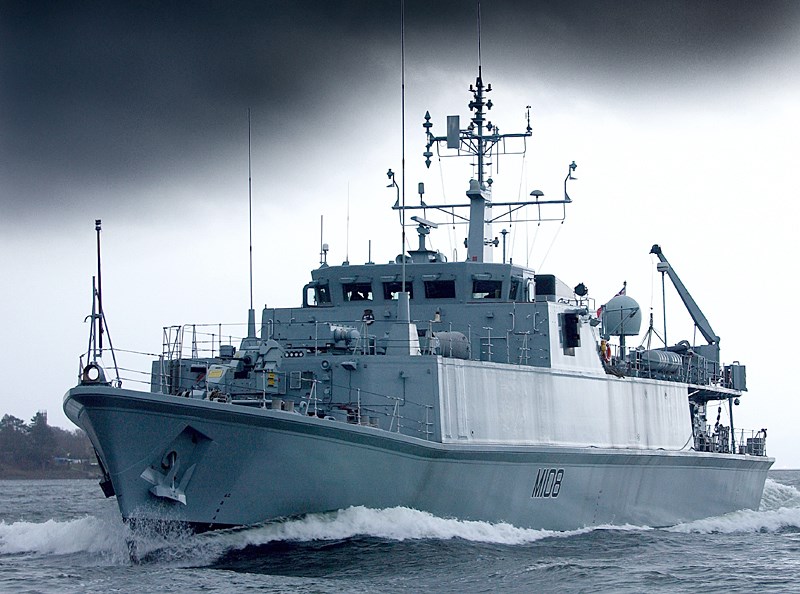

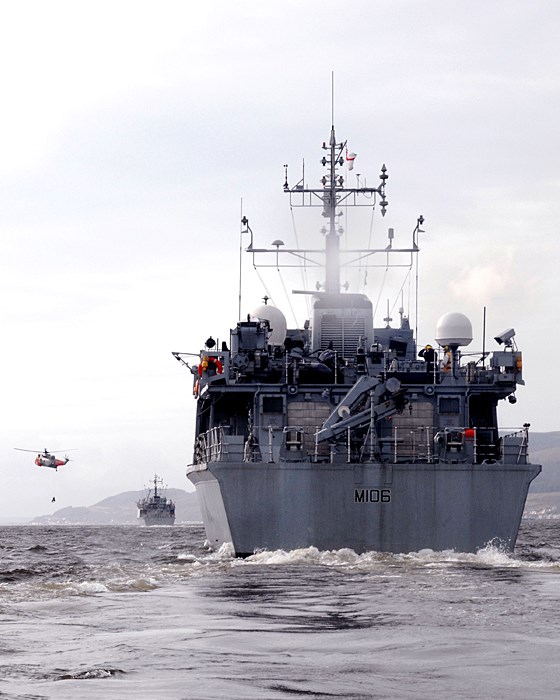

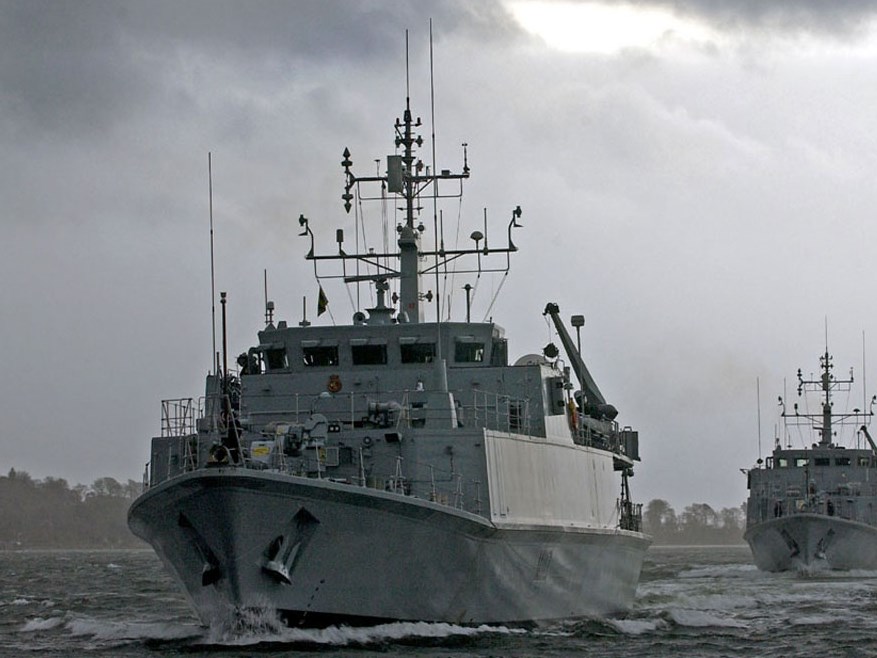

The Sandown is a class of pure mine countermeasure vessels (MCMVs) with 11 ships commissioned by the Royal Navy starting in 1989 through 2002. These vessels are equipped with Type 1007 I-band radar, Type 2093 minehunting sonar, a 30mm gun and two PAP 104 Mk5 remote controlled submersibles (RCMDS 2). HMS Blyth and HMS Ramsey have extra armament comprising: three general purpose machine guns and two miniguns. The propulsion system consists of two Paxman Valenta, MAN, 6RP200E diesels producing a sustained power of 1523-hp which drives the Voith-Schneider propeller, and two Schottel bow thrusters. Under the United Kingdom (UK) Ministry of Defense (MoD) Future Capabilities published in July 2004 the number of Sandown class mine-hunter vessels in service with the Royal Navy was slashed to eight.

Naval & Littoral Specifications
Crew 34
Displacement 600.00 tonnes
Beam 10.90 m
Draft 2.30 m
Overview (Deagel)
Group Mine CounterMeasures Vessels
Status Active
Also Known As Al Jawf
Origin United Kingdom
Initial Operational Capability (IOC) 1989
Total Production 14
Specifications (Deagel)
Crew 34
Dimensions — Beam 10.9 meter
Dimensions — Draft 2.3 meter
Dimensions — Length 52.5 meter
Dimensions — Main Gun Caliber 30 millimeter
Mass — Full Displacement 600 ton
Power — Cruise Power 1,523 hp
Speed — Cruise Speed 13 knot
Gear (Deagel)
Item 1 Radar Systems: Type 1007 (1)
Item 2 Sonar Systems: Sonar 2093 (1)
Item 3 Sonar Systems: Sonar 2193 (1)
Item 4 Unmanned Underwater Vehicles: PAP-104 Mk 5 (2)
Details
Country of Origin United Kingdom
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
52.5 m
Width
10.9 m
Height
—
Weight
600000 kg
Operators (5)
United Kingdom
Ukraine
Estonia
Romania
Saudi Arabia
