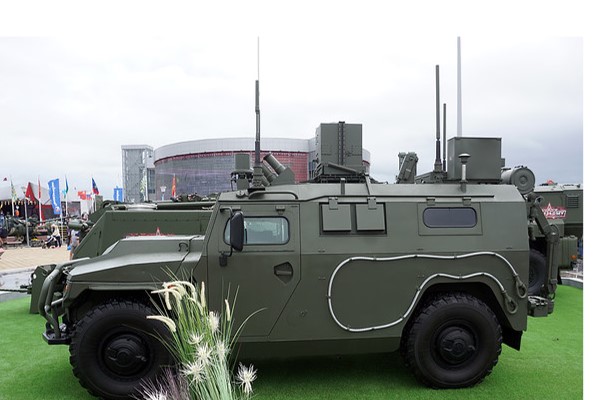

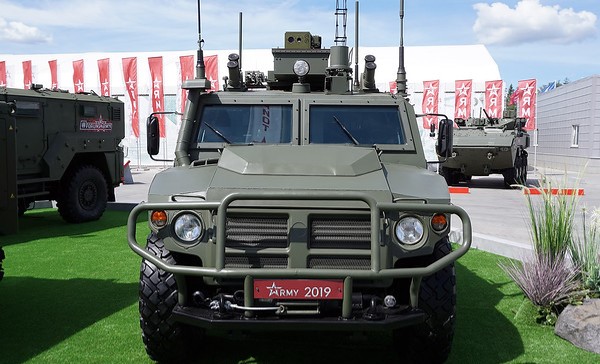

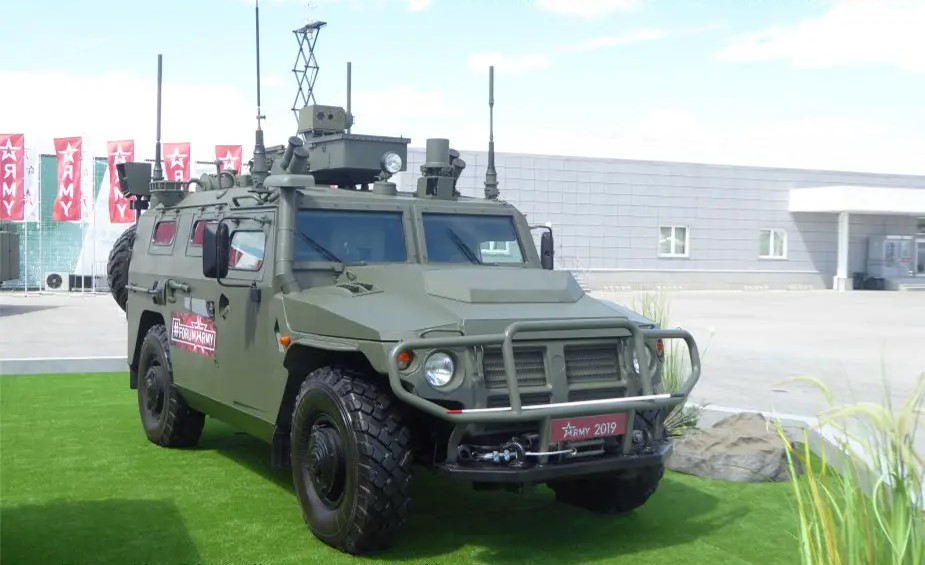

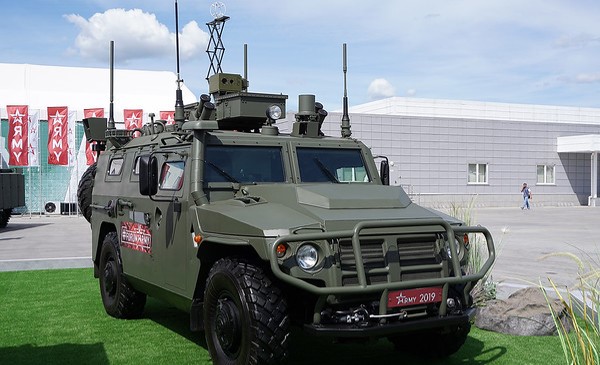

RKhM-8 Russian 4x4 CBRN Reconnaissance Armored Vehicle
RKhM-8
CBRN Vehicle
Other
Basic Information
Name
RKhM-8 Russian 4x4 CBRN Reconnaissance Armored Vehicle
Designation
RKhM-8
Alternate Designation
RKhM-8
Equipment Type
CBRN Vehicle
Manufacturer
Arzamas Machine-Building Plant
Date of Introduction
2019
Description
The RKhM-8 Russian 4x4 CBRN Reconnaissance Armored Vehicle is a CBRN (Chemical Biological Radiation Nuclear) reconnaissance vehicle equipped with equipment able to detect nuclear radiation, chemical and biological agents and transfer data via control and communication systems to command post. The vehicle provides local detection of toxic chemical agents in the battlefield and on military equipment. It can collect samples of contaminated areas by nuclear radiation, chemical and biological agents and deliver information to specialized laboratories. All the detection equipment are mounted on the roof of the vehicle.
Ground Specifications
Crew
3
Engine
Diesel (215 hp)
NBC Protection
Yes
Max Speed
50.0 km/h
System
Alternative Designation
RKhM-8
Type
CBRN Reconnaissance Armored Vehicle
Manufacturer
Arzamas Machinery-Plant
Configuration
4x4
Crew
3 ea
Note
The vehicle detects gamma radiation sources and radiation directions, and identifies toxic agents in the air, on the field, and on military vehicles.. The RKhM-8 is capable of express identification of biologically pathogenic agents. It would transport other chemically, and radiologically contaminated samples to specialised laboratories, the vehicle has also been fitted with an automatic meteorological sensor.
Dimensions
Length
5.7 m
Width
2.7 m
Height
2.9 m
Weight, Combat
7,500 kg
Automotive
Engine Name
YaMZ 5347-10 / 5347-11
Engine Type
Diesel
Engine Power
215
Maximum Range
INA
Maximum Speed
50 km/h
Protection
Armor
The RKhM-8 Russian 4x4 CBRN Reconnaissance Armored Vehicle has an armored hull welded from steel sheets, which is fastened to the frame in ten points via rubber pads. All the windows and doors in the hull are provided with bulletproof glasses. The windshield bulletproof glasses are fitted with wipers, while the other bulletproof glasses are equipped with opening mechanisms that ensure the opening outward and upward with fixed positions.
Applique Armor
Available
NBC Protection
Yes
Smoke Equipment
2 x banks of two smoke grenade dischargers are mounted at the front, on each side of the roof vehicle.
Details
Country of Origin
Russia
Category
Land
Land
Filter Label
R
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
5.7 m
Width
2.7 m
Height
2.9 m
Weight
7500 kg
Operators (1)
Russia
