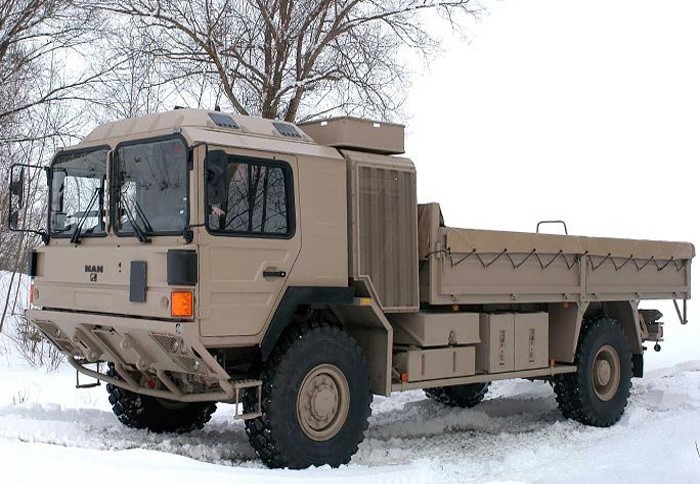

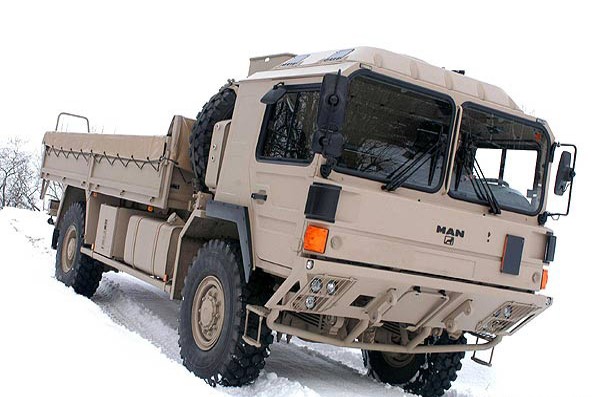

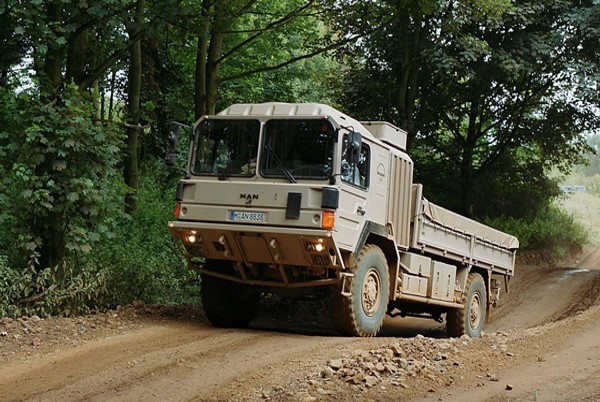

MAN HX60 German 4x4 General Utility Truck
HX60
Heavy Utility Truck
Other
Basic Information
Name
MAN HX60 German 4x4 General Utility Truck
Designation
HX60
Alternate Designation
HX60; HX 18.330
Equipment Type
Heavy Utility Truck
Manufacturer
MAN
Date of Introduction
2004
Description
The MAN HX is a range of tactical trucks specially developed to meet military needs. It replaced in production the FX and LX ranges. The MAN HX60 military truck has a 4x4 configuration.
Ground Specifications
Crew
1
Engine
Inline 6-Cylinder Turbocharged Diesel (326 hp)
Active Protection
None
Max Speed
88.0 km/h
Range
800.0 km
Variants
HX58
HX 26.440 6×6 BB
HX60
HX 18.330 4×4 BB
HX61
INA
HX77
The MAN HX77 is an 8x8 heavy tactical truck. It is a part of HX range of tactical trucks.
HX81
HET
System
Alternative Designation
HX60; HX 18.330
Type
General Utility Truck
Manufacturer
MAN
Configuration
4x4
Family
MAN RMMV HX range of tactical trucks
Crew
1 ea
Cab Seating
1 + 2
Payload Capacity
10,000 kg (chassis carrying capacity)
Tow Load Capacity
15,000 kg
Airlift Capability
The MAN HX60 can be airlifted by the C-130 Hercules cargo aircraft with little preparation.
Note
The MAN HX series was succeeded in production by an improved HX2 series. Also production of more capable MAN SX series reportedly ceased in 2019.
Dimensions
Length
7.6 m
Width
2.55 m
Height
2.89 m
Wheel Base
4.5 m
Empty Weight
7,950kg (chassis-cab)
Gross Vehicle Weight
18,000 kg (permissible GVW, with single tires)
Ground Clarence, Front
428 mm (front)
Ground Clearance, Rear
422 mm (rear)
Automotive
Engine Name
MAN small block D0836 LFG
Engine Type
EURO 4, 6.871 litre, in line-6, turbocharged, common rail injection, water cooled, 4 stroke, diesel
Engine Power
326 hp at 1,500 rpm
Fuel Capacity
400 litres
Gearbox
ZF 12 AS 1210 TO AS Tronic Mid with12 forward and 2 reverse gears
Transfer Case
MAN G102 two-speed with engageable front axle drive
Electrical System
24 V (three-phase)
Alternator
28 V, 110 A
Steering
ZF 8098, hydraulic power-assistance
Suspension
front and rear axles; parabolic leaf springs with progressively acting rubber assistors and shock-absorbers
Brakes
dual circuit, air, drums on all axles, Electronic Brake System (EBS) with ABS with off-road logic included supplemented by air-actuated exhaust brake with additional Exhaust Valve Brake system
Maximum Speed
88 km/h (limited)
Range
800 km
Gradient
60%
Side Slope
40%
Vertical Step
0.6 m
Trench
0.6 m
Fording
1.2 m
Turning Radius
11.25 m (wall)
Main Weapon System
Note
There is no weapons system mounted on the MAN HX60.
Protection
Armor
The MAN HX60 is fitted with an all-steel solid modular cab.
Applique Armor
Yes, The cab can be fitted with add-on armor.
Active Protection System
No
Mine Clearing
No
NBC Protection
INA
Smoke Equipment
No
Details
Country of Origin
Germany
Category
Logistics
Land > Combat Support Vehicles > Logistics
Filter Label
M
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
7.6 m
Width
2.55 m
Height
2.89 m
Weight
18000 kg
Operators (4)
Germany
United Kingdom
Denmark
New Zealand
