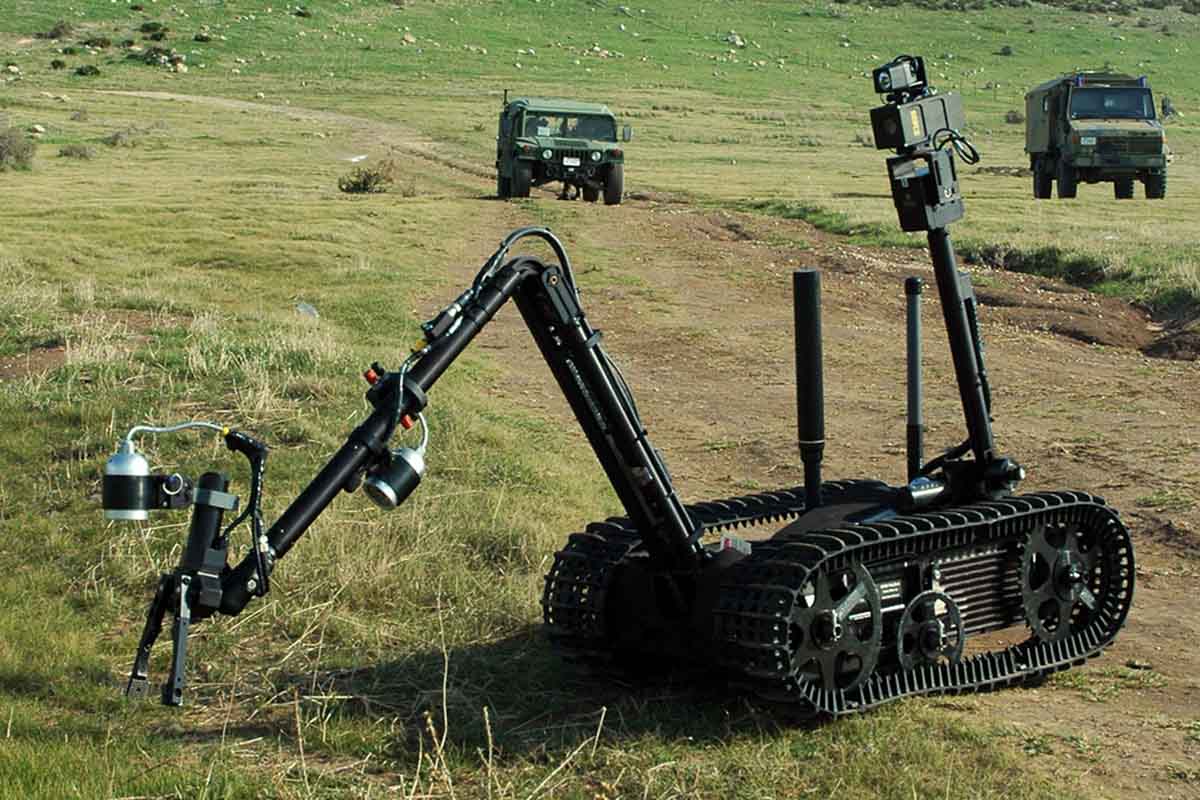

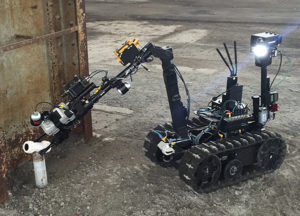

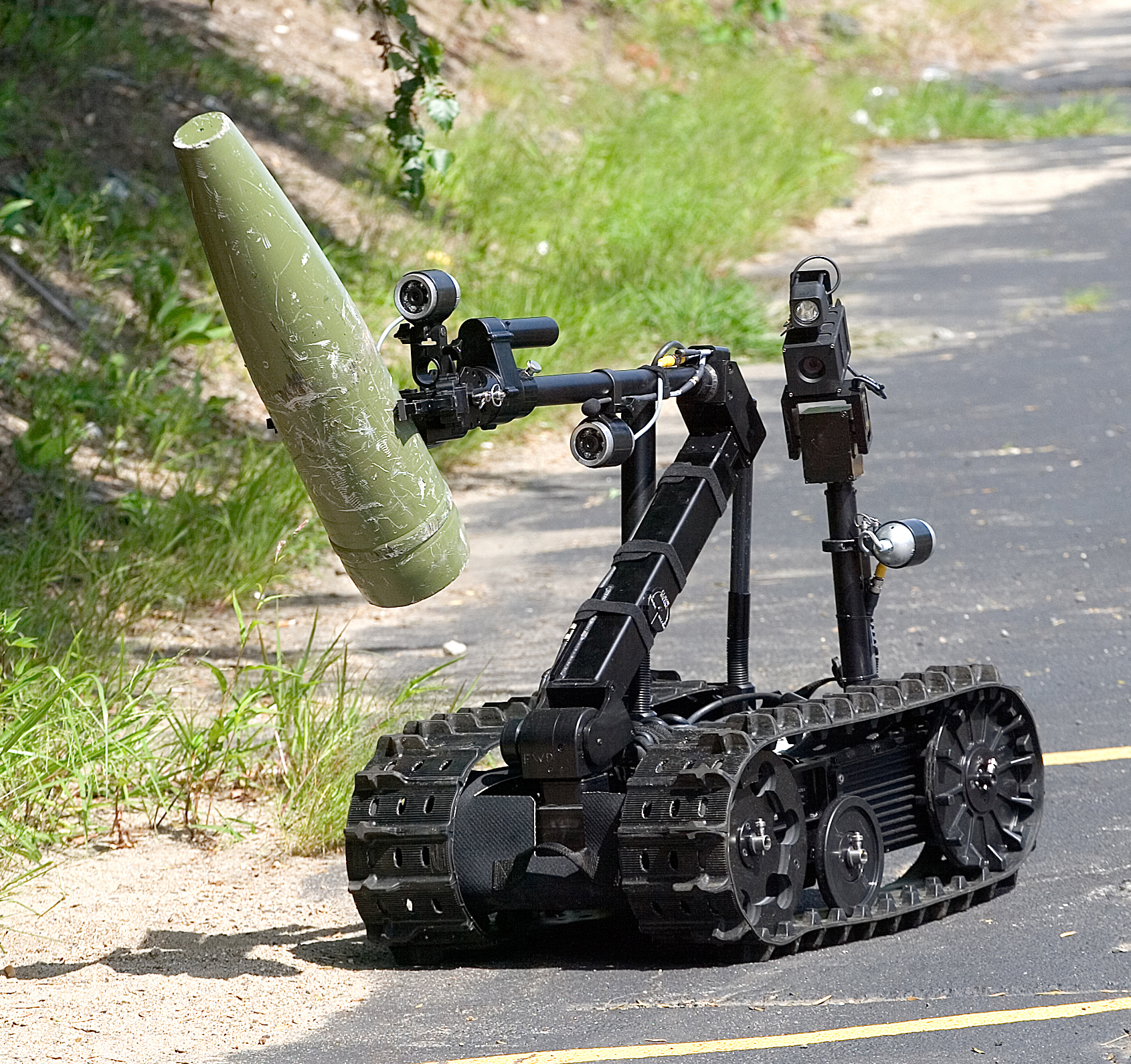

Talon 5 American Tracked Unmanned Ground Vehicle (UGV)

Talon 5

Unmanned Ground Vehicle (UGV)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Talon 5 American Tracked Unmanned Ground Vehicle (UGV)
Designation
Talon 5
Alternate Designation
Talon 5
Equipment Type
Unmanned Ground Vehicle (UGV)
Manufacturer
QinetiQ North America
Date of Introduction
2000
Description

TALON Medium-Sized Tactical Robot Since its introduction in 2000, QinetiQ North America’s TALON family of robots has earned a reputation for durability, flexibility, reliability, and performance in keeping personnel, assets, and civilians out of harm’s way. In the military, law enforcement, and first responder applications, TALONs are widely deployed for the improvised explosive device (IED) and explosive ordnance disposal (EOD), reconnaissance, communications, CBRN (Chemical, Biological, Radiological, Nuclear), HAZMAT, security, heavy lift, defense and rescue missions. Our TALON CBRN/Hazmat modular kit is available for TALON IV and V models. TALONs have been used worldwide, from Ground Zero after the 2001 World Trade Center attack, to IRAQ and Afghanistan, searching for the Boston Marathon bombing suspect and assisting with security during major sporting events. Now on its fifth generation, TALON 5 is the first Interoperability Profile (IOP) fielded robotic system that has successfully gone through Army Test and Evaluation Command testing.

Ground Specifications
Mobility Type Tracked
Range 0.8 km
Variants
Talon 5 TALON Medium-Sized Tactical Robot Since its introduction in 2000, QinetiQ North America’s TALON® family of robots has earned a reputation for durability, flexibility, reliability and performance in keeping personnel, assets and civilians out of harm’s way. In military, law enforcement and first responder applications, TALONs are widely deployed for improvised explosive device (IED) and explosive ordnance disposal (EOD), reconnaissance, communications, CBRN (Chemical, Biological, Radiological, Nuclear), HAZMAT, security, heavy lift, defense and rescue missions. Our TALON CBRN/Hazmat modular kit is available for TALON IV and V models. TALONs have been used worldwide, from Ground Zero after the 2001 World Trade Center attack, to IRAQ and Afghanistan, searching for the Boston Marathon bombing suspect and assisting with security during major sporting events. Now on its fifth generation, TALON 5 is the first Interoperability Profile (IOP) fielded robotic system that has successfully gone through Army Test and Evaluation Command testing.
TALON CBRN/Hazma TALON CBRN/Hazmat kit is equipped with a variety of sensors that provides ultimate protection in dangerous CBRN missions. Proven Protection For over 15 years, TALON robots have been used for EOD and CBRN operations. TALON’s were first military robot deployed in Bosnia for moving and disposing of live explosives and the first to be used in active combat in Afghanistan and in Iraq. Deployed at Ground Zero after the Sept. 11 (9/11) attack on the World Trade Center in NYC, TALON robots were used extensively to support search and rescue and recovery efforts. Out of the two robot types used at Ground Zero, TALONs were the only robots to handle the difficult and dangerous mission without requiring a major repair. Even after repeated contamination, TALON remained operational. Flexible and Rugged Operation The CBRN kit is configurable for TALON IV and above models. TALON’s optional, heavy-lift, multiple-degreeof freedom arm can be used to open doors and trunks making it a valuable additional to critical and dangerous missions.
System
Alternative Designation Talon 5
Type Tracked Unmanned Ground Vehicle (UGV)
Manufacturer QineticQ North America
Crew Unmanned ea
Maximum Payload Weight 68 kg
Vertical Reach 95 cm
Horizontal Reach 157 cm
Gripper Force 49.9 kg
Gripper Rotation 360° (continuous)
Controller Options Laptop Control Unit Tactical Robot Controller (TRC) UC-LITE (Universal Controller - Lightweight Interoperable Tactical Equipment)
Communications External IP Radio (Persistent System’s MPU5 Radio) Gigabit Ethernet Communications Backbone
Cameras 4 ea
Available I/O Ports *2x IOP A connectors *1x IOP B connector *4x Gigabit Ethernet and 12VDC (24VDC opt.) *2x RS-232 ports *1x USB port **1x CAN bus 6x Interfaces for legacy TALON accessories
Dimensions
Length 87 cm
Length, with Arm Extended 110 cm
Width 58 cm
Height 83 cm
Weight 81 kg
Automotive
Engine Name INA
Engine Type INA
Engine Power INA
Maximum Speed INA
Operational Range Over 2,600 feet (800 m) Line-of-Sight
Endurance 3-4 hours (mission dependent)
Stair Climbing 45° slope
Turning Circle 133 cm
Protection
Hull Armor INA
Applique Armor INA
Details
Country of Origin United States
Category Unmanned Ground Vehicles (UGV)
Land > Unmanned Ground Vehicles (UGV)
Filter Label
T
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
0.87 m
Width
0.58 m
Height
0.83 m
Weight
81 kg
Operators (1)
United States
