VF13E Chinese Unmanned Aerial Vehicle (UAV)

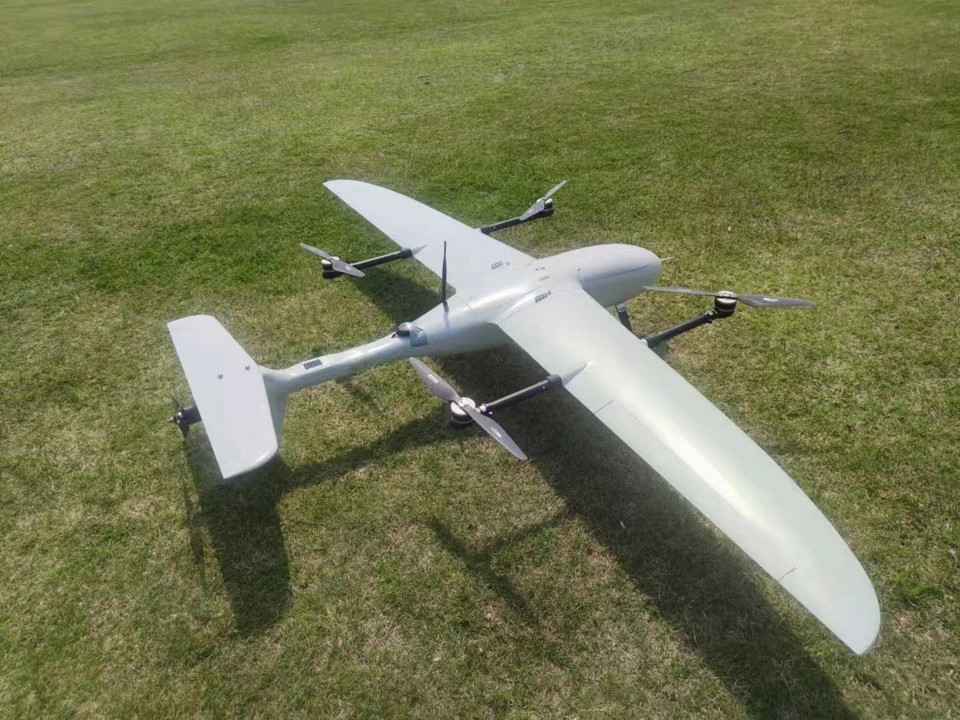

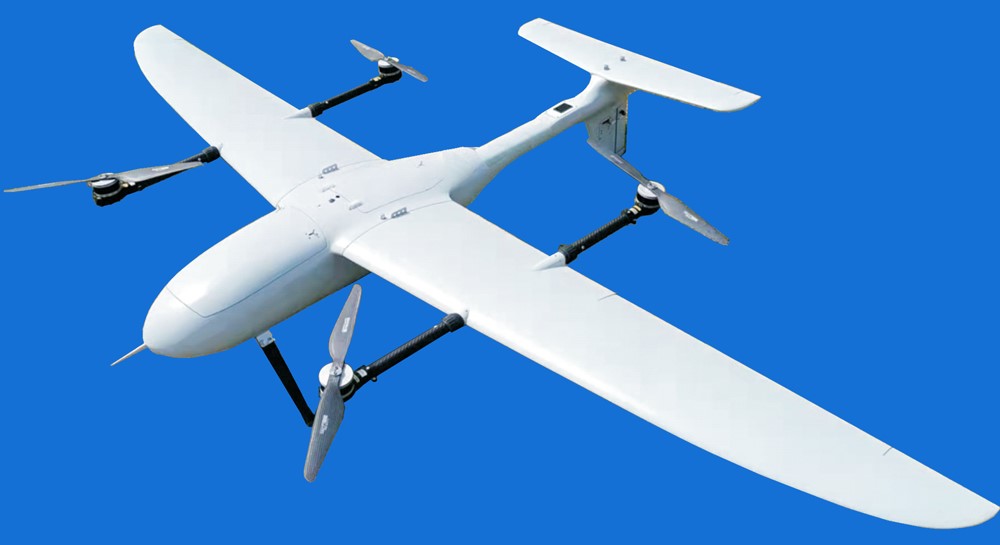

The VF13E Chinese Unmanned Aerial Vehicle (UAV) is a hybrid electric vertical takeoff and landing (VTOL) fixed-wing platform developed by Hinaray. Designed for both commercial and tactical applications, the VF13E integrates multirotor hovering with fixed-wing cruise efficiency to provide extended endurance, modular payload options, and rapid deployment. These features make it suitable for surveillance, infrastructure inspection, mapping, and defense reconnaissance. The compact design, three-minute assembly process, and integration-ready architecture enable operational flexibility for organizations that require hybrid aerial capabilities without requiring runway infrastructure. As an electric hybrid VTOL platform, the VF13E differentiates itself from conventional fixed-wing UAVs by incorporating vertical lift systems that support autonomous takeoff and landing in challenging environments. In contrast to multirotor-only systems, which rely solely on rotary lift, the VF13E uses four vertical lift motors for VTOL operations and a single rear pusher propeller for fixed-wing flight. An advanced flight control system manages transitions between these modes. This hybrid approach addresses a key operational limitation: traditional fixed-wing aircraft require runways or catapults, whereas multirotor systems typically have limited endurance, with flight times of 30 to 90 minutes. The VF13E supports a swappable payload system compatible with a range of specialized aerial imaging and sensing equipment. ​ Electro-optical systems: Digital single-lens reflex (DSLR) and compact cameras designed for high-resolution reconnaissance photography. Advanced sensors: LiDAR units for topographic mapping and structural analysis. Multispectral imaging: Payloads designed for agricultural assessment and environmental monitoring. Thermal reconnaissance: Infrared cameras for night-time or concealed-target identification. Custom payloads: Modular integration supports a variety of mission-specific sensors within a two-kilogram payload capacity.
