2B11 Sani Russian 120mm Towed Mortar
2B11
Towed Mortar
Other
Basic Information
Name
2B11 Sani Russian 120mm Towed Mortar
Designation
2B11
Alternate Designation
—
Equipment Type
Towed Mortar
Manufacturer
Motovilikha Plants
Date of Introduction
1981
Description
The 2B11 Sani Russian 120mm Towed Mortar is a 120 mm mortar developed by the Soviet Union in 1981 and subsequently fielded in the Soviet Army. The basic design for the 2B11 was taken from the classic Model 1943 120 mm mortar, and incorporated changes to make the mortarless heavy. Is a part of the 2S12 Sani. The 2B11 has proliferated to other countries primarily as result of the collapse of the Soviet Union.
Ground Specifications
Crew
5
Mobility Type
Towed
Main Weapon
120mm mortar
Range
7.2 km
System
Alternative Designations
2B11 Sani
Type
Towed Mortar
Manufacturer
Motovilikhinskiye Zavody Special Engineering and Metallurgy JSC
Crew
5 ea

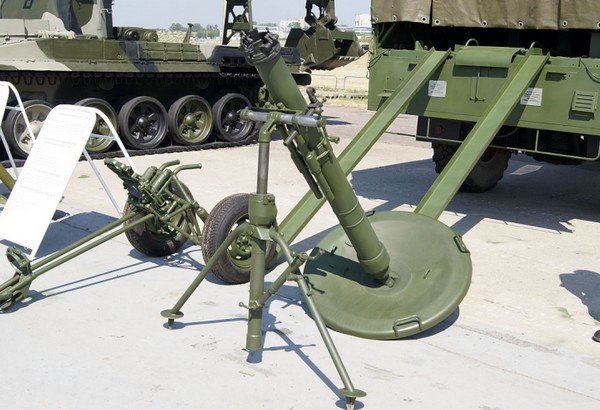

Components
Launch tube, bipod assembly, baseplate, and an MPM-44M optics set.

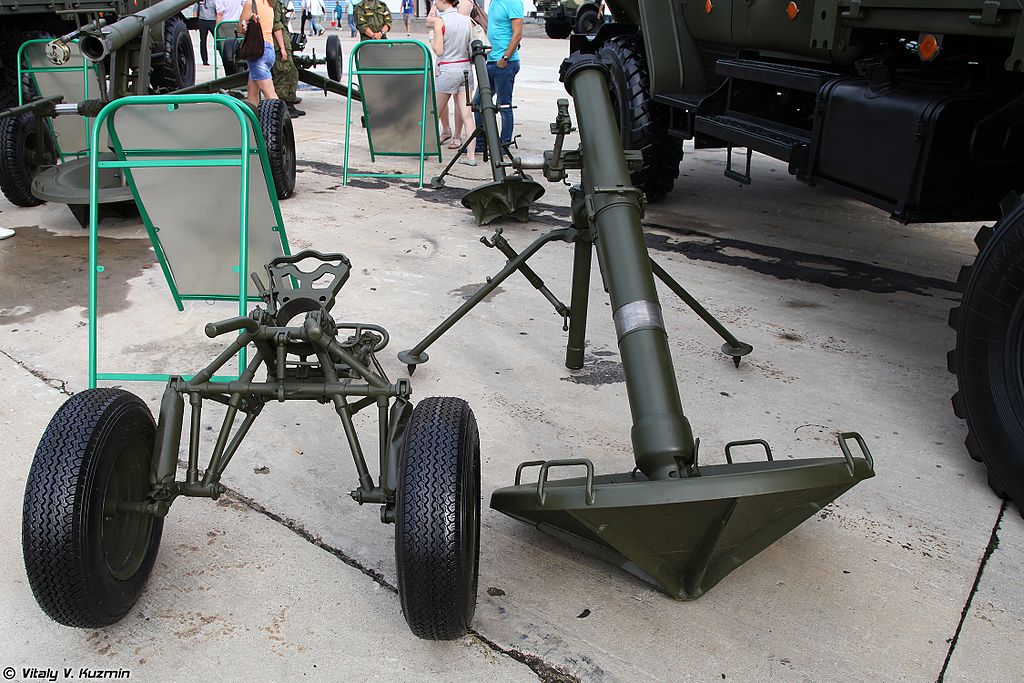

Carriaage
2F510 2x1 wheeled transport chassis
Maximum Elevation
+45° (+800 mils)
Minimum Elevation
+80° (+1,422 mils)
Traverse, On Bipod
±5° (±89 mils)
Traverse, On Baseplate
±26° (±462 mils)
Maximum Rate of Fire, Unadjusted Sighting Between Rounds
10 rds/min
Maximum Rate of Fire, Adjusted Sighting Between Rounds
15 rds/min
Maximum Firing Range
7.18 km
Minimum Firing Range
0.46 km
Time Required to Transition from Traveling to Firing
Less than 3 mins
Sights
MPM-44M
Dimensions
Length, In Traveling Mode
1,950 mm
Length, Barrel
1,740 mm
Height in Traveling Mode
1,540 mm
Width in Traveling Mode
1,040 mm
Weight, Firing Position
210 kg
Weight, Travelling Mode
300 kg
Weight, Barrel Assembly
74 kg
Weight, Barrel Support
55 kg
Weight, Baseplate
80 kg
Ammunition
Other Ammunition Types
All standard 120-mm mortar rounds, including Frag-HE-RA to 9,100m. See pgs 7-59-61, and -71.
Ammunition (Option 1)
Name
3OF843B
Type
Frag-HE
Caliber
120 mm
Minimum Indirect Fire Range
450 m
Maximum Indirect Fire Range
7,000 m
Complete Projectile Weight
16.80 kg
Muzzle Velocity
325 m/s
Fuze Type
GVMZ-7 PD
Ammunition (Option 2)
Name
INA
Type
Smoke
Caliber
120 mm
Minimum Indirect Fire Range
1,000 m
Maximum Indirect Fire Range
6,800 m
Complete Projectile Weight
16.70 kg
Muzzle Velocity
INA
Fuze Type
PD
Ammunition (Option 3)
Name
S-843
Type
Illumination
Caliber
120 mm
Minimum Indirect Fire Range
1,000 m
Maximum Indirect Fire Range
5,300 m
Complete Projectile Weight
16.80 kg
Muzzle Velocity
INA
Fuze Type
T-1 TSQ
Details
Country of Origin
Russia
Category
Non-Self Propelled Mortar Systems
Land > Infantry Weapons > Non-Self Propelled Mortar Systems
Filter Label
2
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
1.95 m
Width
1.04 m
Height
1.54 m
Weight
210 kg
Operators (14)
Russia
Ukraine
Poland
Belarus
Côte d'Ivoire
Estonia
Georgia
Kazakhstan
Latvia
Lithuania
Senegal
Uzbekistan
Venezuela
