M1082 American Light Medium Tactical Vehicle (LMTV) Trailer
M1082
Light Medium Tactical Vehicle (LMTV)
Other
Basic Information
Name
M1082 American Light Medium Tactical Vehicle (LMTV) Trailer
Designation
M1082
Alternate Designation
M1082
Equipment Type
Light Medium Tactical Vehicle (LMTV)
Manufacturer
—
Date of Introduction
1997
Description

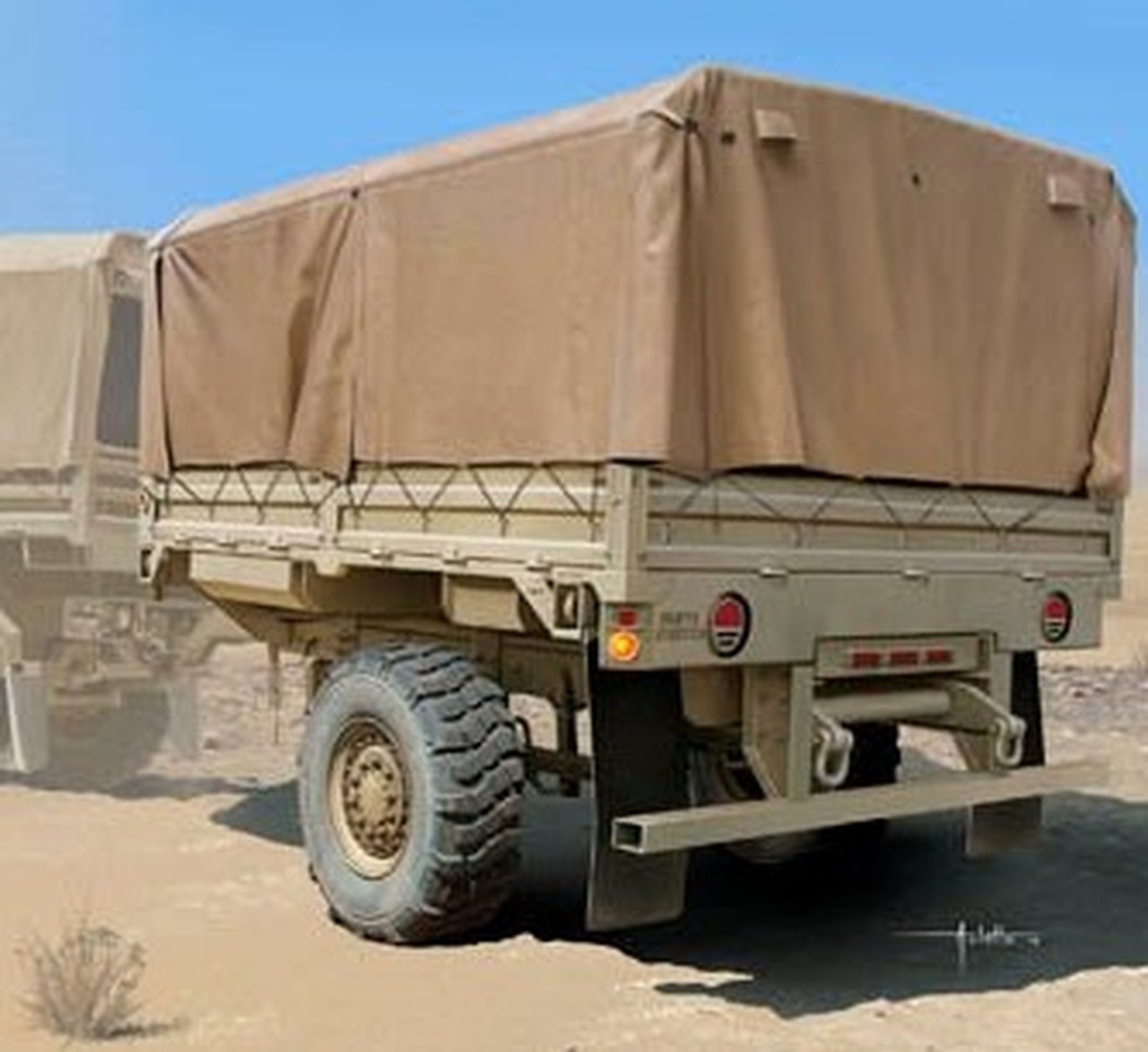

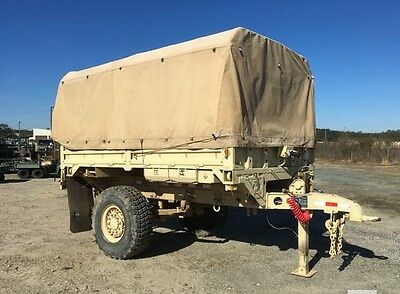

The XM1082 LMTV Trailer (LMTVT) is designed to be towed by the LMTV family of vehicles. The M1082 trailer is a single axle trailer with a gross payload capacity of 5000 pounds. The trailer is equipped with an air brake system actuated from the prime mover brake systems and a parking brake system to prevent movement of the trailer when not connected to the prime mover. A canvas and bows kit is provided to protect the cargo from the elements.
Ground Specifications
Active Protection
None
System
Alternative Designation
M1082
Type
Light Medium Tactical Vehicle (LMTV) Trailer
Family
FMTV Series
Dimensions
Length, Overall
5,321 mm
Cargo Bed Length
3,780 mm
Height. Overall
2,002 mm
Deck Height Empty
1,532 mm
Deck Height Full
1,448 mm
Width, Overall
2,438 mm
Width, Cargo Bed (Inside)
2,306 mm
Curb Weight
2,953 kg
Gross Weight
5,221 kg
Ground Clearance, Empty
406 mm
Ground Clearance, Loaded
343 mm
Maximum Payload
2,268 kg
Automotive
Maximum Grade
60%
Side Slope
30%
Fording
1,524 mm
Maximum Payload
2,268 kg
Anti Lock System
Yes
Cargo Bed Construction
All-steel, E-coat rustproofing dropside with side rail storage
Ladder
Stowed, metallic
Tie Down Points
Yes
Standard Options
Bows and tarp kit
Electric System
12/24 Volt with blackout
Tires
395/80R20
Integral Sling Bar
Slung under CH-47 and CH-53
Suspension
High travel single axle leaf parabolic spring with anti-sway bar
Protection
Armor
INA
Active Protection System
No
NBC Protection
INA
Smoke Equipment
INA
Details
Country of Origin
United States
Category
Trailers
Land > Trailers
Filter Label
M
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
5.32 m
Width
2.44 m
Height
—
Weight
5221 kg
Operators (14)
United States
Israel
Afghanistan
Argentina
Cameroon
Canada
Iraq
Jordan
New Zealand
Saudi Arabia
Singapore
Somalia
Thailand
United Arab Emirates
