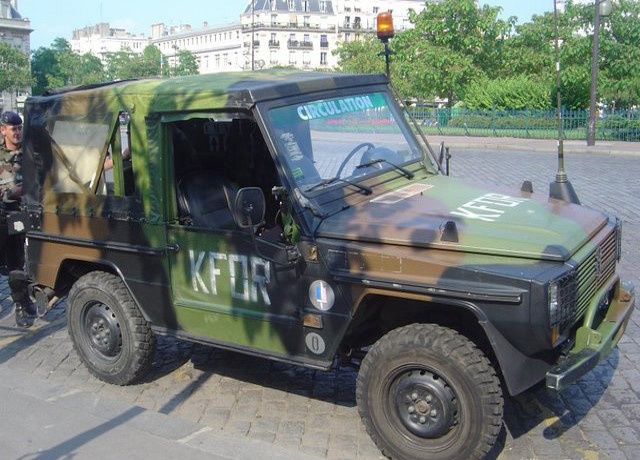

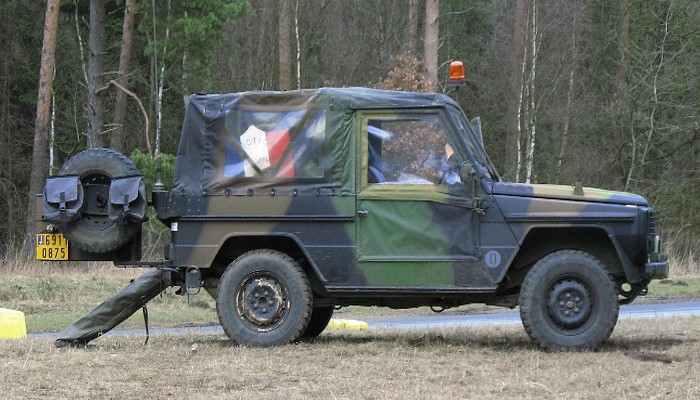

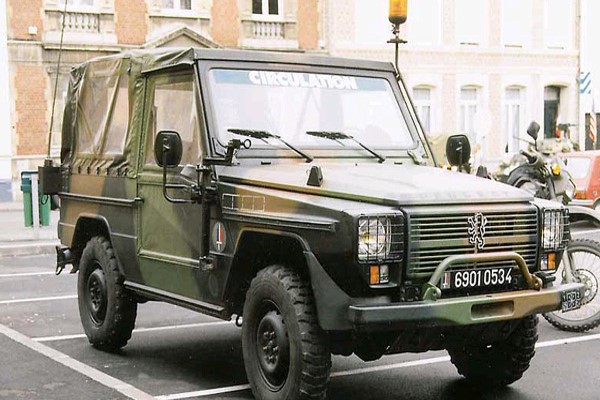

Peugeot P4 French 4x4 Light Utility Vehicle

Peugeot P4

Light Utility Vehicle
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Peugeot P4 French 4x4 Light Utility Vehicle
Designation
Peugeot P4
Alternate Designation
Peugeot P4
Equipment Type
Light Utility Vehicle
Manufacturer
Date of Introduction
1982
Description

The P4 is an unarmoured off-road vehicle used by the military of France. It was manufactured by Peugeot but is now manufactured by Panhard. It is to be replaced with the PVP by Panhard. The P4 is a derivative of the Mercedes Geländewagen military version built under license by Peugeot for the French military. Peugeot did not have a licence to export the vehicle anywhere else than to the countries bound to France by defence agreements. It's scheduled to be replaced by the ACMAT Light Tactical Vehicle Station Wagon. The Peugeot P4 is a light, unarmoured, four-wheel-drive vehicle manufactured by Peugeot, and used by the Military of France under the designation of "Véhicule léger tout-terrain" ("Light all-terrain vehicle"). It is based on the Mercedes-Benz G-Class and equipped with Peugeot engine and equipment. In the late 1960s, the French army decided that its 10,000 Jeeps needed to be replaced. The replacement vehicle would carry four men with radio equipment and would be small enough to be parachuted and transported by plane. After many technical issues, the new vehicle was designed in the 1970s. Agreement was reached between Peugeot and Mercedes to co-produce the vehicle on a 50:50 basis. Peugeot installed the engine of the Peugeot 504 and the transmission of the Peugeot 604 on the Mercedes-Benz G-Class; it also installed the electrical systems, welded the exterior and painted the car. The rest was done by Mercedes. The plant in Sochaux did the final assembly. The first prototype was tested in 1978, beginning a long series of tests and trials, notably a rally in south Algeria with a petrol and a diesel P4. The French Army ordered 15,000 P4s, both petrol and diesel versions; in 1981, the order was reduced to 13,500 units with the downsizing of the Army. From 1985, production was transferred to Panhard in Marolles-en-Hurepoix, where 6,000 vehicles were produced. In 2016, P4s were donated to the Cameroonian military for its special forces units. A civilian version was made, but encountered little success because of the high price and a poor power-to-weight ratio.

Ground Specifications
Crew 1
Engine Gasoline (78 hp)
Active Protection None
Range 600.0 km
Variants
P4D In 1992, the Army converted their petrol P4s into diesel P4D (P4 Diesel) models. The conversion was executed by Panhard (1300 VLTT) and the Établissements régionaux du matériel. The engine, a 2.5-liter Peugeot four-cylinder, is the same as used in the original diesel P4.
P4P The P4 P (P4 Protégé, "protected P4") is an armoured version, with 80 units built in the 1990s. An armored version was made at the request of Peugeot by CBH Institutions (Constructions Blindées of Hardricourt). This version has been evaluated by the French Army and commissioned by the Navy for the Protection of sensitive sites. Five different versions were produced. P4 CBH AKIS 2400 P4 CBH SUPER AKIS 2850 P4 CBH 3120 The four digits at the end of the name signify the three wheelbases of 2,400, 2,850, or 3,120 mm (94.5, 112.2, or 122.8 in) that were available. Some P4 armored CBH have been manufactured for use in Lebanon. An operation Manufacturer and the GIGN was conducted in November 1988 for testing rolling over 24 hours. The P4 Shielded CBH AKIS blue police carried out the range of 1000 km to the average of 134.5 km per hour and the total distance of 3180 km in 24 hours is an average of 132.5 km / hour with 4 men on board. The engine was a 2.5-litre turbo exchanger amended by CBH, which had an output of 150 hp. This record was not approved at the request of the Gendarmerie.
P4 VPS Version of the P4 for the 1st Marine Infantry Paratroopers Regiment. They are equipped to have greater firepower and a higher degree of autonomy: A machine gun MIT50 (calibre 12.7 mm) coaxial A machine gun-type ANF1 (7.62 mm calibre) River crossing equipment
System
Alternative Designation Peugeot P4
Type Light Utility Vehicle
Manufacturer INA
Crew 1 ea
Passenger Capacity 3 ea
Note The P4 can be fitted with various adapters for mounting machine guns and other weapons. These were used by recon units. Some vehicles were fitted with MILAN ATGW launchers. These were used by motorized infantry units.
Dimensions
Length 4.2 - 4.6 m
Width 1.7 m
Height 1.9 m
Maximum Load 0.5 t
Weight, Empty 1.75 t
Automotive
Engine Name Peugeot XN8
Engine Type Petrol
Engine Power 78 hp
Range 600 km
Speed, Maximum Road 118 km/h
Speed, Average Cross INA
Speed Maximum Swim Not Amphibious
Gradient 70 %
Side Slope 30 %
Vertical Step 0.5 m
Trench 0.5 m
Fording Depth 0.5 m
Protection
Armor INA
Applique Armor Available
Active Protection System No
Mine Clearing No
Self-Entrenching Blade No
NBC Protection INA
Smoke Equipment INA
Details
Country of Origin France
Category Tactical Utility Vehicles
Land > Infantry Vehicles > Tactical Utility Vehicles
Filter Label
P
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
4.2 m
Width
1.7 m
Height
1.9 m
Weight
1750 kg
Operators (1)
France
