Vaygach Class (Project 19910 Class) Russian Hydrographic Survey Vessel
Vaygach Class
Hydrographic Research Vessel / Medium Intelligence Ship
Other
Basic Information
Name
Vaygach Class (Project 19910 Class) Russian Hydrographic Survey Vessel
Designation
Vaygach Class
Alternate Designation
Vaygach Class; Project 19910 Class
Equipment Type
Hydrographic Research Vessel / Medium Intelligence Ship
Manufacturer
Vostochnaya Verf Shipyard, Vympel Shipyard, Blagoveshchensk Shipbuilding Plant
Date of Introduction
2008
Description

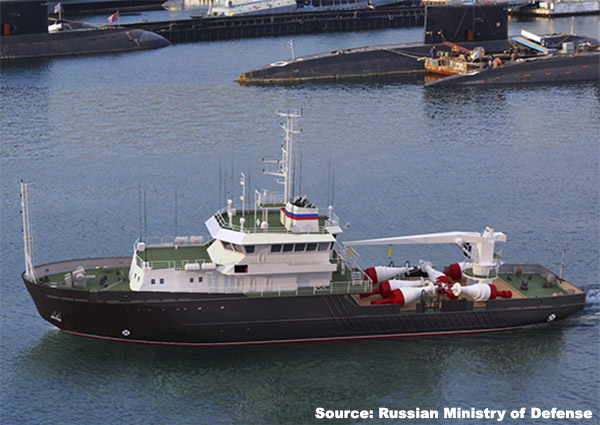

Vaygach Class (Project 19910 Class) Russian Hydrographic Survey Vessels are in service with the Russian navy. The vessels perform hydrographic tasks, installing navigation buoys, transporting cargo to remote coastal navigation stations and lighthouses, and other such tasks.
Naval & Littoral Specifications
Crew
17
Beam
11.40 m
Draft
3.18 m
Variants

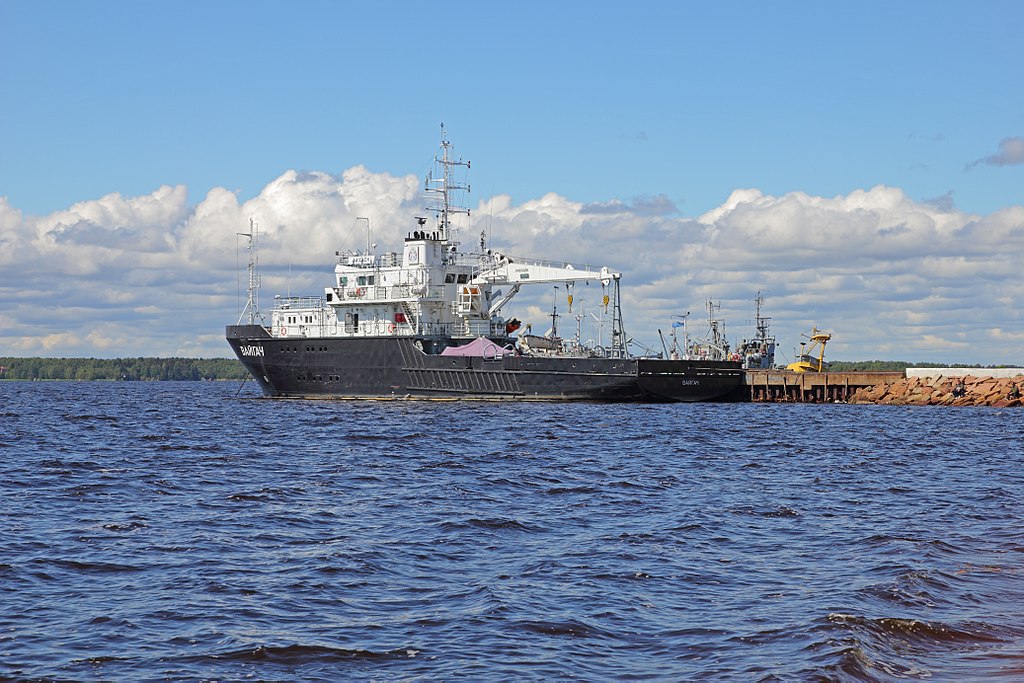

Vaygach
Commissioned: 2007
Status: Active
Fleet: Baltic Fleet

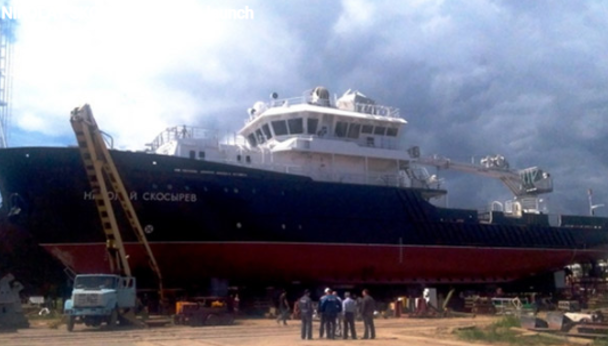

Nikolay Skosyrev
Commissioned: 2020
Status: Active
Fleet: Northern Fleet
Yakov Lapushkin
Commissioned: 2021
Status: Under Construction
Fleet: INA
Alexandr Rogotskiy
Commissioned: 2019
Status: Active
Fleet: Pacific Fleet
Vasily Bubnov
Commissioned: 2023
Status: Under Construction
Fleet: INA
Victor Faleev
Commissioned: 2013
Status: Active
Fleet: Pacific Fleet
System
Alternative Designation
Vaygach Class; Project 19910 Class
Type
Hydrographic Survey Vessel
Builder
VICTOR FALEYEV: Vostochnaya Verf Shipyard, Vladivostok, Russia;
NIKOLAY SKOSYREV, YAKOV LAPUSHKIN: Vympel Shipyard, Rybinsk, Russia;
ALEKSANDR ROGOTSKY: Blagoveshchensk Shipbuilding Plant, Blagoveshchensk, Russia.
Crew
17 ea
Scientists
5 ea
Crane
A two-hitch electro-hydraulic crane is fitted to service buoys and transfer cargo.
Crane Capacity
8.0 ton
Crane Boom Length
39.0 m
Note
The vessels perform hydrographic tasks, installing navigation buoys, transporting cargo to remote coastal navigation stations and lighthouses, and other such tasks.
Dimensions
Length
59.0 m
Beam
11.4 m
Draft
3.18 m
Displacement, Standard
1,270 tons
Displacement, Full Load
INA
Propulsion System
Engine Name
INA
Engine Type
2 x Diesel Engine
Engine Power
2 x 1,000-kW
Generators
1 x 160 kW diesel generator
Electric Motors
2 x Electric Motors
Maximum Range
3,500 nm
Maximum Speed
12.5 knots
Endurance
25 days
Hydrographic Survey Equipment
Note
The vessels are equipped to conduct hydrographic surveys as well as oceanographic and hydrometeorological research.
Radar Systems
Navigation Radar
2 x MR-231 navigation radars.
Protection
Hull
The hull is reinforced to conduct operations in ice.
Countermeasures
No
NBC Water Washdown System
Yes
Details
Country of Origin
Russia
Category
Naval
Naval
Filter Label
V
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
59 m
Width
11.4 m
Height
—
Weight
1270000 kg
Operators (1)
Russia
