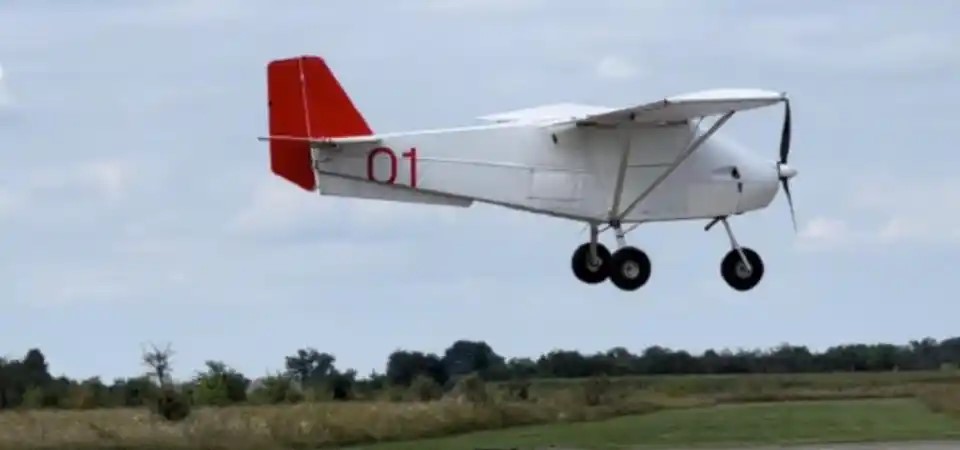

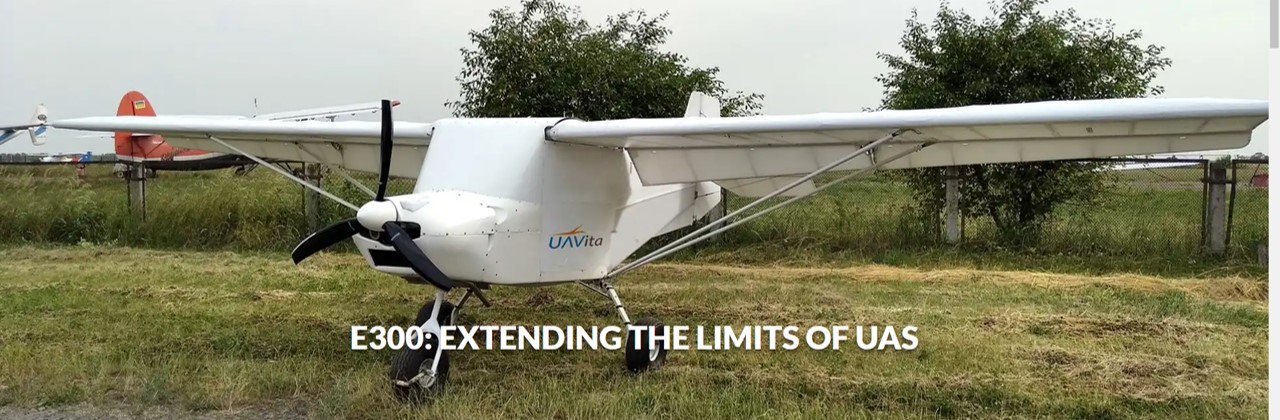

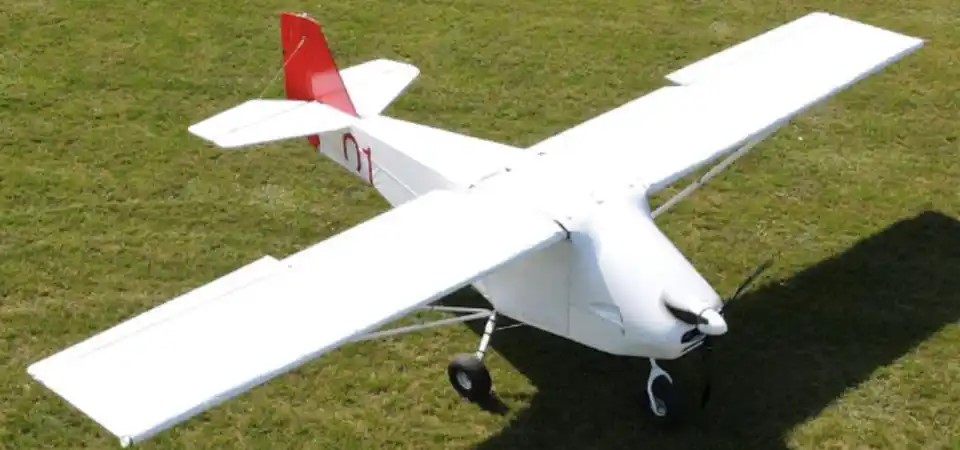

E300 Canadian Unmanned Aerial Vehicle (UAV)
E300
Tactical Unmanned Aerial Vehicle (UAV)
Other
Basic Information
Name
E300 Canadian Unmanned Aerial Vehicle (UAV)
Designation
E300
Alternate Designation
E300
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
Uavita
Date of Introduction
2021
Description
The E300 Canadian Unmanned Aerial Vehicle (UAV) is a fixed wing UAV designed for the most demanding work. It’s payload capacity of 300 kg, 3,150 km autonomous flight range, the ability to control by on-board autopilot as well as manually by remote operator makes it the ultimate UAS.
Air & Air Defense Specifications
Cruise Speed
135.0 km/h
Range
675.0 km
Endurance
5.00 hrs
Service Ceiling
5000 m
Wingspan
8.50 m
Payload Capacity
300 kg
System
Alternate Designation
E300
Type
Unmanned Aerial Vehicle (UAV)
Manufacturer
Uavita
Payload Capacity
300 kg including fuel
Cargo Capacity Excluding Fuel
38-243 kg
Command
GCS LoS : SISO/MIMO up to 220 km, BVLoS : GSM/LTE, SATCOM
Navigation
satellite (protected), inertial
Camera
EO(1920 x 1080) / IR(640 x 480) / LRF (optional)
Takeoff/Landing Roll Distance
100-150 m; autonomous runway, soft field
Dimensions
Length
5.72 m
Height
INA
Wingspan
8.50 m
Wing Area
14.1 m2
Maximum Takeoff Weight
540 kg
Automotive
Engine Name
INA
Engine Type
.
Engine Power
97-100 hp , 1352 2592 cc , (4 stroke)
Fuel
RON 95 (AKI4 91)
Cruise Speed
135-150 km/h
Maximum Range
675 km (3,150 km with additional tanks)
Rate of Climb
5 m/s
Service Ceiling
5,000 m
Endurance
5 hours (23 hours with additional tanks)
Details
Country of Origin
Canada
Category
UAVs
Air > UAVs
Filter Label
E
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
5.72 m
Width
8.5 m
Height
—
Weight
540 kg
Operators (2)
Ukraine
Canada
