DURO IIIP (DURO GMTF) Swiss 6x6 Multi-Role Armored Vehicle
DURO IIIP
Multipurpose Armored Vehicle
Other
Basic Information
Name
DURO IIIP (DURO GMTF) Swiss 6x6 Multi-Role Armored Vehicle
Designation
DURO IIIP
Alternate Designation
DURO IIIP; DURO GMTF
Equipment Type
Multipurpose Armored Vehicle
Manufacturer
General Dynamics European Land Systems (GDELS)
Date of Introduction
2007
Description

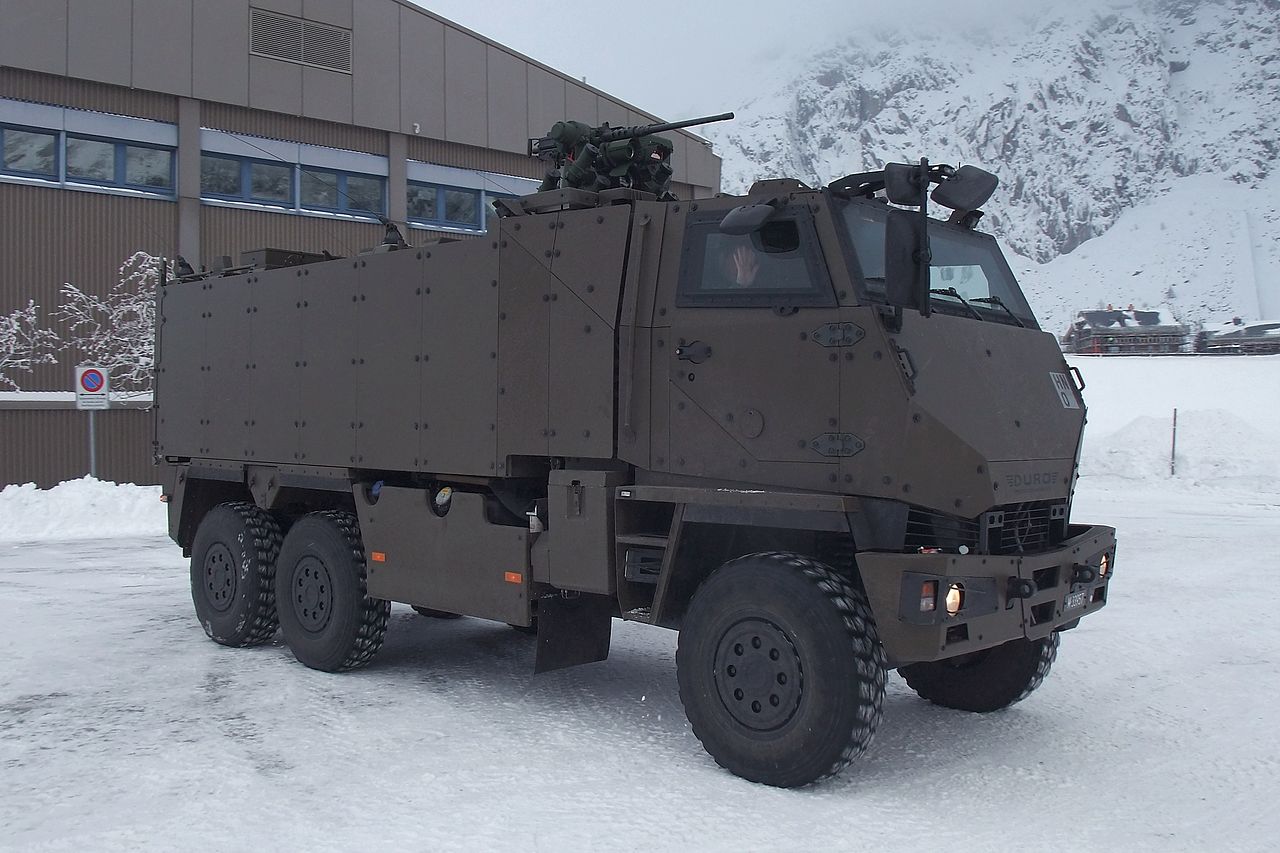

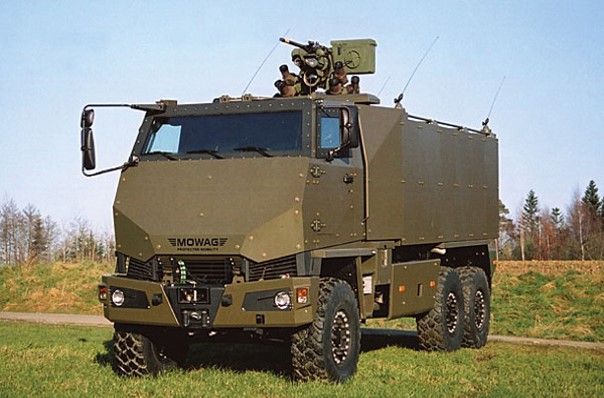

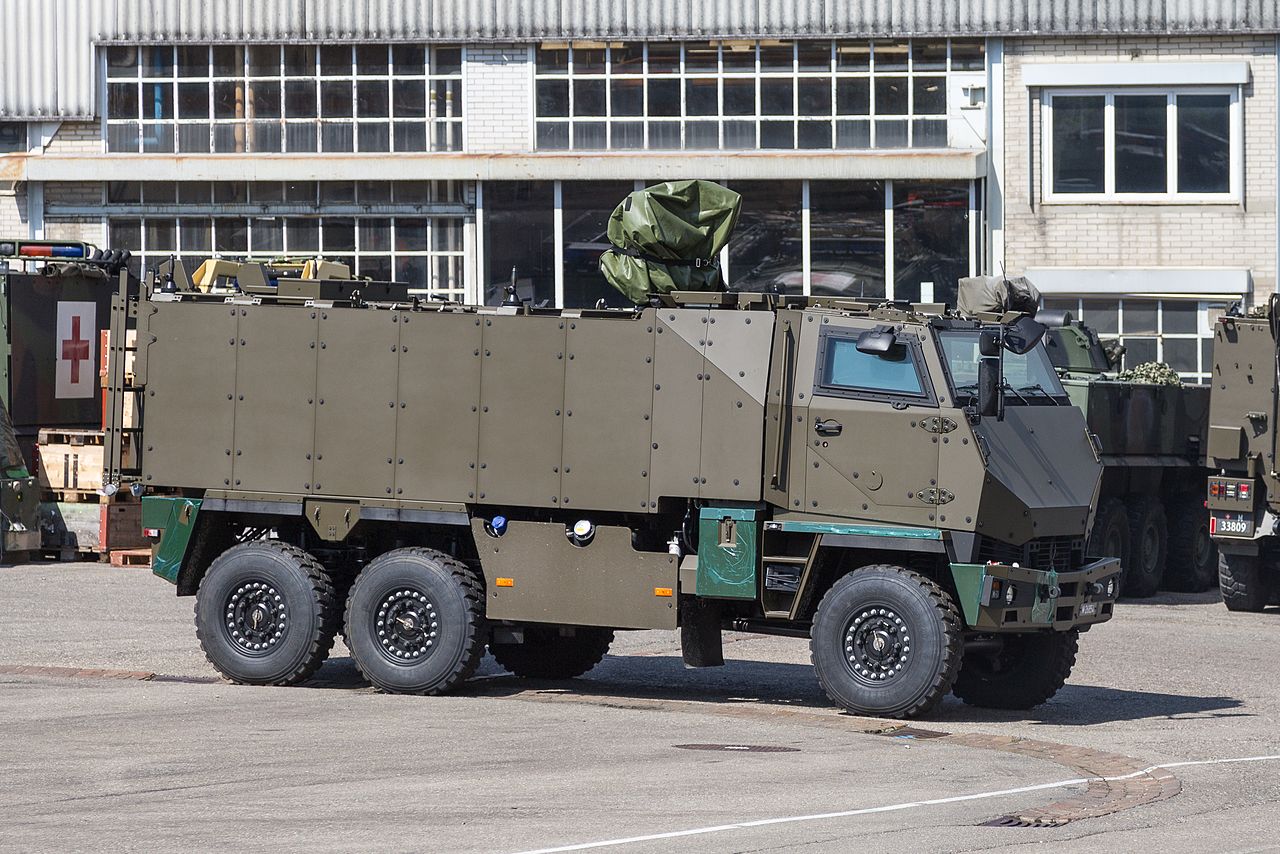

The DURO IIIP is a modular vehicle based on a common chassis to which different mission modules can be fitted. In its most numerous configuration the vehicle is used as an APC, although it may more accurately be thought of as a protected mobility platform designed to patrol contested areas, rather than traverse a fire zone to enable a section of infantry to engage a target.
Ground Specifications
Crew
2
Engine
6-Cylinder Turbocharged Diesel (242 hp)
NBC Protection
Yes
Max Speed
100.0 km/h
Range
600.0 km
Variants
DURO I
The DURO (Durable Robust) is a series of wheeled, multi-purpose military transport vehicles produced by General Dynamics European Land Systems/MOWAG in both four and six wheel drive.
DURO II
INA
DURO IIIP (DURO GMTF)
The DURO IIIP is a modular vehicle based on a common chassis to which different mission modules can be fitted. In its most numerous configuration the vehicle is used as an APC, although it may more accurately be thought of as a protected mobility platform designed to patrol contested areas, rather than traverse a fire zone to enable a section of infantry to engage a target.
YAK
The YAK is an upgraded, ballistic and mine-protected, variant of the DURO IIIP 6x6 chassis used by the German Army. It is made by Rheinmetall MAN Military Vehicles.
System
Alternative Designation
DURO IIIP; DURO GMTF
Type
Multi-Role Armored Vehicle
Manufacturer
MOWAG
Family
DURO Series
Configuration
6x6
Crew
2 ea
Passenger Capacity
12 ea
Dimensions
Length
6.75 m
Width
2.20 m
Height
2.67 m
Weight, Standard
10,000 kg
Weight, Combat
13,500 kg
Wheelbase
3.53 m + 1.20 m
Ground Clearance
0.4 m
Automotive
Engine Name
Cummins ISB 6.7
Engine Type
6 cylinders, turbocharged, diesel
Engine Power
242 hp
Fuel Capacity
180 liters
Maximum Speed
100 km/h
Range
600 km
Gearbox
Allison S 2000 SP
Transfer Box
two speed
Steering
hydraulic power assisted
Suspension
De Dion axles with wheel hub gear, patented roll stabilizer
Electrical System
24V
Brakes
hydraulic over air disc with ABS
Tires
335/80 R20
Gradient
60%
Angle of Approach
42°
Angle of Departure
40°
Fording
0.8 m
Vertical Obstacle
0.50 m
Turning Radius
8 m
Main Weapon System
Note
Those vehicles in service with Switzerland as APCs are armed with a Kongsberg PROTECTOR M151. The M151 incorporates a Rheinmetall soft-mount, which enables the end user to choose from a wide variety of weapons including the M249 SAW MG, an M240B MG, an M2 MG or the Mk19. The M151 allows for the mixing of lethal and less-lethal weapons on a single mount.
Fire Control
Name
INA
Computerized FCS
None
Day Camera
Rheinmetall Vingeye CCD day camera
Thermal Camera
Thales Thermal Imaging Module (TIM) thermal camera
Protection
Hull Armor
The rear and front compartments are armored to provide protection from small arms fire and shell splinters. Some protection is also provided against anti-personnel mines. The armor is believed to consist of a layer of high hardness steel with and additional layer of modular armor, which provides improved protection from ballistic threats. The windows installed in the hull are protected to the same level as the armored sections of the hull. These features provide the occupants with a higher level of protection if the vehicle goes over a mine.
Applique Armor
Available
Explosive Reactive Armor
No
Mine Clearing
No
NBC Protection
Yes
Smoke Equipment
INA
Details
Country of Origin
Switzerland
Category
Wheeled Heavy Armored Vehicles
Land > Heavy Armored Vehicles > Wheeled Heavy Armored Vehicles
Filter Label
D
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
6.75 m
Width
2.2 m
Height
2.67 m
Weight
13500 kg
Operators (3)
Germany
Denmark
Switzerland
