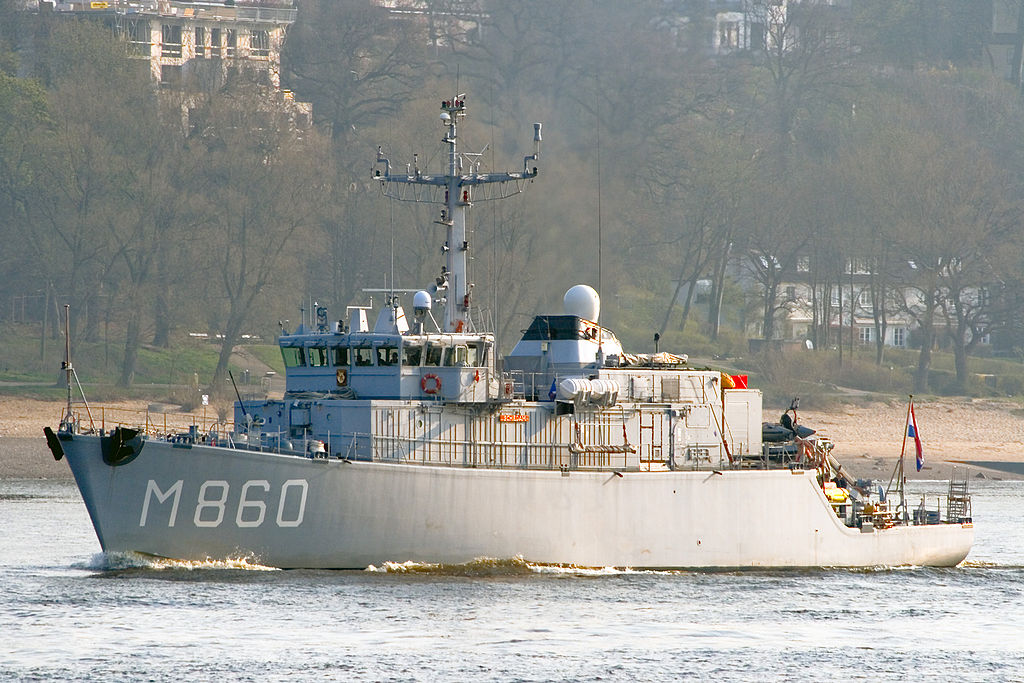

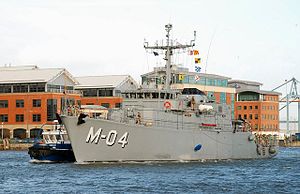

Alkmaar Class Dutch Minehunter

Alkmaar Class

Multi-Role Response Vessel (MRRV)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Alkmaar Class Dutch Minehunter
Designation
Alkmaar Class
Alternate Designation
Alkmaar Class
Equipment Type
Multi-Role Response Vessel (MRRV)
Manufacturer
Date of Introduction
1983
Description

In the Royal Netherlands Navy, the Tripartites are known as the Alkmaar class. The Alkmaars were originally of similar design to the Belgian and French versions, with a standard displacement of 520 tonnes (510 long tons) and 553 tonnes (544 long tons) at full load. The displacement later increased to 571 tonnes (562 long tons) standard and 605 tonnes (595 long tons) at full load and then 630 tonnes (620 long tons) standard and 660 tonnes (650 long tons) at full load. The 20 mm gun that was initially mounted was removed, leaving only three 12.7 mm machine guns. Beginning in 2003, the remaining Dutch Alkmaar-class minehunters were upgraded with improved electronics, including Atlas Elektronik INCMS combat data system, Thales 2022 Mk III hull-mounted sonar, Atlas Seafox Mine Identification and Disposal System and a Double Eagle Mk III Mod 1 ROV. The minehunters were constructed at the Van der Giessen-de-Noord yard in Amsterdam, a specially constructed site completed in 1978. Middelburg and Hellevoetsluis were optioned by Egypt, but due to financial issues, were instead completed for the Royal Netherlands Navy. Two ships of a modified design were built for the Indonesian Navy which led to the delay of Vlaardingen and Willemstad's construction. Ships in class (Netherlands) In 2000, three ships (Alkmaar, Delfzijl and Dordrecht) were withdrawn from service, followed by two more (Harlingen and Scheveningen) in 2003. All five were sold to Latvia with handovers beginning in 2007. Four more ships, (Haarlem, Maasluis, Middelburg and Hellevoetsluis) were decommissioned in 2011 following a series of deep budget cuts to the navy.

Naval & Littoral Specifications
Crew 33
Beam 9.00 m
Draft 2.60 m
Variants
Alkmaar Commissioned: 1983 Status: Decommissioned in 2000, sold to Latvia
Delfzijl Commissioned: 1983 Status: Decommissioned in 2000, sold to Latvia
Dordrecht Commissioned: 1983 Status: Decommissioned in 2000, sold to Latvia
Haarlem Commissioned: 1984 Status: Decommissioned in 2011
Harlingen Commissioned: 1984 Status: Decommissioned 2003, sold to Latvia
Scheveningen Commissioned: 1984 Status: Decommissioned 2003, sold to Latvia
Maasluis Commissioned: 1984 Status: Decommissioned in 2011
Makkum Commissioned: 1985 Status: Active
Middelburg Commissioned: 1986 Status: Decommissioned in 2011
Hellevoetsluis Commissioned: 1987 Status: Decommissioned in 2011
Schiedam Commissioned: 1986 Status: Active
Urk Commissioned: 1986 Status: Active
Zierikzee Commissioned: 1987 Status: Active
Vlaardingen Commissioned: 1989 Status: Active
Willemstad Commissioned: 1989 Status: Active
System
Alternative Designation Alkmaar Class
Type Minehunter
Builder Van der Giessen-de-Noord yard in Amsterdam,
Crew The complement of the Belgian ships varies between 33 and 46 depending on mission.
Mine Warfare System Mine countermeasures equipment originally included two PAP-104 Mark 4 remote-controlled submersibles, EVEC 20 plot table, autopilot, Toran and Sydelis radio navigation aids, as well as the Decca HiFix Mark 6 precision navigation system. The mine-detection range of the sonar is greater than 1,640 ft (500 m). An autopilot system is provided. Starting in 1999, the class was fitted with new Consilium Selesmar NN 950 navigational radars.
Mine Identification Atlas Seafox Mine Identification and Disposal System
ROV Double Eagle Mk III Mod 1 ROV
Note Beginning in 2003, the remaining Dutch Alkmaar-class minehunters were upgraded with improved electronics, including Atlas Elektronik INCMS combat data system, Thales 2022 Mk III hull-mounted sonar, Atlas Seafox Mine Identification and Disposal System and a Double Eagle Mk III Mod 1 ROV.
Dimensions
Length 51.6 m
Beam 9.0 m
Draft 2.6 m
Displacement, Standard 510 tons
Displacement, Full Load 540 tons
Propulsion System
Engine Name 1 x Brons-Werkspoor A-RUB 215 x 12 diesel
Engine Type Diesel
Engine Power 1,900 total bhp; 1 shaft
Auxiliary Power 2 x 120-shp ACEC active rudders (for minesweeping)
Bow-Thrusters 2 x 75-shp bow-thrusters
Maximum Speed 15 kts (7 kts hunting)
Maximum Range 3,500 nm at 10 kts
Endurance 15 days
Gun Weapon Systems
Gun Weapon System #1
Name 20 mm modèle F2 gun
Type Naval Gun
Caliber 20mm
Quantity 1 x 20 mm modèle F2 gun
Length INA
Weight 332 kg (732 lb) (without ammunition)
Action Gas unlocked, delayed blowback[1
Elevation −15° to + 65°
Rate of Fire 720 round/min
Muzzle Velocity 1,050 m/s
Effective Firing Range 1,500 m (4,900 ft) against aerial targets
Gun Weapon Systems #1 Ammunition
Type Rifle
Caliber 20 mm
Cartridge 20×139mm
Basic Load INA
Fire Control Systems
FCS Name INA
Computerized FCS No
Combat Data System They are equipped with an Atlas Elektronik IMCMS combat data system.
Radar Systems
Navigation Radar 1 x Decca TM 1229C navigation; or 1 x Consilium Selesmar NN 950 navigation radar
Sonar Systems
Hull Mounted Sonar 1 x Thales 2022 Mk III Sonar
Minehunting Sonar 1 x Thales PVDS Minehunting Sonar
Protection
Active Protection System INA
Countermeasures INA
NBC Water Washdown System Yes
Details
Country of Origin Netherlands
Category Naval
Naval
Filter Label
A
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
51.6 m
Width
Height
Weight
Operators (1)
Netherlands
