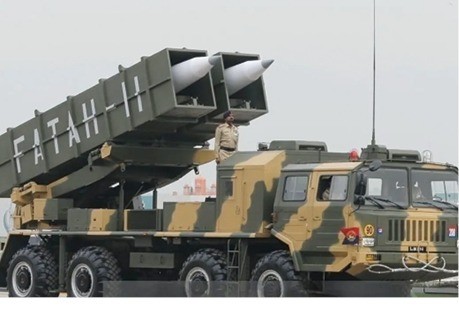

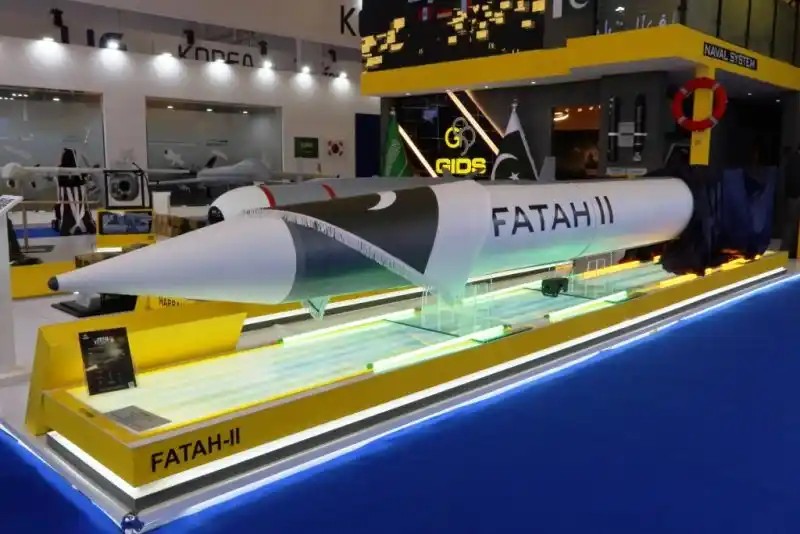

Fatah-II Pakistani 300mm Multiple Launch Rocket System (MLRS)
Fatah-II
Multiple Launch Rocket System (MLRS)
Other
Basic Information
Name
Fatah-II Pakistani 300mm Multiple Launch Rocket System (MLRS)
Designation
Fatah-II
Alternate Designation
Fatah-II
Equipment Type
Multiple Launch Rocket System (MLRS)
Manufacturer
Global Industrial & Defense Solutions (GIDS)
Date of Introduction
2024
Description
The Fatah-II Pakistani 300mm Multiple Launch Rocket System (MLRS) is an extended-range version of Fatah series. According to Pakistani media reports, Fatah-II is designed to follow a flat trajectory, which makes it difficult to detect using a radar. Two guided rockets can be fired from the Fatah-II MLRS.
Air & Air Defense Specifications
Range
290.0 km
System
Alternate Designation
Fatah-II
Type
Multiple Launch Rocket System (MLRS)
Caliber
300 mm
Manufacturer
Global Industrial & Defense Solutions (GIDS)
Chassis
8-wheel drive chassis
Propulsion
It features a single-stage, dual-thrust solid rocket motor.
Warhead
It can carry a unitary blast or blast fragmentation warhead.
Warhead Weight
365 kg
Fuze
INA
Guidance System
Fatah-II features an inertial navigation system (INS) and global navigation satellite services (GNSS); auto-aiming capability; and a levelling, positioning, and orientation system.
Maximum Range
290 km
Minimum Range
100 km
Accuracy
less than 50 m
Operating Temperature
INA
Dimensions
Length
7.5 m
Diameter
300 mm
Weight
INA
Details
Country of Origin
Pakistan
Category
Ground-Launched Ballistic Missiles (GLBM) (50 km - 300 km)
Air > Ground-Launched Ballistic Missiles (GLBM) (50 km - 300 km)
Filter Label
F
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
7.5 m
Width
0.3 m
Height
—
Weight
—
Operators (1)
Pakistan
