Basic Information

Name

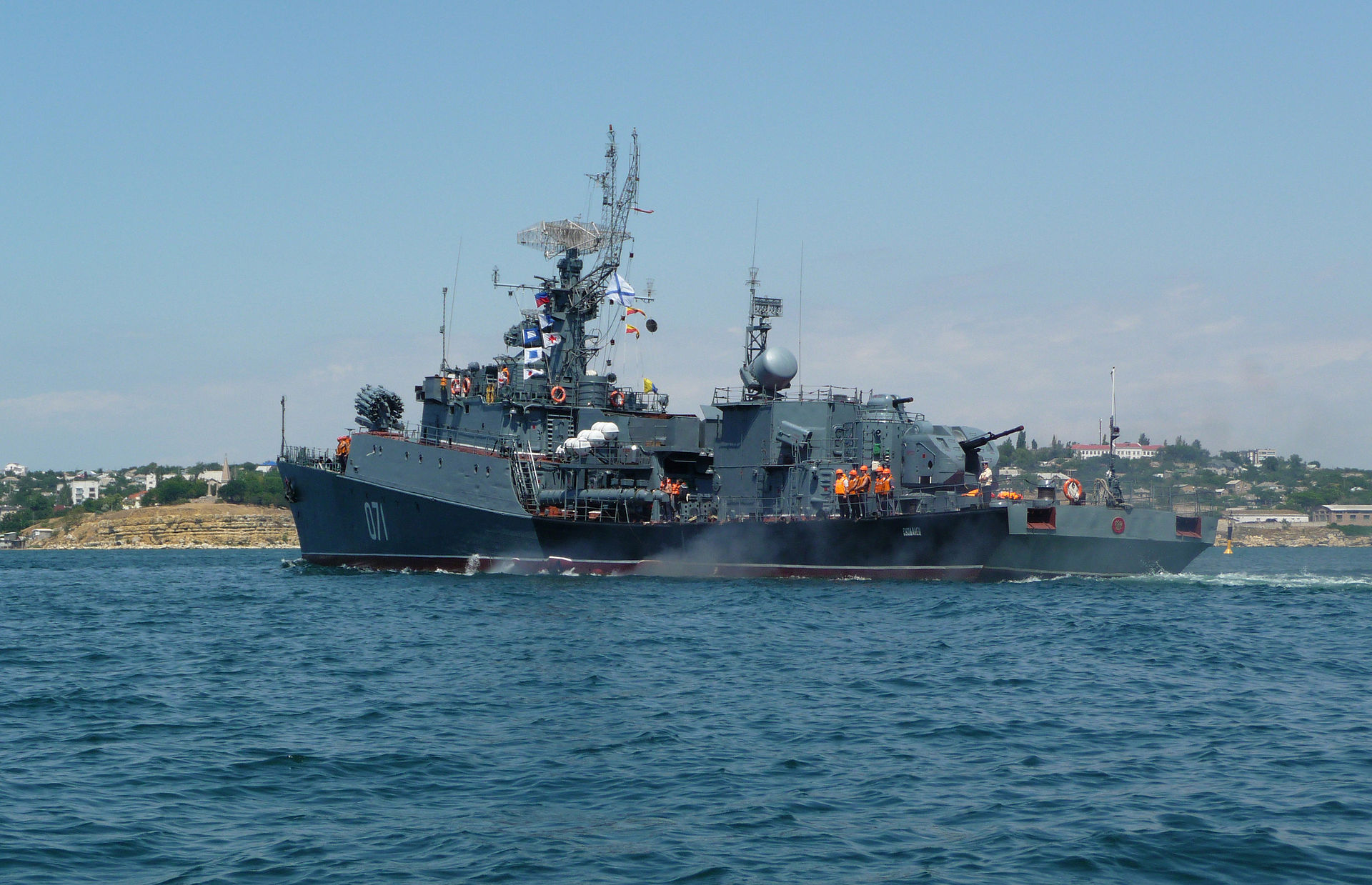

Grisha Class (Project 1124 Class) Russian Anti-Submarine Corvette

Designation

—

Alternate Designation

Grisha Class (Project 1124) Albatros, Anti-submarine Corvette

Equipment Type

Corvette

Manufacturer

Zelenodolsk Gorky Plant

Date of Introduction

2006

Description

The Grisha Class (Project 1124 Class) Russian Anti-Submarine Corvette are a series of anti-submarine corvettes built by the Soviet Union between 1970 and 1990 and later by Russia and Ukraine with newer, upgraded ships introduced in 2006. These ships have a limited range and are largely used only in coastal waters. They have been equipped with a variety of Anti-Submarine Warfare (ASW) weapons and an SA-N-4 'Gecko' surface-to-air missile launcher. All were fitted with retractable fin stabilizers. The designation "corvette" for these ships was a conditional adaptation as the Soviet classification was a small anti-submarine ship. In the Russian Navy, the Grishas are expected to be partially replaced by the Steregushchiy-class corvette.

Naval & Littoral Specifications

Crew 60

Beam 9.80 m

Draft 3.70 m

Variants

Grisha I (1124.1) 12 ships built between 1970 and 1974 and decommissioned by 1979

Grisha II class (1124A) U205 Chernigiv and U206 Vinnitsya are Grisha II Corvettes from the former Soviet border guard units transferred to the Ukrainian border guard, then to the Ukrainian navy.

Grisha II class (1124P) Built for the KGB border guard and marked with P for pogranichnyi meaning "on the border". This class was built only in Zelenodolsk and Vladivostok. These ships had a second 57 mm gun mounting replacing the SA-N-4 missile system forward. 17 ships were built in the 1970s. Two were transferred to the Ukrainian Navy and around seven are in service with the Russian Maritime Border Guard.

Grisha III class (1124M) Built in the late 1970s to early 1980s. These ships incorporated several small scale modifications, including a 30 mm gun and new electronics. Thirty four units were built. About 20 remain in Russian service as of 2020. Two ships were in service with the Lithuanian Navy until 2009.

Grisha IV class (1124K) A single ship was built in Zelenodolsk. This ship was a test ship for the SA-N-9 missile system and later was decommissioned.

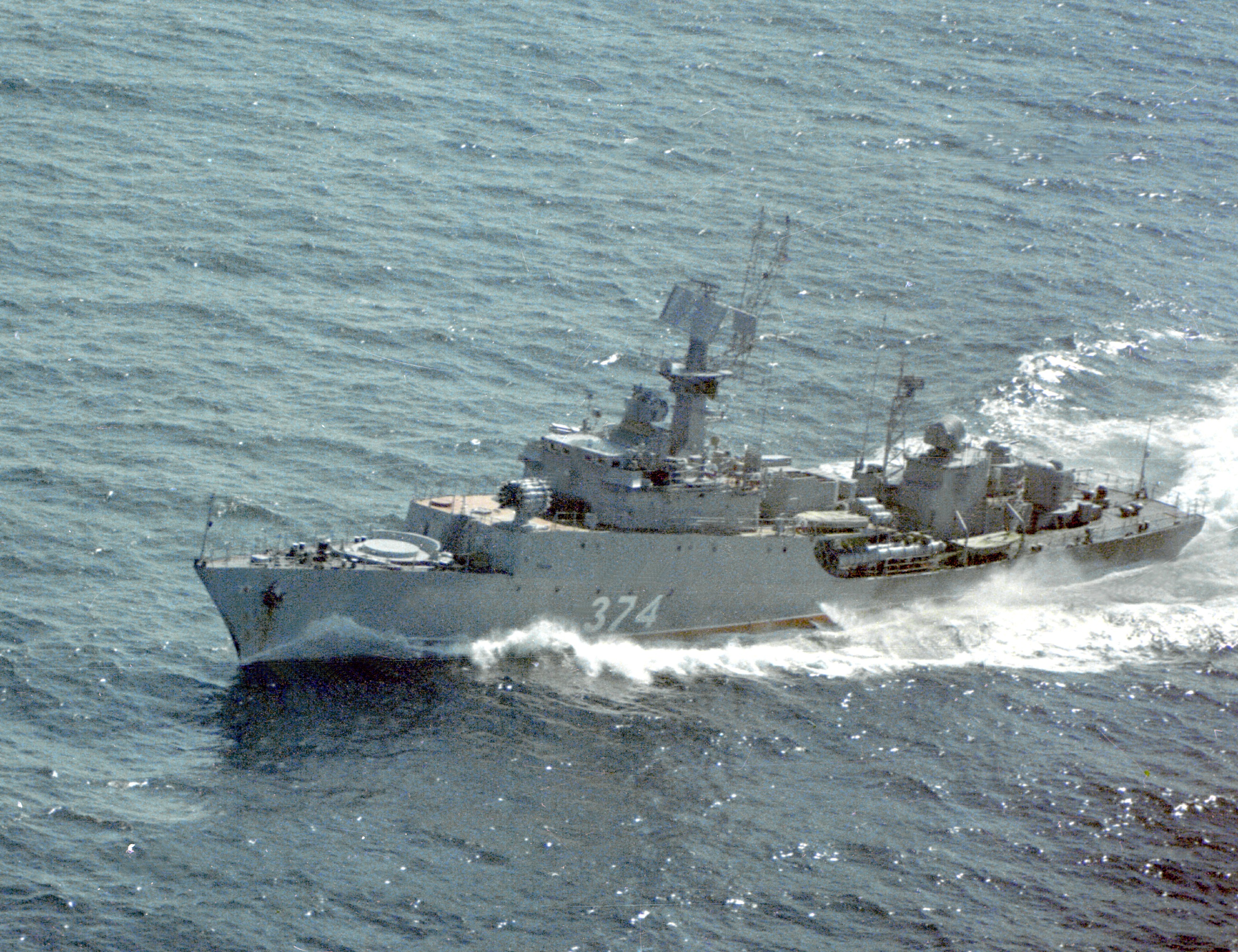

Grisha V class (1124 ME, 1124.4) 30 ships were built between 1985 and 1994 and incorporated further modifications with the twin 57 mm guns being replaced by a single 76 mm gun. About 28 ships remain in the Russian Navy. The Lutsk ASW corvette is also in service.

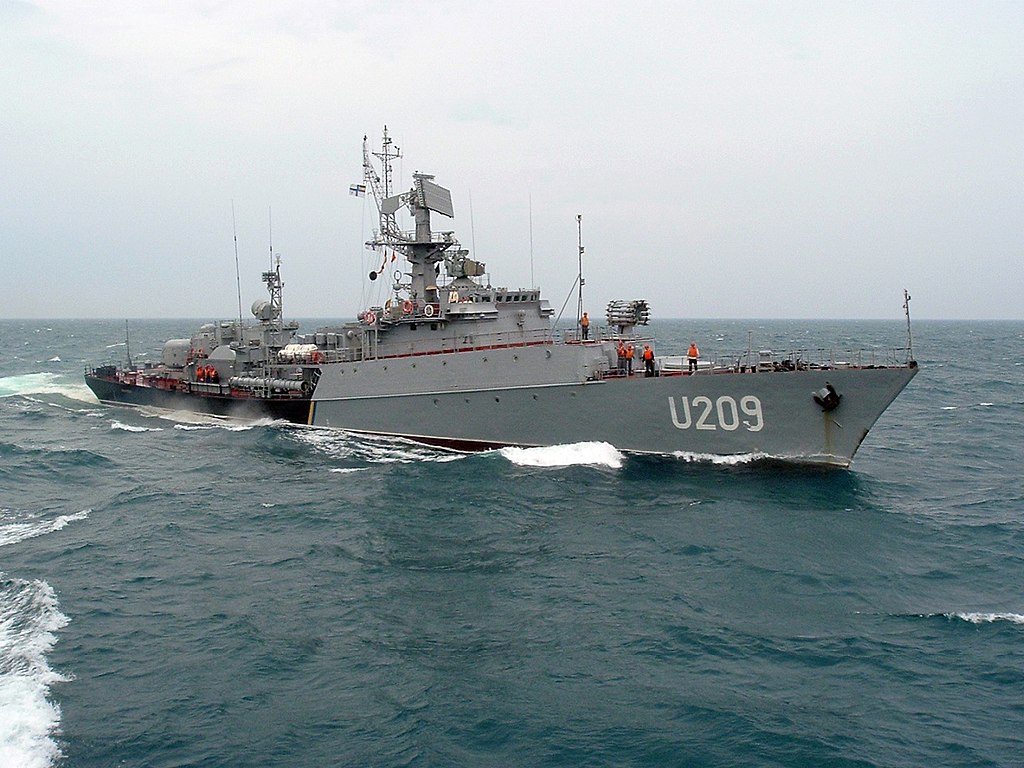

Grisha V class (1124 MU) Ukrainian ships built after the dissolution of the Soviet Union among which is Ternopil that entered service in 2006 with the Ukrainian Navy.

System

Alternative Designation Grisha Class (Project 1124) Albatros, Anti-submarine Corvette

Type Corvette

Builder Zelenodolsk Gorky Plant (340), Zelenodolsk; Leninska Kuznya (302), Kiev; Kirov Shipyard (876), Khabarovsk; Eastern Shipyard (602), Vladivostok

Crew 60 ea

Note The Grisha class antisubmarine ship is designed to to find and destroy high-speed enemy submarines and warships escort convoys in the near sea zone.

Dimensions

Length 71.6 m

Beam 9.8 m

Draft 3.7 m

Displacement, Standard 980 tons

Displacement, Full Load 1,070 tons

Propulsion System

Engine #1 2 x M-507A cruise diesels, 20,000 shp, (2 shafts)

Engine #2 1 x М-8М boost, gas turbine (18,000 shp) (1 shaft)

Power Plant (Electrical) 1 x DG-500 (500 kW), 1 x DG-300 (300 kW), 1 x DG-200 (200 kW)

Propellers 3 ea

Maximum Range 1,200 nm at 20 knots; 2,200 at 14 knots

Maximum Speed 25 knots

Missiles

Missile (Option #1)

Name 20 x 9M33 Surface-to Air missile

Type Surface-to Air missile

Diameter 0.206 m (body)

Length 3.158 m

Weight 128 kg

Wingspan 0.65 m

Propulsion Single-stage solid propellant rocket motor

Magazine 40 missiles

Guidance Command guidance

Interace Radio Frequency

Launch Interval 2 x missies per minute

Range 10 km

Speed 500 m/s

Altitude (max) 3.5 km

Basic Load 20 x 9M33 Surface-to Air missile

Missile #2

Name 10 x Strela-3 9K34 (SA-14 Gremlin) Surface-to Air missile

Type Surface-to Air missile

Diameter 72 mm

Length 1.42 mm

Weight 10.3 kg

Guidance Single channel passive infra-red homing seeker

Envelope Receding and approaching targets

Target Speed (Max) 310 m/sec (receding), 260 m/sec (approaching)

Warhead HE-Frag

Propulsion Single-stage solid propellant rocket motor

Range (Max) 4.5 km

Speed (Max) 630 m/sec

Altitude (Max) 3.0 km

Basic 10 x Strela-3 9K34 (SA-14 Gremlin) Surface-to Air missile

Gun Weapon System

Gun Weapon System #1

Name 1 x AK-176 76.2mm Naval Gun

Type Naval Gun

Caliber 76.2 mm

Weight 11.2 tons (Empty Turret), 13.1 tons (w/ ammunition)

Traverse -168 deg to +168 deg

Traverse Rate 35 deg/sec

Elevation -10 deg to +85 deg

Elevation Rate 30 deg/sec

Rate of Fire 30, 60 or 120 rds/min

Feed Mechanism Automatic Loader

Maximum Range 15.7 km

Muzzle Velocity 980 m/sec

Crew 2 below deck, 2 for manual operation on mount

Fire Control 1 x MR-123-02/76 Fire Control Radar System.

Gun Weapon System #1 Ammunition

Type Rifle

Caliber 76.2 mm

Shell Weight 12.4 kg

Basic Load 304 ROunds

Gun Weapon System #2

Name 1 x AK 630 30mm Close-In Weapon System (CIWS)

Type Close-In Weapon System (CIWS)

Caliber 30 mm

Main Armament 1 or 2 AO-18 autocannons

Secondary Armament 4 x 9A4172 missiles

Barrel Length 1,629 mm

Height 1,070 mm (above deck)

Weight 1,000 kg

Barrels 6 ea

Fire Control System 1 x MR-123 radar and television detection and tracking.

Rate of Fire 4,000–5,000 rounds/min

Muzzle Velocity 880-900 m/s

Maximum Effective Range, Surface Targets 5,000 m

Maximum Effective Range, Aerial Targets 4,000 m

Feed System Belt

Sights Radar / TV-optical

Gun Weapon System #2 Ammunition

Type HEI-Frag, Frag-T, APDS-T

Caliber 30 mm

Shell Weight 0.39 kg

Basic Load 3,000 Rounds

Torpedo System

Name Type 533 Torpedo System

Type 53 cm (21 inch) torpedoes

Primary Function ASUW torpedo

Length 7.2 m

Diameter 53 cm

Weight 2,070–2,300 kg

Fire Controls System (FCS) 1 x Drakon Fire Control System

Range 18,000 meters (20,000 yd)

Speed 45 kn (52 mi/h, 83 km/h)

Guidance System Wake Homing

Warhead 307.6 kilograms (678 lb) high explosive

Rockets

Name RBU-6000 Smerch- 2

Type Anti-Submarine Rocket Launcher System

Weight 3,100 kg (empty)

Length 2.0 m

Width 1.75 m

Height 2.25 m

Elevation -15 deg to +65 deg

Traverse 180 deg

Rocket Type #1 RGB-60 Projectile; Ballistic 1 - 350 m to 1700 m, Ballistic 2 - 1500 m to 5500 m.

Rocket Type #2 90R Projectile; Range: 600 m to 4,300 m.

Basic Load 48 x rockets (Combination type varies, mission/availability dependent).

Mine System

Note Up to 18 x mines can be deployed from depth charge racks.

Fire Control System (FCS)

AK-176 FCS 1 x MR-123 Vympel-A fire control system.

AK-630 FCS 1 x MR-123 radar and television detection and tracking.

Torpedo FCS 1 x Drakon Fire Control System

Radar Systems

Navigation Radar 1 x Don-2 navigation radar.

Air and Search Radar 1 x MR-755 Fregat-MA-1 air/surface search radar.

Fire Control System (FCS) Radars 1 x 4R-33MA Pop Group SA-N-4 Fire Control Radar; 1 x MR-123-01 AK-176 Fire Control Radar.

Sonar Systems

Low-Frequency Hull-Mounted Sonar 1 x MGK-335MC Platina/Bull Horn low-frequency hull-mounted sonar.

Medium-Frequency Dipping Sonar 1 x Shelon'/Elk Tail medium-frequency through-hull dipping sonar.

Protection

Hull INA

Countermeasures Yes

NBC Water Washdown System Yes

EW 1 x Bizan-4B suite with WatchDog intercept.

Depth Charges 2 x depth charge tracks [6 x depth charges per rack].

Decoys PK-16 decoy RL (2 launchers KL-101) and PK-10 Smely (4 KT-216 launchers)
