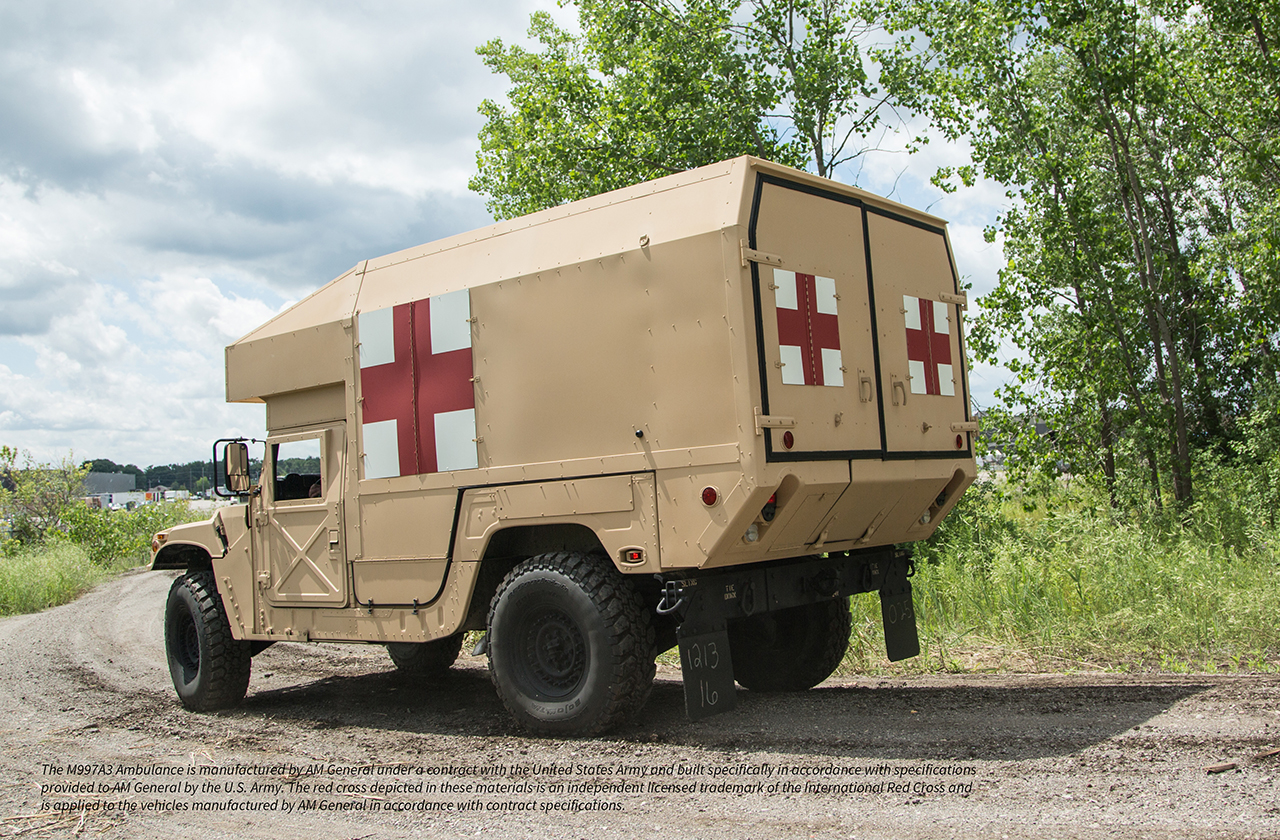

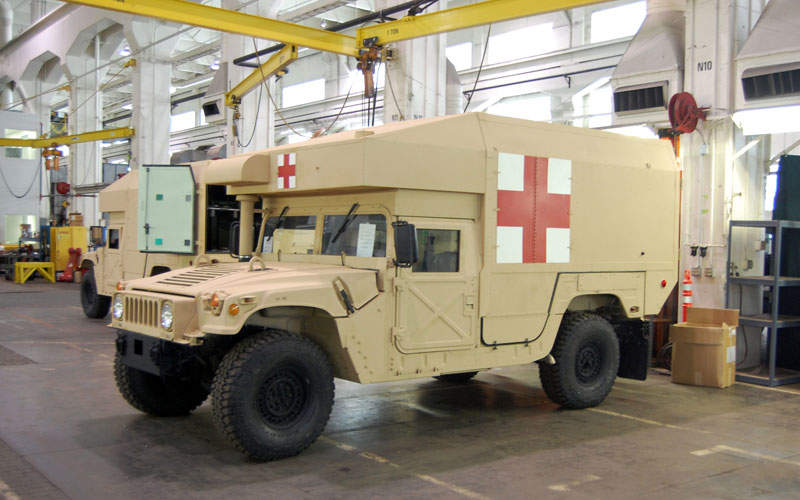

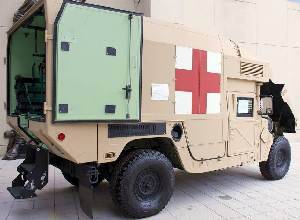

M997A3 HMMWV American 4x4 Ambulance

M997A3 HMMWV

4x4 High-Mobility All-Terrain Ambulance
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
M997A3 HMMWV American 4x4 Ambulance
Designation
M997A3 HMMWV
Alternate Designation
M997A3 HMMWV
Equipment Type
4x4 High-Mobility All-Terrain Ambulance
Manufacturer
AM General
Date of Introduction
1987
Description

Rugged and resilient, the M997A3 is an ambulance configuration of the Humvee family. Equipped with advanced armor protection, these combat ambulances were built to reliably transport causalities from the battlefield to medical aid stations. Capable of transporting up to four litter patients, eight ambulatory patients—or a combination of both—as well as medical personnel, equipment and a driver, the M997A3 is dependable in the face of danger. The ambulance can be heated, ventilated or air conditioned, depending on environmental conditions. For operation in a nuclear, biological or chemical (NBC) environment, the M977A3 can be equipped with a Gas-Particulate Filter Unit (GPFU) with heaters capable of supporting up to seven personnel equipped with either M25 series protective masks or M13 series patient-protective masks. The GPFU sends temperature-controlled, filtered air to individual face masks, increasing protection, making breathing easier and reducing stress and heat fatigue during extended periods of NBC operation.

Ground Specifications
Crew 1
Mobility Type Wheeled (4x4)
Engine 6.5L turbo-charged, diesel fuel injection (160 hp)
Active Protection None
Max Speed 105.0 km/h
Range 483.0 km
Variants
Note *A1 versions *A2 versions *M997A3 ambulance *Expanded Capacity HMMWV *M1114 Up-Armored HMMWV *M1151 /M1152 HMMWV *M1167 Expanded Capacity TOW/Armament Carrier *LOSAT carrier *MOWAG Eagle *M1028 *Ground Based Common Sensor-Light (GBCS-L) *XM1097 "Heavy Hummer" *HMMWV -mounted AMRAAM launcher *Special Operations Force Vehicle Intelligence Vehicle (SOF IV) *Cab-Over Cargo Truck (COCT) *Right-Hand Drive *Desert Mobility Vehicle Systems (DMVS) *Multiple-Launch Rocket System vehicle *Avenger *MSE Shelter and Command Post *Survivable Combat Tactical Vehicle (SCTV)
System
Alternative Designation M997A3 HMMWV
Type 4x4 Ambulance
Manufacturer AM General
Family HMMWV
In Service 1987-Present
Crew 1 ea
Passenger Capacity 8 maximum (can also carry casualties)
Dimensions
Length, Soft Top 4.84 m
Length, Armored 5.16 m
Width 2.16 m
Height, Soft Top 1.83 m
Height, Armored 2.59 m
Wheelbase 3.30 m
Ground Clearance 0.41 m
Vehicle Weight, Soft Top 2,767 kg
Payload Weight, Soft Top 1,906 kg
Gross Weight, Soft Top 4,672 kg
Vehicle Weight, Armored 3,474 kg
Payload Weight, Armored 871 kg
Gross Weight, Armored 4,345 kg
Automotive
Engine Name 1 x General Motors V8
Engine Type 6.5L turbo-charged, diesel fuel injection
Engine Power 160 hp at 3,400 rpm
Transmission automatic w/4 forward gears, 1 reverse gear
Fuel Capacity 94 liters
Range 483 km
Speed, Maximum Road 105 km/h
Speed, Average Cross INA
Speed Maximum Swim Not Amphibious
Gradient 60 deg
Side Slope 30 deg
Vertical Step 0.56 m
Fording Depth 1.52 m
Suspension independent double A-arm with coil spring on all wheels, with front stabilizer bar
Main Weapon System
Note Basic vehicle does not have weapons fitted; armament carrier can be fitted with a 7.62-mm or 12.7-mm machine guns or a 40-mm grenade launcher; TOW carrier has launcher
Protection
Armor INA
Applique Armor Available
Active Protection System No
Mine Clearing No
NBC Protection INA
Smoke Equipment INA
Details
Country of Origin United States
Category Medical Vehicles
Land > Combat Support Vehicles > Medical Vehicles
Filter Label
M
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
Width
2.16 m
Height
2.59 m
Weight
Operators (30)
Israel
Ukraine
Poland
Afghanistan
Argentina
Bahrain
Bosnia and Herzegovina
Chile
Colombia
Djibouti
Ecuador
Greece
Iraq
Jordan
Kazakhstan
Kenya
Kuwait
Lebanon
Luxembourg
Mexico
Morocco
North Macedonia
Philippines
Saudi Arabia
Slovenia
Sudan
Switzerland
Thailand
Tunisia
United Arab Emirates
