Zoe Zetona Norwegian Unmanned Aerial Vehicle (UAV)
Zoe Zetona
Tactical Unmanned Aerial Vehicle (UAV)
Other
Basic Information
Name
Zoe Zetona Norwegian Unmanned Aerial Vehicle (UAV)
Designation
Zoe Zetona
Alternate Designation
Zoe Zetona
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
Acecore
Date of Introduction
2024
Description

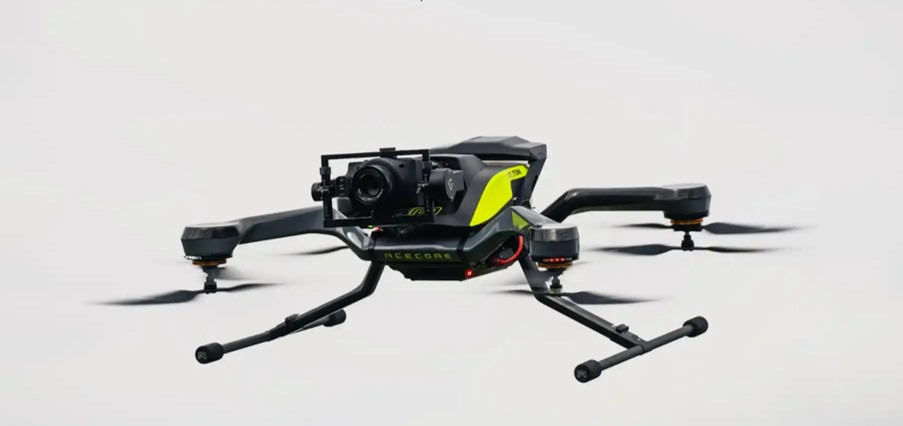

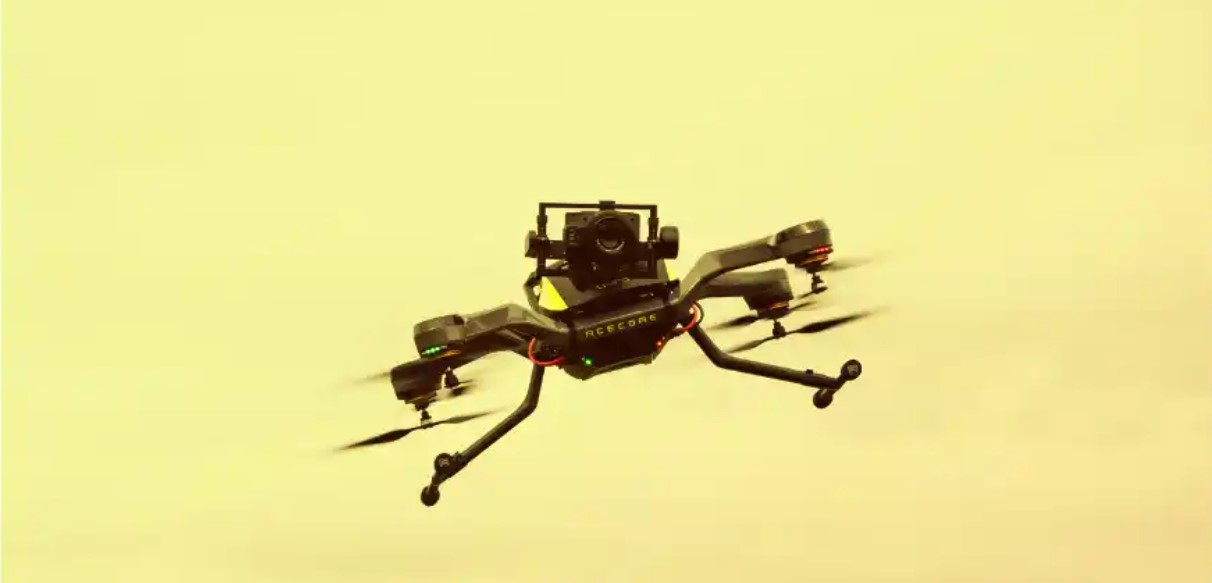

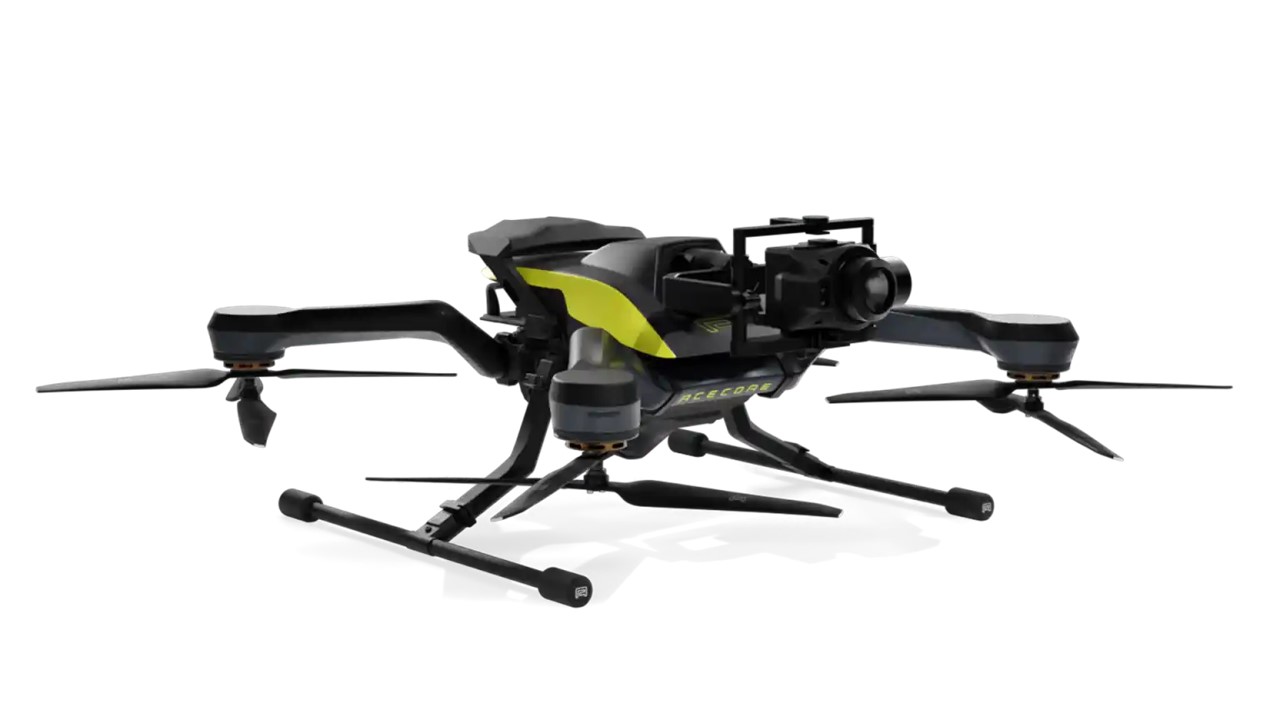

The Zoe Zetona Norwegian Unmanned Aerial Vehicle (UAV) is a lightweight, multipurpose Remotely Operated Aerial Vehicle for commercial use.Its compact and aerodynamic frame, supporting eight rotors, is designed to meet the versatile demands for the inspection and mapping industries. Although the Zetona is lightweight, it is still powerful enough to lift payloads up to 2.2 kg due to the stiff frame and custom designed coaxial motors
Air & Air Defense Specifications
Engine
Battery (2000 hp)
Max Speed
91.0 km/h
Range
35.0 km
Endurance
30.00 hrs
Payload Capacity
2 kg
System
Alternate Designation
Zoe Zetona
Type
Unmanned Aerial Vehicle (UAV)
Manufacturer
Acecore
Flight Modes
GPS mode; Attitude mode; Auto mode; Brake; Stabilize
Payload Capacity
2.2 kg
Dimensions
Length
700 mm
Width
675 mm
Height
340 mm
Rotor to rotor diagonal
940 mm
Diameter with propellers
978.5 mm
Height up to bottom plate
125 mm
Ground clearance bottom propeller
130 mm
Minimum standard empty weight
4.95 kg
Maximum Takeoff Weight
11.95 kg
Automotive
Engine Name
Zoe COAX10-360
Engine Type
Lithium Polymer
Engine Power
2,000 W
Maximum Speed
91 km/h
Maximum Range
35 km
Service Ceiling
INA
WInd Resistance
25 knots
Endurance
30 min
Image Sources
Details
Country of Origin
Norway
Category
UAVs
Air > UAVs
Filter Label
Z
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
0.7 m
Width
0.68 m
Height
0.34 m
Weight
11.95 kg
Operators (1)
Norway
