IMR-3M Russian Combat Engineering Vehicle

IMR-3M

Combat Vehicle

Spotted an error? Sign in to suggest an edit.

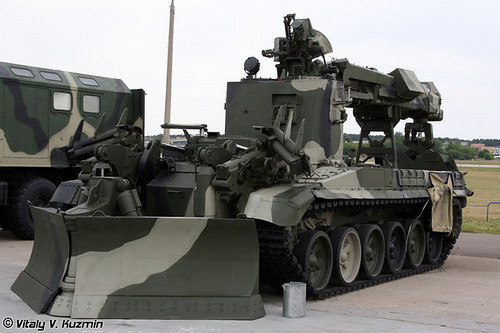

IMR-3M Russian Combat Engineering Vehicle — IMR-3M(E).jpgTRADOC ODIN WEG

Basic Information

Name

IMR-3M Russian Combat Engineering Vehicle

Designation

IMR-3M

Alternate Designation

IMR-3M

Equipment Type

Combat Vehicle

Manufacturer

—

Date of Introduction

2018

Description

Engineer Troops of the Armed Forces of the Russian Federation have received modern IMR-3M mine-obstacle vehicles. In the framework of the contract signed in 2016, the manufacturer handed over 13 vehicles to the Russian Defence Ministry. The IMR-3M was created on the basis of the T-90A tank and is equipped with a KMT-R3 track width mine plough with an EMT electromagnetic detachable device for trawling mines with rod-type and non-contact magnetic fuses. The vehicle is capable of lifting loads up to 2 tons. The IMR-3M is armed with the 12.7mm remote-controlled machine-gun mount. It can fire at ground, low-speed air targets, as well as explosive objects openly lying on the ground. The IMR-3M is also designed to make passes in moderately rugged terrain, in stone and forest rubble and in snow. It can remove minefields or perform work in contaminated area. The vehicle is equipped with radiation, chemical reconnaissance and contamination control and has a high level of protection against radiation and toxic substances. IMR-3M is capable of forcing water barriers up to 5 m deep along the bottom.

Ground Specifications

Crew 2

Mobility Type Tracked

Main Weapon 12.7 mm heavy machinegun

Engine Diesel (840 hp)

NBC Protection Yes

Max Speed 60.0 km/h

Range 500.0 km

Variants

IMR First version of combat engineering vehicle built on T-54/55 medium battle tank chassis, powered by a V-55 diesel engine developing 520 hp. IMR-2M1: Simplified model without the mine-clearing system. Entered service in 1982. Based on T-72A tank hull.

IMR-2M2 Improved version that is better suited for operations in dangerous situations, for example in contaminated areas. It entered service in 1990 and has a modified crane arm with bucket instead off the pincers.

IMR-2MA Latest version with bigger operator's cabin armed with a 12.7 mm machine gun NSV.

Klin-1 Remote controlled IMR-2.

IMR-3M Combat engineering vehicle built on the T-90 main battle tank chassis. The vehicle is 9,320 mm long, 3,500 mm wide and 3,430 mm high and weighs 49.5 t with the KMT-RZ minesweeping device. The IMR-3M is powered by an 840-hp V-84MS multifuel diesel engine, producing a maximum speed of 60 km/h and a range of 500 km. The baseline AEV is fitted with a U-type dozer blade, jib-type crane with an excavator bucket, and minesweeping plow. A chemical, biological, radiological and nuclear [CBRN] reconnaissance device, smokescreen generator, advanced signal suite and automatic fire extinguisher are fitted. The IMR-3M is armed with an NSVT 12.7 mm heavy machinegun [HMG] in a remotely controlled station. Production started in 2016 and is currently ongoing

System

Alternative Designation IMR-3M

In Service 2018-Present

Type Combat Engineering Vehicle

Family IMR Series

Crew 2 ea

Chassis based on the T-72 main battle tank chassis

Telescopic Arm (Crane) Mounted on the superstructure where you would normally see a turret

Telescopic Arm Traverse Range 360 deg

Telescopic Arm Maximum Lifting Capability 2 tons

Mine Clearing Yes, with Mine Clearing attachments

Earth Working Capacity 200-250 m³/h

Dozer Blade Available Attachment

Dozer Blade Capacity 200 - 250 m³/h

Manipulator Available Attachment

Bucket Loader Available Attachment

Mine Clearing Ploughs Available Attachment

Mine Clearing Charges Yes

Fording Depth 1.2 m

Note A feature of the BMR-3M is the ability to remote control from a portable console, or work autonomously after programming an action algorithm for a given route.

Dimensions

Length 9.32 m

Width 3.5 m

Height 3.42 m

Weight, Combat 50,800 kg tons

Ground Pressure INA

Ground Clearance 460 mm

Automotive

Engine Name V-84MS

Engine Type Diesel

Engine Power 840 hp

Maximum Range 500 km

Speed, Maximum Road 50 km/h

Speed, Average Cross 35 km/h

Speed Maximum Swim Not Amphibious

Gradient 50 %

Side Slope 30 %

Vertical Step 0.8 m

Fording (Without Preparation) 2.7 m

Fording (With Preparation) 5.0 m

Communications

Primary Radio R-173

Secondary Radio R-168-100U

Main Weapon System

System

Name 1 x Type 54 (DShKM) Heavy Machine Gun

Type Heavy Machine Gu

Caliber 12.7 mm

Proliferation +1 Million

Total Length 1,625 mm

Barrel Length 1,070 mm

Weight (Gun Only) 34 kg

Weight (On Wheeled Mounting) 157 kg

Max Rate of Fire 600 rds/min

Action Gas-Operated, Flapper Locking

Feed System 50 Round Belt

Sights Iron/Optical

Variants DK, DShKM, DSHKS, Type 54 HMG

Ammunition

Type heavy machine gun and anti-materiel rifle cartridge

Caliber 12.7 mm

Cartridge 12.7x108 mm

Muzzle Velocity 850 m/s

Maximum Effective Range 2,500 m

Armor Penetration API: 21 at 500 m & 13 at 1000 m (RHA)

Basic Load 1,200 ea

Protection

Hull Armor Protection from small arms fire and shell splinters

Applique Armor Available

Mine Clearing Available Attachment

Self-Entrenching Blade Available Attachment

NBC Protection Yes

Smoke Equipment INA

Automatic Fire Suppression System Yes

Image Sources

Notes http://www.army-guide.com/eng/product2162.html;

Details

Country of Origin Russia

Category Route Clearing Vehicles

Land > Engineer Systems > Route Clearing Vehicles

Classification

Domain

Ground

Equipment Status

Active

Dimensions

Length

9.32 m

Width

3.5 m

Height

3.42 m

Weight

50800000 kg

Operators (1)

Russia
