HZH Y100 Chinese Unmanned Aerial Vehicle (UAV)
HZH Y100
Tactical Unmanned Aerial Vehicle (UAV)
Other





Basic Information
Name
HZH Y100 Chinese Unmanned Aerial Vehicle (UAV)
Designation
HZH Y100
Alternate Designation
HZH Y100
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
Hongfei Aviation Technology Co., Ltd
Date of Introduction
2025
Description

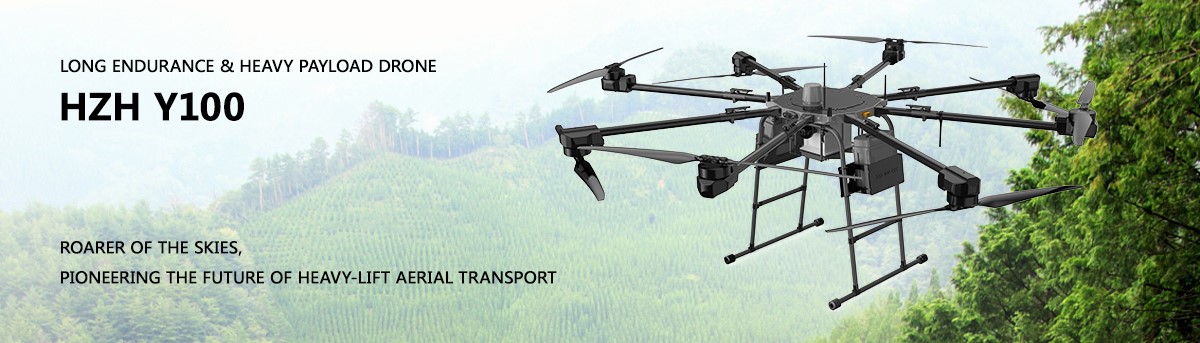

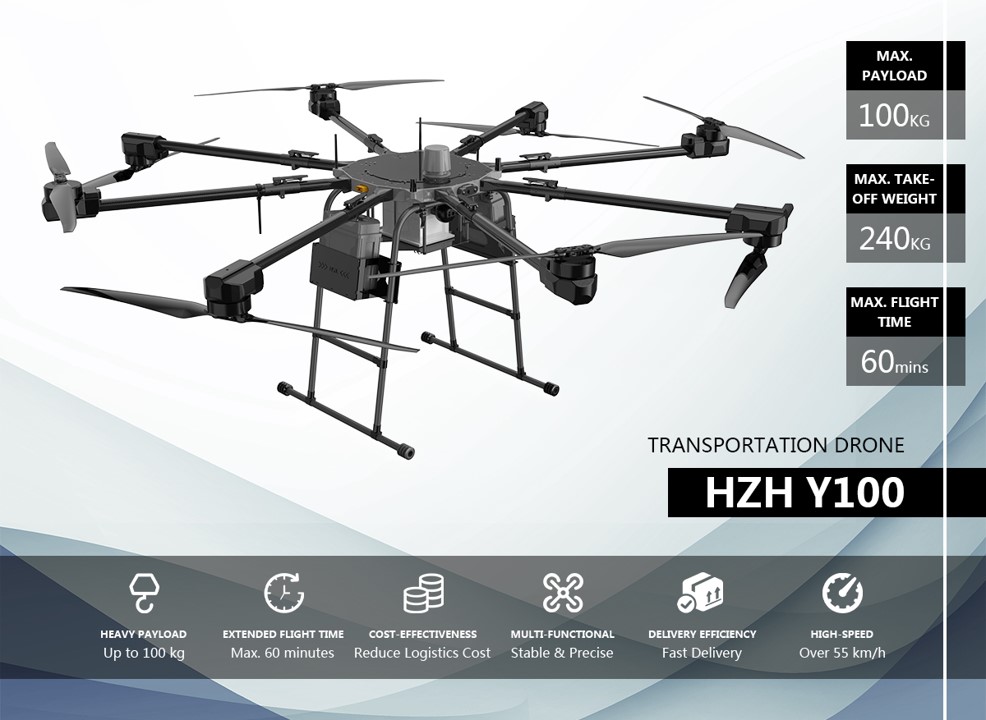

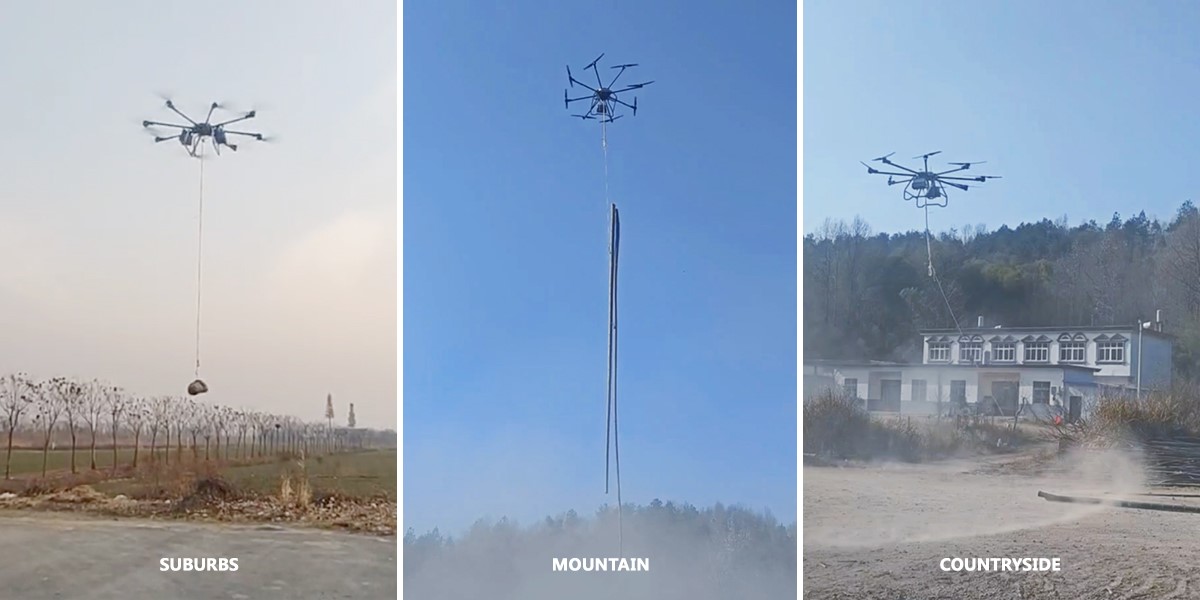

The HZH Y100 Chinese Unmanned Aerial Vehicle (UAV) is designed for heavy-duty aerial transport. It stands out with its impressive payload capacity of up to 100kg and an extended flight time of 60 minutes. Equipped with diverse transport tasks, it's ideal for delivering goods in challenging environments like mountains, urban areas, and vast distances. The HZH Y100 Heavy-Lift Drone, with its 100kg payload capacity and 60-minute flight time, redefines aerial transport through its stability, speed, and efficiency, offering a cost-effective solution for transporting goods across challenging terrains.
Air & Air Defense Specifications
Engine
Battery
Max Speed
72.0 km/h
Range
7.0 km
Endurance
60.00 hrs
Service Ceiling
5 m
Payload Capacity
100 kg
System
Alternate Designation
HZH Y100
Type
Unmanned Aerial Vehicle (UAV)
Manufacturer
Hongfei Aviation Technology Co., Ltd
Payload Capacity
100 kg
Camera
Camera Type: 14x Single-light Pod; Effective Pixels: 12 Million; Lens Focal Length: 14x Zoom; Min; Focus Distance: 10 mm
Remote Control
Model
H12 (Android OS)
Remote Controller
H16, 7-inch Remote Controller with Screen
Max. Signal Range
5 km
Operating Frequency
2,400-2,483Ghz
Dimensions
190 mm (L); 152 mm (W); 94 mm (H)
Charging Port
TYPE-C
Duration
6-20 hours
Dimensions

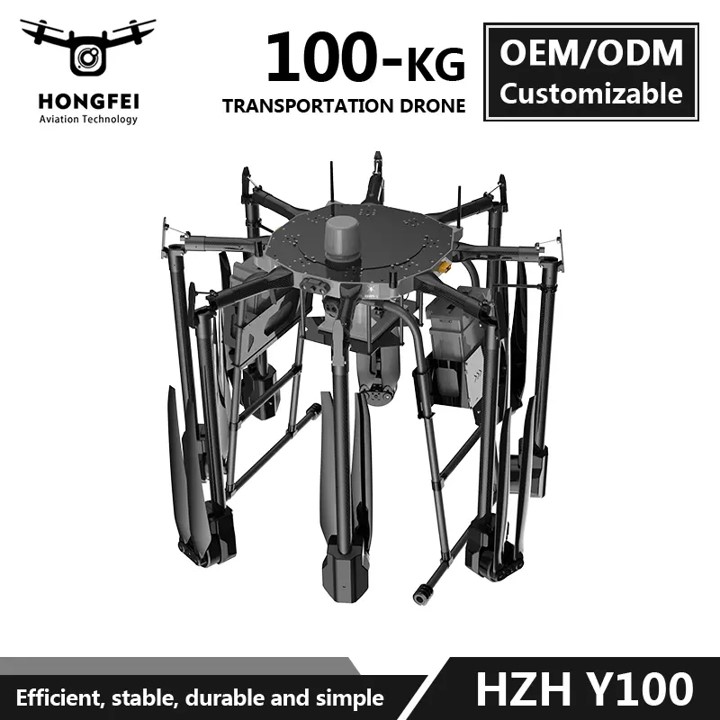

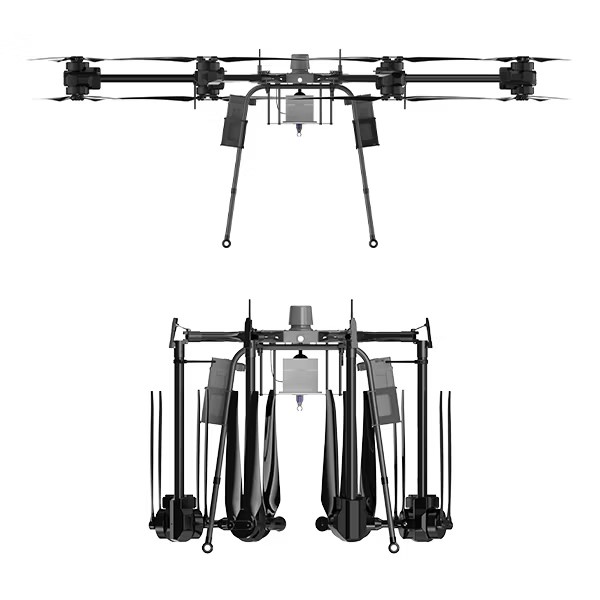

Dimensions (folded)
1,479 mm (L); 1,470 mm (W); 1,130 mm (H)
Dimensions (unfolded)
4,190 mm (L); 4,190 mm (W); 1,130 mm (H)
Weight (excluding battery)
60 kg
Weight (including battery)
82 kg
Max. Take-off Weight
270 kg
Automotive
Engine Name
18S 40000mAh*2
Engine Type
Battery
Engine Weight
11.2 kg
Maximum Speed
72 km/h
Maximum Range
7 km
Service Ceiling
5 km
Endurance
60 min
Details
Country of Origin
China
Category
UAVs
Air > UAVs
Filter Label
H
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
—
Width
4.19 m
Height
—
Weight
270 kg
Operators (1)
China
