Type 815G Class (Dongdiao Class) Chinese Intelligence-Collection and Missile-Range Instrumentation Ship
Type 85G Class
Intelligence-Collection and Missile-Range Instrumentation Ship
Other
Basic Information
Name
Type 815G Class (Dongdiao Class) Chinese Intelligence-Collection and Missile-Range Instrumentation Ship
Designation
Type 85G Class
Alternate Designation
Type 85G Class; Dongdiao Class
Equipment Type
Intelligence-Collection and Missile-Range Instrumentation Ship
Manufacturer
—
Date of Introduction
2009
Description

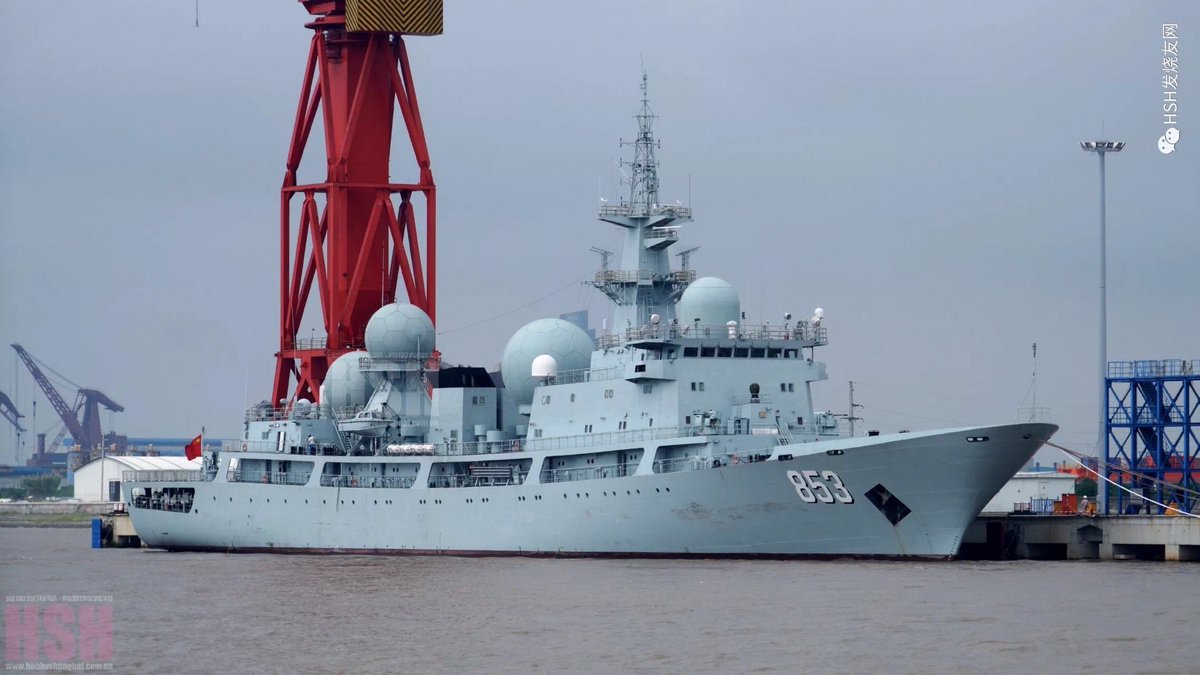

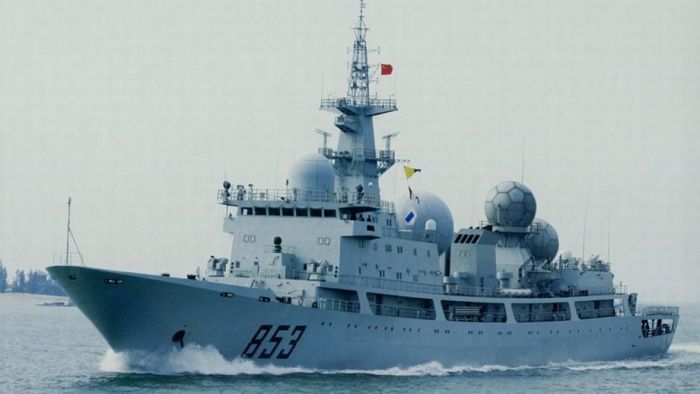

In 2009 an improved version appeared, designated as Type 815G, and the most obvious external visual difference between Type 815G and earlier Type 815 is that the former has a different mast somewhat similar to a pagoda shape, and the sheer line is curved at a greater angle. Type 815 spy ship or electronic surveillance ship and its derivative Type 815G are the newest Chinese electronic surveillance ships in service (as of 2014) with the People's Liberation Army Navy (PLAN). A total of two ships have been confirmed, one Type 815, and the other Type 815G.
Naval & Littoral Specifications
Crew
250
Beam
16.40 m
Draft
6.50 m
Variants
Tianwangxing (Uranus)
Commissioned: 2010
Fleet: East Sea Fleet
Status:: Active
Tianlangxing (Sirius)
Commissioned: 2015
Fleet: North Sea Fleet
Status:: Active
Tianshuxing (Dubhe)
Commissioned: 2015
Fleet: South Sea Fleet
Status:: Active
Haiwangxing (Neptune)
Commissioned: 2015
Fleet: South Sea Fleet
Status:: Active
System
Alternative Designation
Type 85G Class; Dongdiao Class
Type
Intelligence-Collection and Missile-Range Instrumentation Ship
Builder
Hudong-Zhonghua Shipbuilding
Crew
250
Note
In 2009 an improved version appeared, designated as Type 815G, and the most obvious external visual difference between Type 815G and earlier Type 815 is that the former has a different mast somewhat similar to a pagoda shape, and the sheer line is curved at a greater angle.
Dimensions
Length
130 m
Beam
16.4 m
Draft
6.5 m
Displacement, Standard
4,600 tons
Displacement, Full Load
6,000 tons
Propulsion System
Engine Name
2 x SEMT-Pielstick 6PC2-5L
Engine Type
Diesel Engine
Engine Power
7,200 bhp each; 2 shafts
Maximum Range
5,000 nm at 27.8 km/h (15 knots)
Maximum Speed
37.04 km/h (20 kts)
Gun Weapon Systems
Note
1 x twin 37-mm/63-cal Type 74 AA and 2 x twin 25-mm/80-cal Type 61 AA
Fire Control Systems
FCS Name
INA
Computerized FCS
INA
Battle Management System
No
Radar Systems
Navigation Radar
INA
Missile Tracking Radar
3 x missile tracking, telemetry
Aviation Facilities
Note
There is a hangar for a helicopter.
Protection
Active Protection System
None
Countermeasures
INA
NBC Water Washdown System
Yes
EW Capabilities
1 x passive intercept radar
Details
Country of Origin
China
Category
Naval
Naval
Filter Label
T
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
130 m
Width
—
Height
—
Weight
—
Operators (1)
China
