Grille German Unmanned Aerial Vehicle (UAV)
Grille
Tactical Unmanned Aerial Vehicle (UAV)
Other








Basic Information
Name
Grille German Unmanned Aerial Vehicle (UAV)
Designation
Grille
Alternate Designation
Grille
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
Avilus
Date of Introduction
2025
Description
The Grille German Unmanned Aerial Vehicle (UAV) enhances the standard assets of the evacuation chain and acts as a force multiplier for existing capabilities. In situations where operational or tactical circumstances require additional resources, the system can be rapidly deployed. It improves frontline logistics by supplementing traditional supply methods with on-demand delivery. When the operational tempo, terrain, or threat conditions surpass the capacity of conventional assets, the Grille serves as a valuable force multiplier.
Air & Air Defense Specifications
Engine
Electric (240 hp)
Max Speed
86.0 km/h
Cruise Speed
86.0 km/h
Range
51.0 km
Service Ceiling
2100 m
System
Alternate Designation
Grille
Type
Unmanned Aerial Vehicle (UAV)
Manufacturer
Avilus
Flight Control
Primary and secondary flight control system
Autonomy
Missions are executed by full-automatic flight
control based on jamming resilient navigation
signals of an inertial reference unit (IRU).
Navigation
Satellite and inertial navigation
Data Links
Multiple LOS and BLOS links

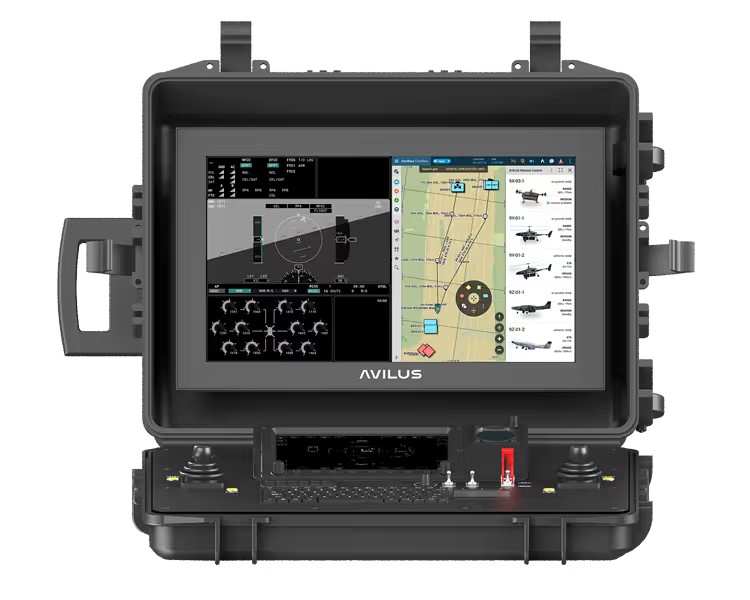

Ground Control
Duplex GCS integrated in mobile PECC
Battle Management
Integrated for planning and monitoring
Mobility

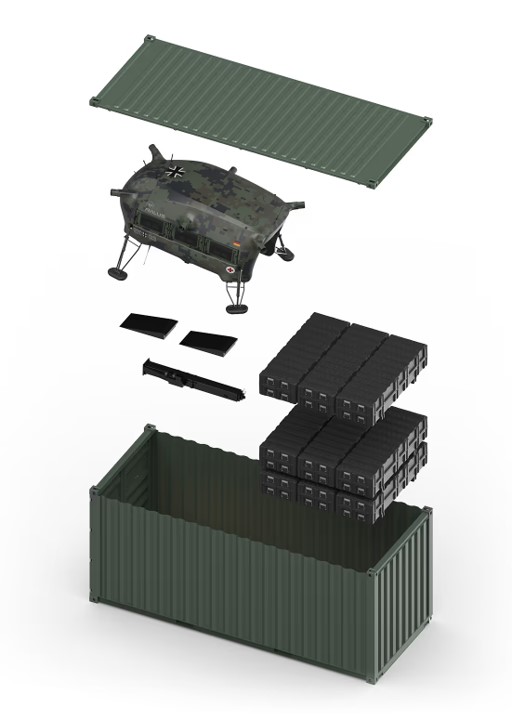

The aircraft fits an ISO 20 feet container, is assembled in 15 minutes and lands on a trailer with
its integrated high precision landing system.
Patient Payload
135 kg (298 lb)
Medical Cabin
40 kg (88 lb)
Total Payload
175 kg (386 lb)
Rescue System
Ballistic parachute
Dimensions
Enclosing Diameter
7.8 m (25 ft)
Height
INA
Propeller Diameter
2.25 m (7 ft)
Maximum Takeoff Weight
750 kg (1653 lb)
Automotive
Engine Name
INA
Engine Type
Full electric
Engine Power
240 kW (326 HP)
Maximum Speed
INA
Cruise Speed
86 km/h (47 kts)
Maximum Range
51 km
Service Ceiling
2,100 m (6,890 ft)
Endurance
INA
Details
Country of Origin
Germany
Category
UAVs
Air > UAVs
Filter Label
G
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
—
Width
—
Height
—
Weight
340.19 kg
Operators (1)
Germany
