Songar Grenaded Turkish Unmanned Aerial Vehicle (UAV)
Songar Grenaded
VTOL Unmanned Aerial Vehicle (UAV)
Other
Basic Information
Name
Songar Grenaded Turkish Unmanned Aerial Vehicle (UAV)
Designation
Songar Grenaded
Alternate Designation
Songar Grenaded
Equipment Type
VTOL Unmanned Aerial Vehicle (UAV)
Manufacturer
Asisguard
Date of Introduction
2019
Description

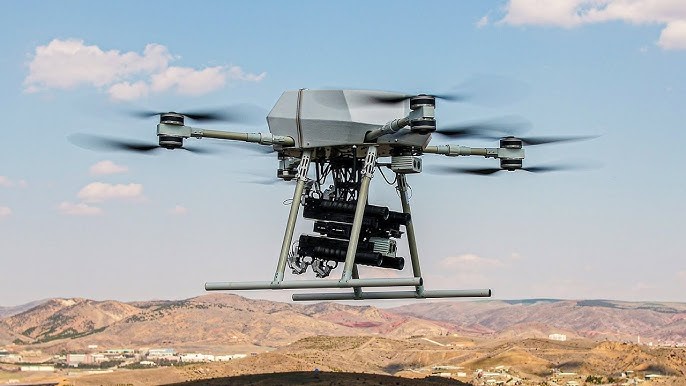

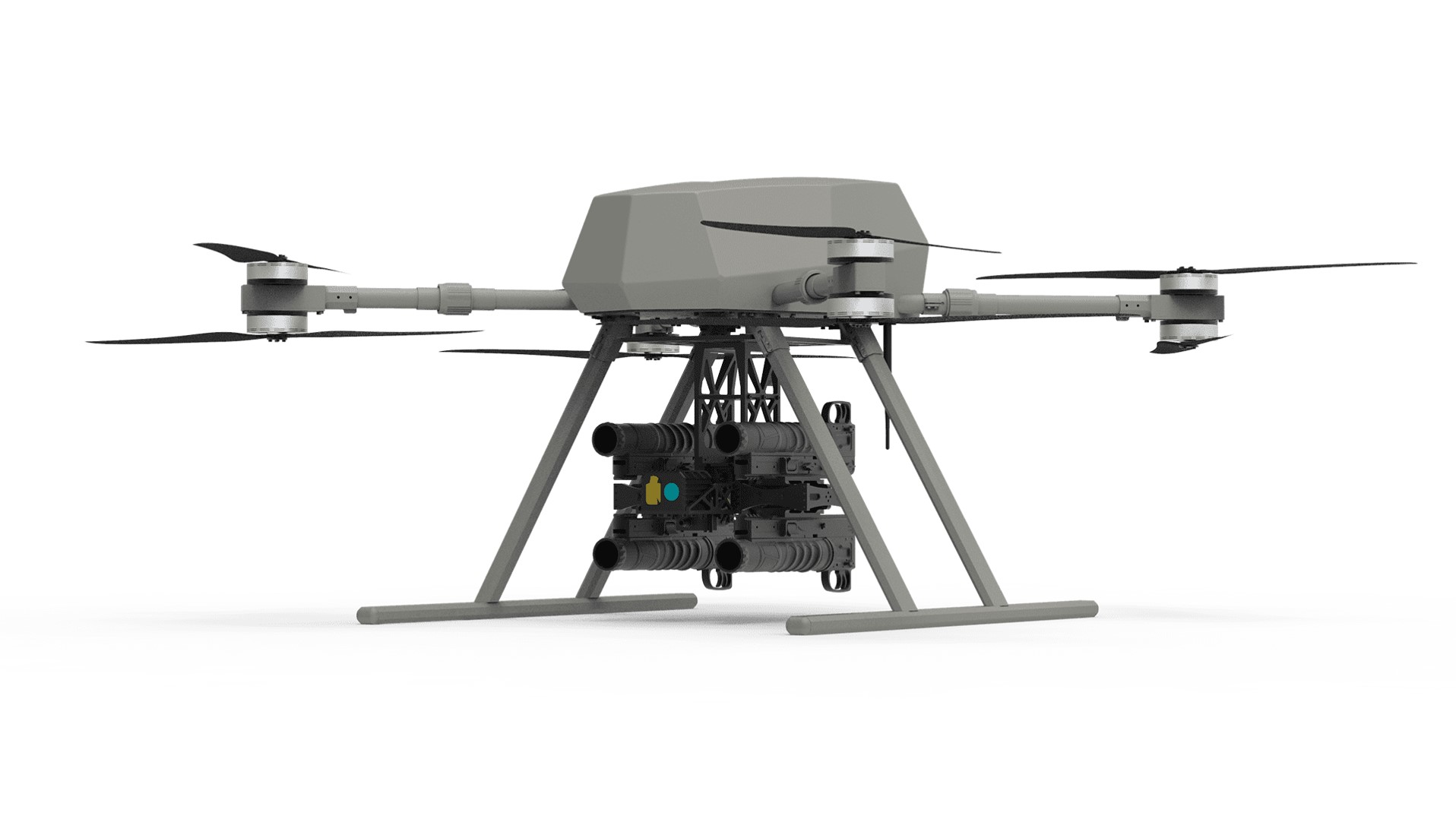

The Songar Grenaded Turkish Unmanned Aerial Vehicle (UAV) is a grenade launcher system integrated into the first national Armed Drone SONGAR™ in the inventory of the Turkish Armed Forces that is ensured up to four grenades can be fired effectively at a time used in any kind of day/night military operations. The system is able to to broadcast real-time video and operate within a mission radius of up to 5 km.
Air & Air Defense Specifications
Engine
Electric
Endurance
15.00 hrs
Service Ceiling
300 m
Variants
Songar
The Songar is fitted with an EO/IR turret to the underside of the fuselage for navigational and targeting purposes and an additional camera is mounted on the gun. The AV has a pilot camera for surveillance and exploration purposes, a gimbal integrated EO/IR sensor, barrel camera, and laser rangefinder (LRF) module (eye-safe laser), daylight color TV camera (10× zoom, 640×512 HD images).
Songar Armed
The Songar Armed Turkish Unmanned Aerial Vehicle (UAV) is fitted with a stabilized 5.56 mm assault rifle, for which up to 200 rounds of ammunition may be carried. The AV can also be fitted with a 30-round STANAG magazine. The gun rotation can be adjusted between 0° and 45° elevation axis.
Songar Togan
The Songar Togan is fitted with TOGAN ammunition of TÜBİTAK SAGE. The AV is equipped with dynamic fire algorithm, and single-ammunition hold-drop mechanism.
System
Alternate Designation
Songar Grenaded
Type
Vertical Take-Off and Landing (VTOL) Unmanned Aerial Vehicle (UAV)
Manufacturer
Asisguard
Autonomy
The AV's mission is fully autonomous with multilayer safety requiring human consent for firing, has return-home on loss of link or low battery, and in-flight mission change option. The AV can either have autonomous mode of control using GPS and GLONASS or remote-control mode.
Crew
Unmanned
Payload Capacity
INA
Camera
The SONGAR drone system is installed with two cameras including a pilot camera with 10x zoom and a gun-mounted camera. The cameras are capable of transmitting video and real-time images. The night sensors allow the drone to perform operations during night within a range of 10km. The camera systems are capable of performing real-time video transfer as well as video and data recording for post-mission analysis.
GPS
The armed drone uses both GPS and GLONASS navigation systems for communications during operations.
Launching System
Vertical Take-Off and Landing (VTOL)
Recovery System
Vertical Take-Off and Landing (VTOL)
Dimensions
Length
0.62 m
Width
1.45 m
Height
0.7 m
Maximum Takeoff Weight
45 kg
Automotive
Engine Name
INA
Engine Type
Propelled by unrated electric motor.
Engine Power
INA
Maximum Speed
INA
Cruising Speed
INA
Service Ceiling
300 m
Operational Range
5 km
Endurance
15 min
Main Weapon System
System
Name
INA
Type
Grenade Launcher
Caliber
40 mm
Gun Rotation
Gun rotation between +5° and
-90° on elevation axis
Gun Stabilization System (GSS)
The AV is additionally fitted with a ‘Grenade Launcher Stabilization System' with capability of rotation between +5° to -90° in the elevation axis.
Effective Firing Range
The system can fire up to four grenades at a time with effective range of 400–450 m.
Note
The gun has the capability to perform fully autonomous missions with multi-layered safety, requiring final consent from the operator for firing.
Ammunition
Type
Grenade
Caliber
40 mm
Cartridge
40x46mm
Basic Load
6 Grenades
Details
Country of Origin
Turkey
Category
Very Low-Cost, Close-Range UAVs (Less than 5 km Range)
Air > Very Low-Cost, Close-Range UAVs (Less than 5 km Range)
Filter Label
S
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
0.62 m
Width
1.45 m
Height
0.7 m
Weight
45 kg
Operators (1)
Turkey
