ZQWJ-700 Chinese Unmanned Aerial Vehicle (UAV)
ZQWJ-700
Tactical Unmanned Aerial Vehicle (UAV)
Other
Basic Information
Name
ZQWJ-700 Chinese Unmanned Aerial Vehicle (UAV)
Designation
ZQWJ-700
Alternate Designation
ZQWJ-700
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
China Defense Equipment Co
Date of Introduction
2024
Description
The ZQWJ-700 Chinese Unmanned Aerial Vehicle (UAV) is a strategic multi-purpose large-scale UAV system, which has the characteristics of high speed, high altitude, long endurance, large load capacity. The ZQWJ-700 Chinese Unmanned Aerial Vehicle (UAV) can be loaded with photoelectric pod(EO/IR), multi-functional surveillance radar (SAR/GMTI/MMTI), electronic reconnaissance payload (ELINT) and other mission equipment, and can be externally loaded with air to ground missiles, anti radiation missiles, glide guided bombs and other weapons.
Air & Air Defense Specifications
Engine
Turbofan
Max Speed
700.0 km/h
Range
250.0 km
Endurance
14.00 hrs
Service Ceiling
15000 m
Wingspan
23.00 m
Hardpoints
4
System
Alternate Designation
ZQWJ-700
Type
Unmanned Aerial Vehicle (UAV)
Manufacturer
China Defense Equipment Co.
Capability
The UAV carries different mission loads and can be equipped with airborne weapons, as well as reconnaissance, surveillance and strike mission capabilities.
Payload Capacity
INA

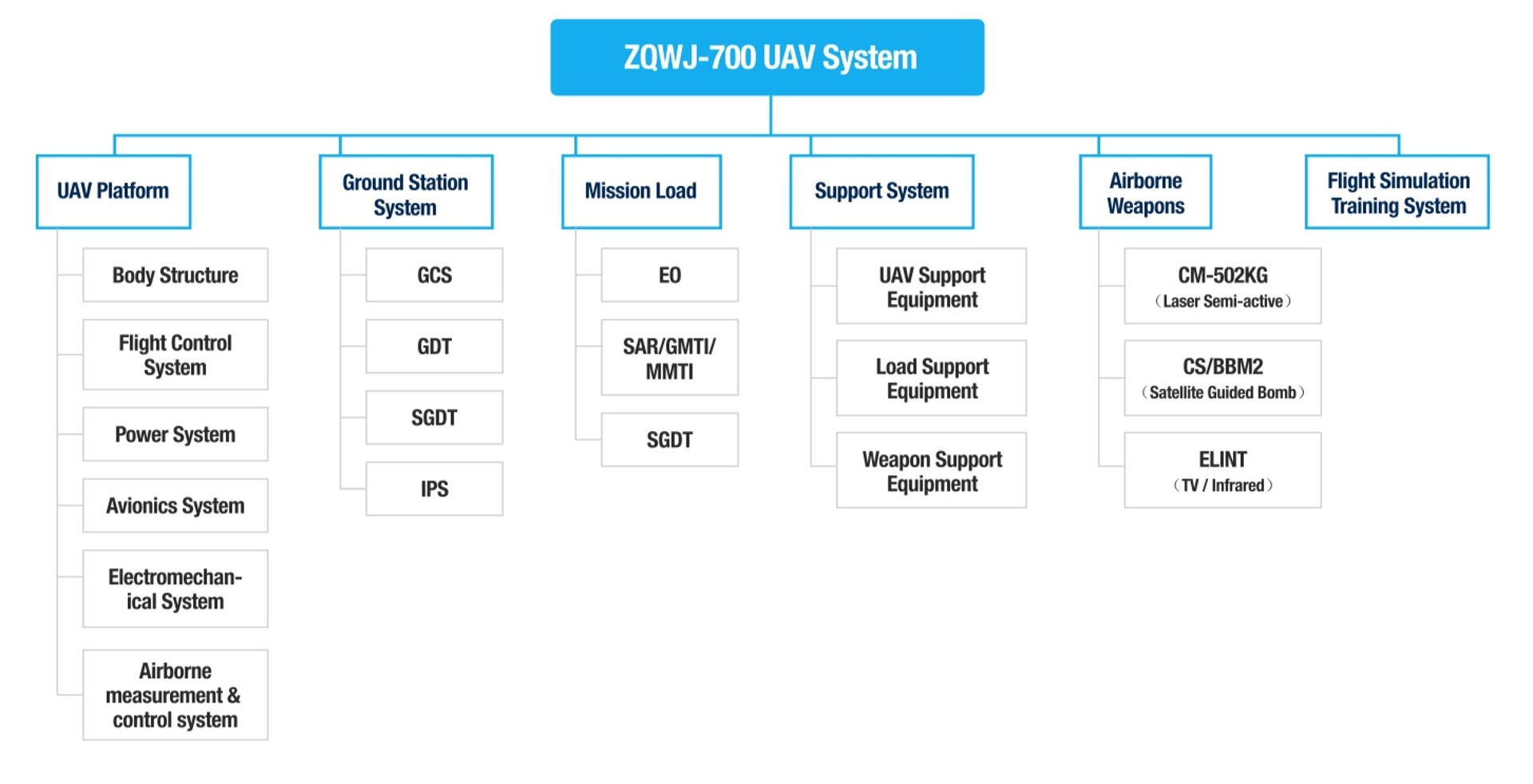

Payloads
Photoelectric pod (EO/IR)
Multifunctional surveillance radar (SAR/GMTI/MMTI)
Electronic reconnaissance load (ELINT)
Integrated Navigation Mode
Satellite + inertial integrated navigation mode, in which the satellite receiver has anti-interference ability
Measurement And Control Distance
250 km (line of sight), within the effective coverage of satellite antenna beam (satellite relay)
Downlink Data Bandwidth
Sight distance:8Mbps 32Mbps which can be set externally (sight distance)
Satellite:2.048Mbps ~8.192Mbps
Emergency Response Capability
Self return in case of continuous interruption of TT & C link
Working Environment Temperature And Humidity
Working temperature: -55℃-60'℃
Humidity: no more than 95%
Dimensions
Length
11.0 m
Height
3.4 m
Wingspan
23.0 m
Maximum Takeoff Weight
3,200 kg
Automotive
Engine Name
INA
Engine Type
Turbofan engine
Engine Power
INA
Maximum Speed
700 km/h
Maximum Range
250km (line of sight), within the effective coverage of satellite antenna beam (satellite relay).
Service Ceiling
15,000 m; this altitude is beyond the range of air defense missiles equipped by many countries.
Endurance
Reconnaissance configuration: 14 hours. Strike configuration: 8 hours.
Armament
Hardpoints
4 x hardpoints. The total weight of external hanging is no more than 480 kg.
Missiles
Air to ground missile;
Gliding satellite guided bomb;
Anti radiation missile
Image Sources
Details
Country of Origin
China
Category
UAVs
Air > UAVs
Filter Label
Z
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
11 m
Width
23 m
Height
3.4 m
Weight
3200 kg
Operators (1)
China
