Carl Gustaf M1 Swedish 84mm Man-Portable Anti-Tank Recoilless Rifle

Recoilless Gun

Spotted an error? Sign in to suggest an edit.

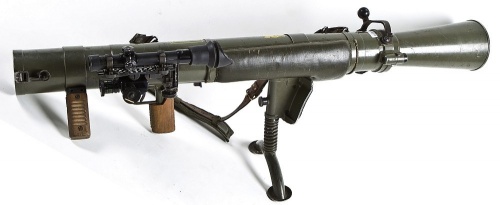

Carl Gustaf M1 Swedish 84mm Man-Portable Anti-Tank Recoilless Rifle — 500px-CarlGustavM2.jpgTRADOC ODIN WEG

Basic Information

Name

Carl Gustaf M1 Swedish 84mm Man-Portable Anti-Tank Recoilless Rifle

Designation

—

Alternate Designation

—

Equipment Type

Recoilless Gun

Manufacturer

Saab Bofors Dynamics

Date of Introduction

1948

Description

The Carl Gustaf recoilless rifle is an 84-mm man-portable reusable anti-tank weapon produced by Saab Bofors Dynamics (formerly Bofors Anti-Armour AB) in Sweden. Introduced in 1946, it was one of the many recoilless rifle designs of that era. While similar weapons have generally disappeared from service, the Carl Gustaf is still being made and remains in widespread use today. The Carl Gustaf is a lightweight, low-cost weapon that uses a wide range of ammunition, which makes it extremely flexible and suitable for a wide variety of roles. The weapon's name is frequently shortened. In Sweden, it is officially called the Grg m/48 (Granatgevär – "grenade rifle", model 1948). British troops refer to it as the "Charlie G", while Canadian troops often refer to it as "Carl G". In U.S. military service, it is officially known as the "M3 Multi-Role Anti-Armor Anti-Personnel Weapon System" (MAAWS) or "Ranger Anti-tank Weapons System" (RAWS), but is often just called "Goose". In Australia, it is irreverently known as "Charlie Gutsache" (guts ache, slang for stomach pain), or "Charlie Swede". The basic weapon consists of the main tube with the breech-mounted Venturi recoil damper, with two grips near the front and a shoulder mount. The weapon is fitted with iron sights, but is normally aimed with the attached 3× optical sight with a 17 degree (300 mil) field of view. The most modern variants fielded by Swedish rifle companies have been fitted with the Swedish Aimpoint sighting system. Luminous front and rear sight inserts are available for the iron sights when aiming at night, and an image intensification system may also be used. The Gustaf can be fired from the standing, kneeling, sitting or prone positions, and a bipod may be attached in front of the shoulder piece. An operating handle called the "Venturi lock" is used to move the hinged breech to one side for reloading. The weapon is normally operated by a two-man crew, one carrying and firing the weapon, the other carrying ammunition and reloading.

Ground Specifications

Crew 2

Main Weapon 84 mm rifled

Variants

M1 (1948) Original, still in Service with Third-World Countries

M2 (1963) An improved, lighter and slightly shorter version, the Carl Gustaf M2, was introduced in 1964 and quickly replaced the original version.

M3 (1991) The current Carl Gustaf M3 version was introduced in 1991. It reduced the weight even further by replacing the forged steel tube with a thin steel liner containing the rifling, strengthened by a carbon fiber outer sleeve. The external steel parts were also replaced with plastics and aluminium alloys. In recent years, the M3 has found new life in a variety of roles. The British Special Air Service, United States Army Special Forces and United States Army Rangers use M3s in bunker-busting and anti-vehicle roles, while the German Bundeswehr maintains a small number of M2s for battlefield illumination. Many armies continue to use it as a viable anti-armor weapon, especially against 1950s- and 1960s-era tanks and other armored vehicles still in use worldwide.

M3 MAAWS In November 2011, the U.S. Army began ordering the M3 MAAWS for regular units deployed in Afghanistan. Soldiers were being engaged with RPGs at 900 meters, while their light weapons had effective ranges of 500–600 meters. The Gustaf allows airburst capability of troops in defilade out to 1,250 meters, and high explosive use out to 1,300 meters. While the weapon provides enhanced effectiveness, its 9.5 kg (21 lb) weight burdens troops. On 28 March 2013, USSOCOM announced a call for sources to develop a kit to lighten the M3 MAAWS and reduce overall length without affecting handling or ruggedness. By that time, Saab was developing a weight-reduced version prior to the SOCOM release that demonstrated no decrease in performance, no increase in recoil, and nearly equivalent barrel life that could be ready for government testing in 2014. Saab has also developed a new high explosive round that has a direct fire range of 1,500 meters when using a fire control system. The US Defense Department agreed to evaluate the shorter and lighter M4 version over the next two years; testing and qualifications were planned to be completed in spring 2017, and the weapon type classified as the M3E1 in fall 2017, making the system available for procurement to all Department of Defense services. The first unit is planned to be equipped with the M3E1 in 2018. In April 2019, a contract of SEK168 million (USD18.1 million) was approved to supply the Australian Army with ammunition for the Carl-Gustaf M4 84 mm multipurpose weapon systems ordered by the service in September 2018.

M4 (M3-E1) At AUSA 2014, Saab Dynamics displayed its new Carl Gustaf M4 variant. Compared to the M3 MAAWS, the M4 is 3.4 kg (7.5 lb) lighter, weighing 6.6 kg (15 lb), and shorter with a 950 mm (37 in) overall length. The shorter length was in response to the need to wield the weapon in urban terrain, and weight savings were achieved through using lighter components whenever possible including a carbon fiber tube with titanium liner, as well as a new venturi design. Other new features include a red-dot sight, a travel safety catch to allow the M4 to be carried while loaded, an adjustable shoulder rest and forward grip for improved ergonomics, a shot counter to keep track of how many rounds have been fired to manage the weapon's 1,000-round barrel life, picatinny rails for grips and sight mounts, and a remote round management function so intelligent sights can "talk" to programmable rounds.

System

Alternate Name Carl Gustaf

Type Recoilless rifle

Manufacturer Saab Bofors Dynamics (formerly Bofors Anti-Armour AB), Howa (license)[

Caliber 84 mm rifled (24 lands, progressive twist)

Cartdige 84×246 mm R

Crew 2 optimal, 1 minimal

Breech Hinged

Rate of fire 6 rounds per minute

Muzzle Velocity 230–255 m/s

Effective Firing Range, Moving Vehicles 350 to 400 m against moving vehicles

Effective Firing Range, Stationary Vehicles 500 m against stationary vehicles

Effective Firing Range, using Smoke and High Explosive Rounds 1,000 m

Effective Firing Range, Rocket-Boosted Laser Guided Ammunition 2,000 m

Specifications

Length 1.13m (M1); 1.13m (M2); 1.07m (M3); 1.0m (M4)

Weights 14.2 kg (M2); 8.5 kg (M3); 7.0 kg (M4)

Ammunition

Ammunition Types HEAT (tandem), HEDP, HEAT, HE, Smoke, Illumination

Note Improvements to the ammunition have been continual. While the older HEAT rounds are not particularly effective against modern tank armor, the weapon has found new life as a bunker-buster with an HEDP round. In addition, improved HEAT, high explosive (HE), smoke and illumination (star shell or flare) ammunition is also available. For full effectiveness, illumination rounds have to be fired at a very high angle, creating a danger for the gunner as the backblast from firing can burn him. For this reason, several armies have retired the illumination rounds, while the U.S. Army requires that they be fired from a standing position.

FFV 751

Note FFV401 is an Area Defence Munition designed as a close-range anti-personnel round. It fires 1100 flechettes over a wide area.

FFV441

Note FFV441 is an HE round, useful in a "lobbed" trajectory to 1,000m, which can be fused to either detonate on impact or as an airburst.

FFV441B

Note FFV441B is an HE round with an effective range against personnel in the open of 1,100 m. The round arms after 20 to 70 m of flight, weighs 3.1 kg, and is fired at a muzzle velocity of 255 m/s.

FFV469

Note FFV469 is a smoke round fired like the FFV441, with a range of about 1,300 m. The 3.1 kg round is also fired at 255 m/s.

FFV502

Note FFV502 is an HEDP round with the ability to be set to detonate on either impact or one-tenth of a second afterwards. Effective range is 1,000 m against dispersed soft targets such as infantry in the open, 500 m against stationary targets and 300 m against moving targets. Minimum range is 15 to 40 m to arm the warhead. Penetration exceeds 150 mm of rolled homogeneous armour (RHA). Ammunition weight is 3.3 kg and muzzle velocity is 230 m/s.

FFV509

Note FFV509 is an ASM (Anti-Structure Munition), designed especially for destroying buildings and other types of urban constructions. The fuse has two modes, impact or a delayed function.[

FFV545

Note FFV545 is an illuminating star shell, fired up to 2,300 m maximum range, but with an effective envelope of 300 to 2,100 m. Suspended by parachute, the star shell burns for 30 seconds while producing 650,000 candela, providing a 400 to 500 m diameter area of illumination.

FFV551

Note FFV551 is the primary HEAT round and is a rocket-assisted projectile (RAP). Effective range is up to 700 m (400 m against moving targets) and penetration up to 400 mm of RHA. Ammunition weight is 3.2 kg and muzzle velocity is 255 m/s.[

FFV552

Note FFV552 is a practice round with the same ballistics as the 551.

FFV651

Note FFV651 is a newer HEAT round using mid-flight rocket assistance for ranges up to 1,000m. In theory, it has less penetration than the FFV551, but it includes a stand-off probe for the fuse to improve performance against reactive armour.

HEAT 655 CS

Note HEAT 655 CS (Confined Spaces) "high-explosive anti-tank (HEAT) round that can be fired by the 84 mm Carl Gustaf recoilless weapon from within small enclosures."

FFV751

Note FFV751 is a tandem-warhead HEAT round with an effective range of 500 m and ability to penetrate more than 500 mm of armour. Weight is 4 kg.

FFV756

Note FFV756 is an MT (Multi Target) ammunition, designed for combat in built-up areas and for incapacitating an enemy under cover inside a building or some type of fortification. The MT 756 uses a tandem charge.[

Guided Carl Gustaf Munition (GCGM)

Note Guided Carl Gustaf Munition (GCGM) is a laser guided projectile developed between Saab and Raytheon, featuring a multi-target warhead capable of defeating bunkers and moving light armored vehicles at a range of 2,000 m and capable of being fired from enclosed spaces; demonstrations planned for 2020.

Sights

Type Iron sights, optical 3×, laser rangefinder, image intensification system for the newer M3 and M4 series

Image Sources

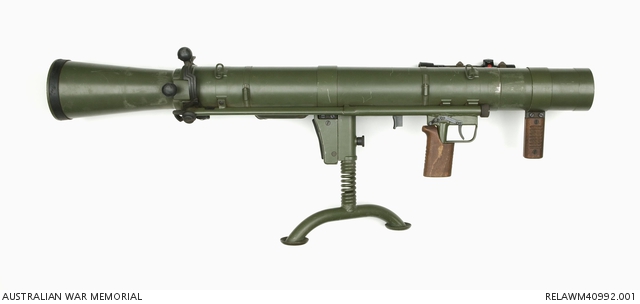

Notes https://en.m.wikipedia.org/wiki/File:Carl_Gustav_recoilless_rifle.jpg; https://www.awm.gov.au/collection/C153952; https://www.imfdb.org/wiki/Men_of_War_(1994);

Details

Country of Origin Sweden

Category Recoilless Guns

Land > Infantry Weapons > Recoilless Guns

Classification

Domain

Ground

Equipment Status

Active

Dimensions

Length

0.95 m

Width

—

Height

0.95 m

Weight

14.2 kg

Operators (41)

United States

Germany

United Kingdom

Israel

Ukraine

Poland

Sweden

India

Brazil

Argentina

Australia

Austria

Belgium

Belize

Botswana

Burkina Faso

Canada

Chile

Ghana

Greece

Honduras

Hungary

Indonesia

Iraq

Ireland

Kenya

Kuwait

Libya

Malaysia

Myanmar

Nepal

New Zealand

Nigeria

Norway

Portugal

Saudi Arabia

Sierra Leone

Thailand

United Arab Emirates

Venezuela

Zambia
