RS1A3 Minirex Russian Tracked Unmanned Ground Vehicle (UGV)
RS1A3 Minirex
Unmanned Ground Vehicle (UGV)
Other
Basic Information
Name
RS1A3 Minirex Russian Tracked Unmanned Ground Vehicle (UGV)
Designation
RS1A3 Minirex
Alternate Designation
RS1A3 Minirex
Equipment Type
Unmanned Ground Vehicle (UGV)
Manufacturer
KB integrated systems
Date of Introduction
2017
Description
The RS1A3 Minirex Russian Tracked Unmanned Ground Vehicle (UGV) is a Light, mobile (tracked), tactical combat robot, used in search and rescue (SAR) missions in risky environments, counter-terror operations as a mobile front-line unit, fire support for assault teams, and other types of police and military urban operations.
Ground Specifications
Engine
Battery
Max Speed
8.0 km/h
System
Alternative Designation
RS1A3 Minirex
Type
Tracked Unmanned Ground Vehicle (UGV)
Manufacturer
KB integrated systems
Configuration
Track
Mobility
The RS1A3 can overcome stairs and conduct mine clearance. It is fully sealed, and can be used in rain, snow, dusty environments, and travel through water depths of up to 1 m.
Crew
Unmanned
Operator

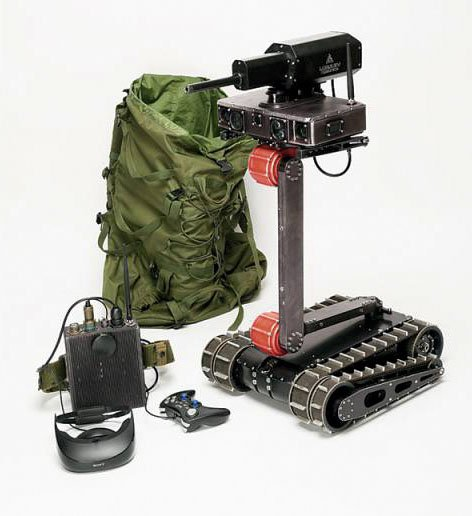

The operator control unit includes a portable communication set, VR set, and a controller.
Camera
The Minirex is equipped with six cameras in total. One camera supports aiming and targeting (boresight) with another providing (×24) optical zoom, four others are used for a 360° field of view for greater situational awareness.
Laser Pointer
Yes
Operating Temperature
–35 to +45°C
Dimensions
Length
INA
Width
INA
Height
INA
Weight, Combat
23 kg
Automotive
Engine Name
INA
Engine Type
Replaceable Battery
Engine Power
INA
Maximum Speed
8 km/h
Amphibious
Up to 1 m
Endurance
2-4 hours in driving mode, 15 hours in surveillance mode.
Communications
Note
Information exchange is via a CAN and Ethernet network and a radio frequency of 412 MHz is used.
Manipulator Arm
Lifting Capacity
3 kg
Note

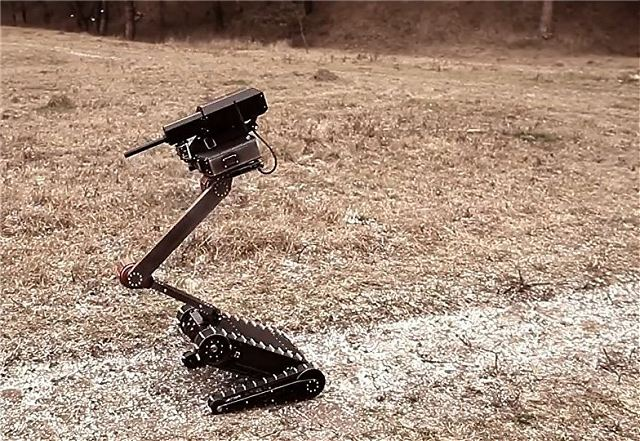

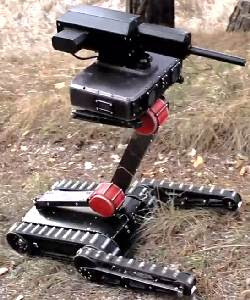

The unmanned ground vehicle (UGV) is fitted with two flippers at the front that assist in traversing difficult obstacles and can also be used to raise the camera higher to peek into windows, parked cars, and so on if required. The platform can climb stairs and lift loads using its manipulator's arm.
Main Weapon System
Note
The RS1A3 is offered in a selection of calibers that includes 7.62 × 39 mm, 9 × 39 mm, .338 Lapua Magnum (8.58 × 70 mm), or .4 Smith & Western (10 × 22 mm). The RS1A3 has an effective range of between 1 and 400 m in automatic or semi-automatic modes.
Protection
Armor
The unit has a protection class of IP68
Applique Armor
INA
Details
Country of Origin
Russia
Category
Unmanned Ground Vehicles (UGV)
Land > Unmanned Ground Vehicles (UGV)
Filter Label
R
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
—
Width
—
Height
—
Weight
23 kg
Operators (1)
Russia
