Eagle V Swiss 4x4 Reconnaissance Vehicle
Eagle V
Armored Reconnaissance Vehicle
Other
Basic Information
Name
Eagle V Swiss 4x4 Reconnaissance Vehicle
Designation
Eagle V
Alternate Designation
Eagle V
Equipment Type
Armored Reconnaissance Vehicle
Manufacturer
General Dynamics European Land Systems-Mowag, Kreuzlingen, Switzerland General Dynamics European land Systems-Germany, Kaiserslautern, Germany
Date of Introduction
2010
Description

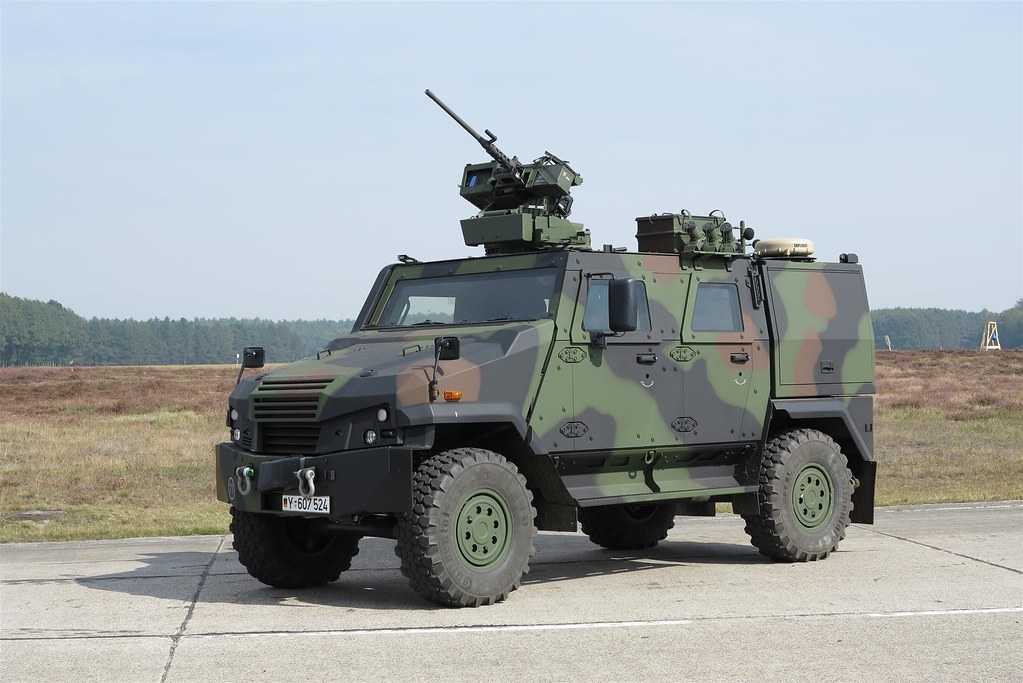

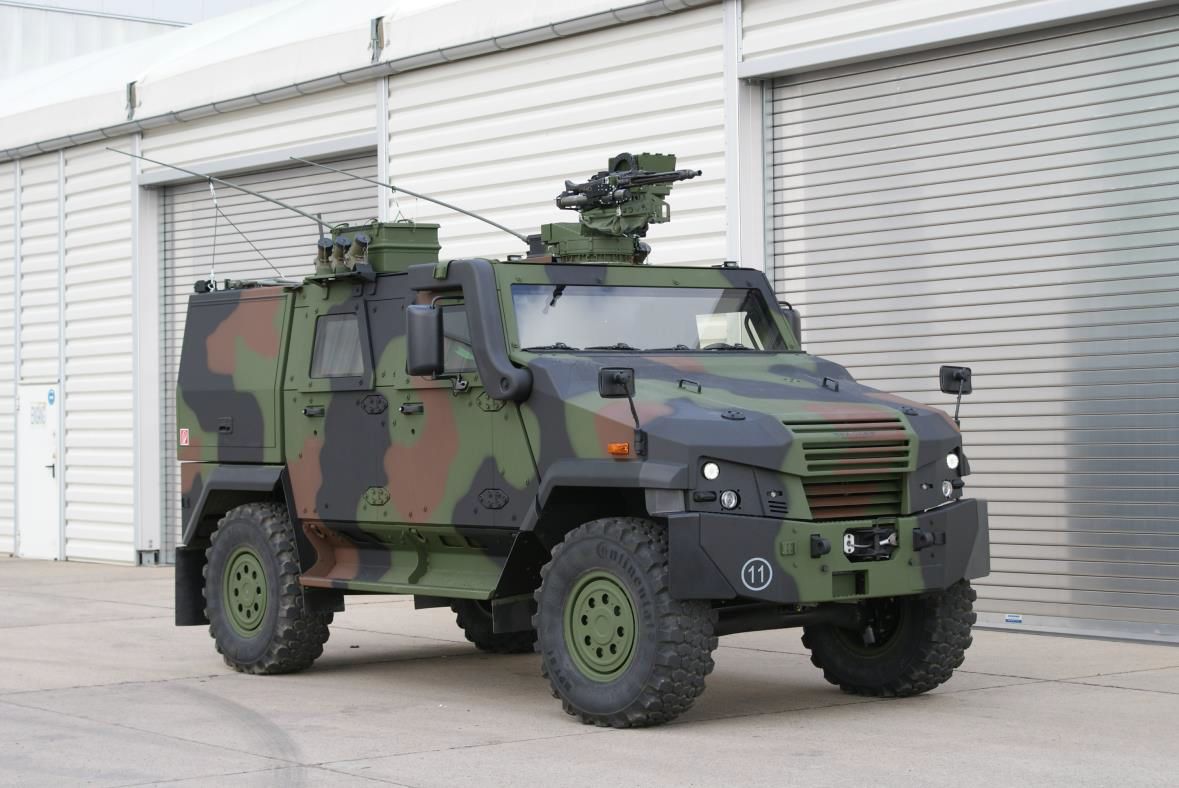

The Eagle V Swiss 4x4 Reconnaissance Vehicle is a further development of the Eagle IV with a larger payload capacity, internal volume and increased crew protection, while providing the same mobility. The vehicles can be optimized for different missions with the application of modular add-on kits. It is available in 4 x 4 and 6 x 6 variants. The former was made public in 2010 and the latter in 2012. The two variants are about 80 percent common. The 4 x 4 version accommodates a driver and three to five troops. A cargo version has a two-seat cab. Payload capacity is 7,275 lb (3,300 kg) to 7,940 lb (3,600 kg).
Ground Specifications
Crew
6
Engine
Turbocharged Diesel (245 hp)
Active Protection
None
Range
700.0 km
Variants
Eagle I
INA
Eagle II Reconnaissance Vehicle
This variant is slightly heavier than the Eagle I with a better power-to-weight ratio. The chassis is based on the enhanced capability vehicle (ECV) Humvee. It is fitted with a metal and composite armor shell capable of withstanding NATO Standard Agreement (STANAG) Level II or III threats. A Mowag armored MBk2 observation cupola is fitted.
Eagle III Artillery Forward Observation Vehicle
This vehicle is used for target surveillance, acquisition, observation, reconnaissance and patrol missions. It carries a crew of four (driver, surveyor, forward observer and signals operator). Panoramic bulletproof windows ring the vehicle, which is fitted with a raised roof. It is protected by high-hardness armored steel and composite armor. Additional mine protection is available as an option.
Eagle IV Military Tactical Vehicle
The military tactical vehicle is suited as a platform for mission roles such as reconnaissance, surveillance, command or military police tasks. It is based on the advanced Mowag Duro 3 chassis technology with roll stabilizer and the De-Dion axle system. Along with the permanent all-wheel drive system, the roll stabilizer and axle system help give the vehicle high off- and on-road mobility.
Eagle V
This is a further development of the Eagle IV with a larger payload capacity, internal volume and increased crew protection, while providing the same mobility. The vehicles can be optimized for different missions with the application of modular add-on kits. It is available in 4 x 4 and 6 x 6 variants. The former was made public in 2010 and the latter in 2012. The two variants are about 80 percent common.
Eagle BAT ambulance
This ambulance accommodates an emergency doctor, rescue assistant and a driver/paramedic. The vehicle permits patient transport and emergency treatment under protection.

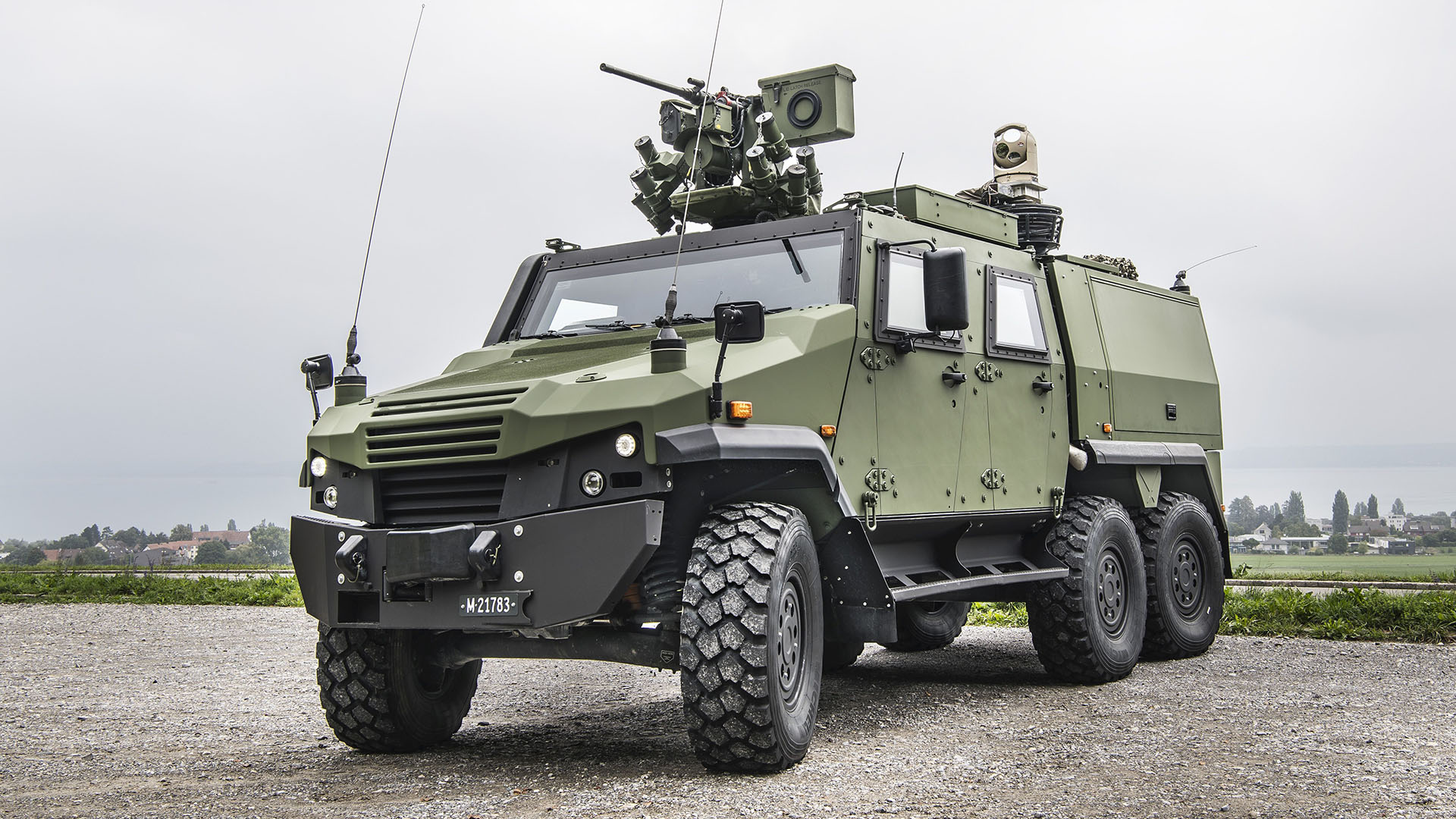

Eagle V 6 x 6
The is a 6 x6 compact off-road vehicle powered by a six-cylinder turbo-diesel engine coupled to a five-speed automatic transmission and a two-stage transfer case.
VERO robotics kit
Developed by Ruag Defence in Switzerland, this is a robotics kit that can be retrofitted onto the Eagle IV, among other vehicles.
System
Alternative Designation
Eagle V
Type
Reconnaissance Vehicle
Manufacturer
General Dynamics European Land Systems-Mowag, Kreuzlingen, Switzerland
General Dynamics European land Systems-Germany, Kaiserslautern, Germany
Family
Eagle Series
Crew
6 max
Passenger Capacity
INA
Dimensions
Length
5.40 m
Width
2.20 m
Height
2.32 m
Weight, Combat
7,400 kg
Ground Clearance
0.40 m
Wheelbase
3.53 m
Internal Protected Volume
6 cu m
Gross Weight
10,000 kg
Payload
3,000 kg
Automotive
Engine Name
1 x Cummins ISB 6.7E3245
Engine Type
Turbocharged Diesel
Engine Power
245 hp (183 kW)
Fuel Capacity
180 liters
Transmission
Allison 2500 SP 5-speed automatic
Range
700 km
Speed, Maximum Road
110 km/h
Speed, Average Cross
INA
Speed Maximum Swim
Not Amphibious
Fording Depth
1.2 m
Gradient
60 percent
Side Slope
40 percent
Vertical Step
0.4 m
Trench
0.5 m
Turning Diameter
15.0 m
Angle of Approach
42 deg
Angle of Departure
45 deg
Main Gun
Note
The vehicle can be armed with a remotely operated weapon station armed with weapons up to 12.7-mm machine guns.
Fire Control
Name
INA
Computerized FCS
No
Main Gun Stabilization
No
Protection
Hull Armor
Protection against 5.56-mm and 7.62-mm ball ammo from 33 yds (30 m) and up; and protection against 7.62-mm steel jacket ammo from 109 yds (100 m) and up
Turret Armor
Protection against 5.56-mm and 7.62-mm ball ammo from 33 yds (30 m) and up; and protection against 7.62-mm steel jacket ammo from 109 yds (100 m) and up
Applique Armor
Available, The Eagle IV is armored with composite plates mounted to the inner face of aluminum plates to provide a high-level of ballistic protection. A non-armored version is also available.
Explosive Reactive Armor
No
Active Protection System
No
Mine Clearing
No
NBC Protection
Yes, An NBC overpressure system is fitted.
Smoke Equipment
Yes, 6 x smoke-grenade launchers facing rear from turret
Image Sources
Notes
https://www.edrmagazine.eu/switzerland-awards-contract-to-general-dynamics-european-land-systems-mowag-to-deliver-100-eagle-6x6-reconnaissance-vehicles; https://www.gd.com/Articles/2014/03/10/general-dynamics-european-land-systems-supply-76-additional-eagle-v-4x4; https://www.flickr.com/photos/74321913@N07/21377860735;
Details
Country of Origin
Switzerland
Category
Reconnaissance Vehicles
Land > Infantry Vehicles > Reconnaissance Vehicles
Filter Label
E
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
5.4 m
Width
2.2 m
Height
2.32 m
Weight
7400 kg
Operators (3)
Germany
Denmark
Switzerland
