9M119 Svir / 9M119M Refleks (AT-11 Sniper) Russian Anti-Tank Guided Missile (ATGM)
9M119
Spotted an error? Sign in to suggest an edit.
Other
Basic Information
Name
9M119 Svir / 9M119M Refleks (AT-11 Sniper) Russian Anti-Tank Guided Missile (ATGM)
Designation
9M119
Alternate Designation
—
Equipment Type
—
Manufacturer
—
Date of Introduction
1980
Description

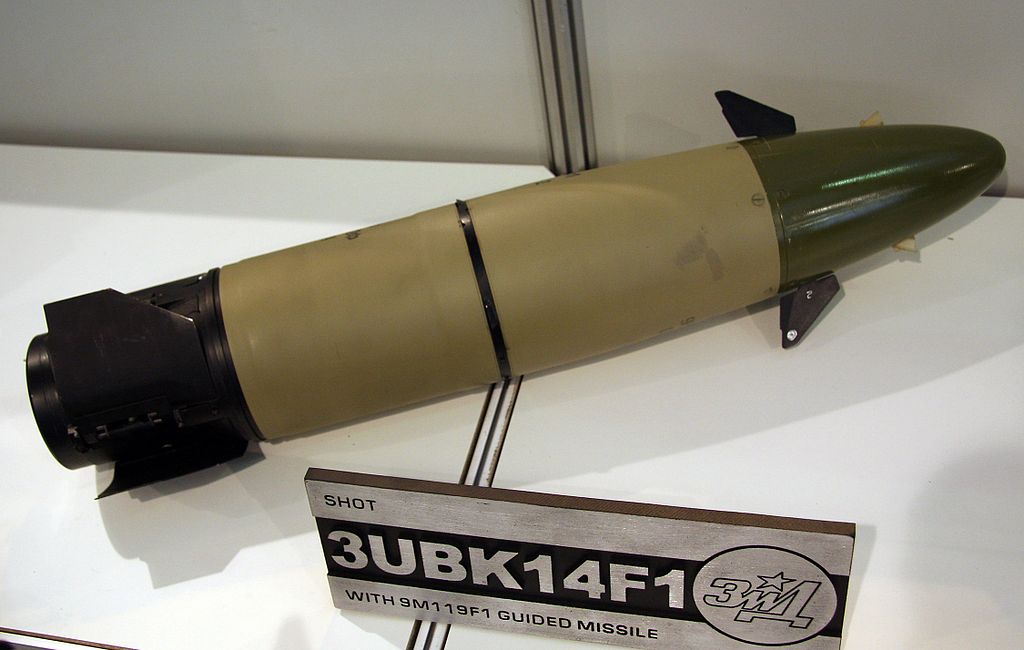

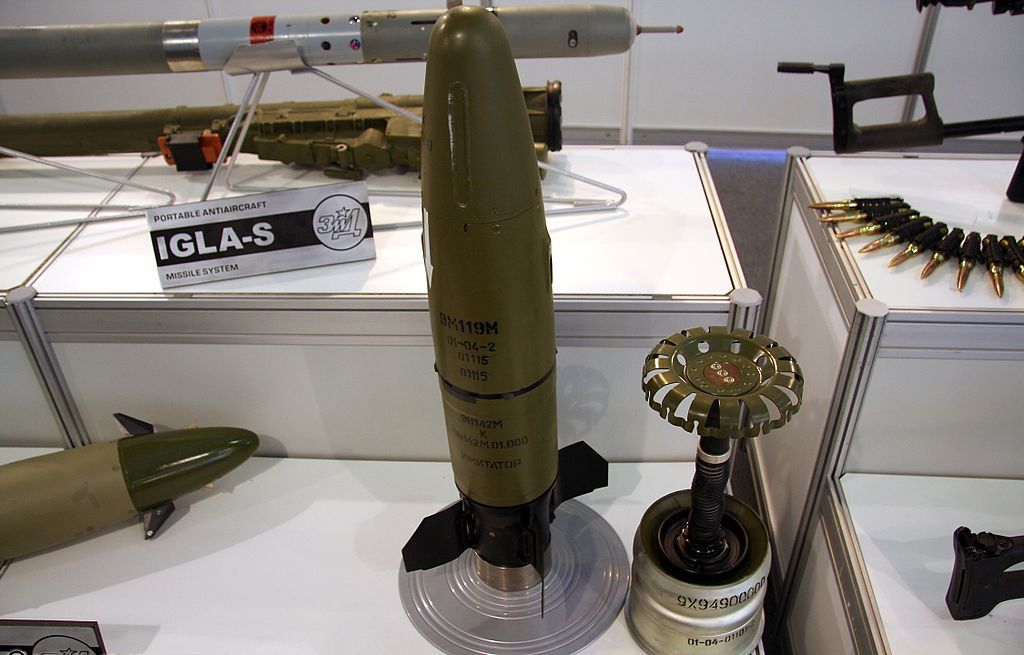

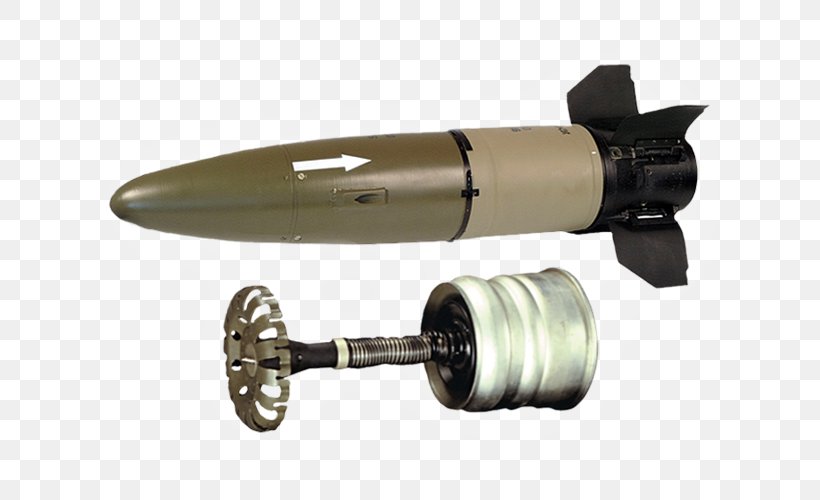

The 9M119 Svir, 9M119M Refleks, and AT-11 Sniper by NATO are laser beam riding, guided anti-tank missiles developed in the former Soviet Union. The two missiles are similar but vary in range and launch platform. Both are designed to be fired from smoothbore 125 mm tanks and anti-tank guns (2A45, 2A46, and 2A46M). Their NATO reporting name is AT-11 Sniper. The name Svir comes from the River Svir, while Refleks means reflex. The 9M119 replaces or supplants, the 9K112 Kobra.
System
9M119 Svir / 9M119M Refleks (AT-11 Sniper) Russian Anti-Tank Guided Missile (ATGM)
Name
9M119 Svir / 9M119M Refleks (AT-11 Sniper)
Alternate Designation
3UBK14F 9M119F, 9K119, 9M119, AT-11 Sniper and Svir
Type
Anti-Tank Guided Missile (ATGM)
Caliber
125 mm
Manufacturer
KBP Instrument Design Bureau
Round Type
3UBK20 round
Guidance System
9M119M Laser Guided Missile
Voltage Converter
9S831 voltage converter.
Tracking System
IK13 tracker
Hit Probability
80 %
Sight Assembly
coded laser guidance beam 1K13-49
Gunner's Night Sight
TPN-1-49 secondary night sight.
Fire Control System
1A40-1
Penetration
up to 700mm of armor
Warhead Weight (HEAT)
4.2 kg
Laser Emitter
1K13 sight's laser
Onboard Guidance System
Yes
Maximum Effective Range
4,000 m
Dimensions
Length
INA
Diameter
125 mm
Warhead Weight
4.5 kg
Weight
17.2 kg
Details
Country of Origin
Russia
Category
Land
Land
Filter Label
9
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
—
Width
0.13 m
Height
—
Weight
17.2 kg
Operators (8)
Russia
China
India
Bangladesh
Cyprus
Georgia
Morocco
Vietnam
