ATF Dingo German 4x4 Mine Resistant Ambush Protected (MRAP)
ATF Dingo
Mine-Resistant Ambush Protected (MRAP)
Other
Basic Information
Name
ATF Dingo German 4x4 Mine Resistant Ambush Protected (MRAP)
Designation
ATF Dingo
Alternate Designation
ATF Dingo
Equipment Type
Mine-Resistant Ambush Protected (MRAP)
Manufacturer
Krauss-Maffei Wegmann (KMW)
Date of Introduction
2000
Description

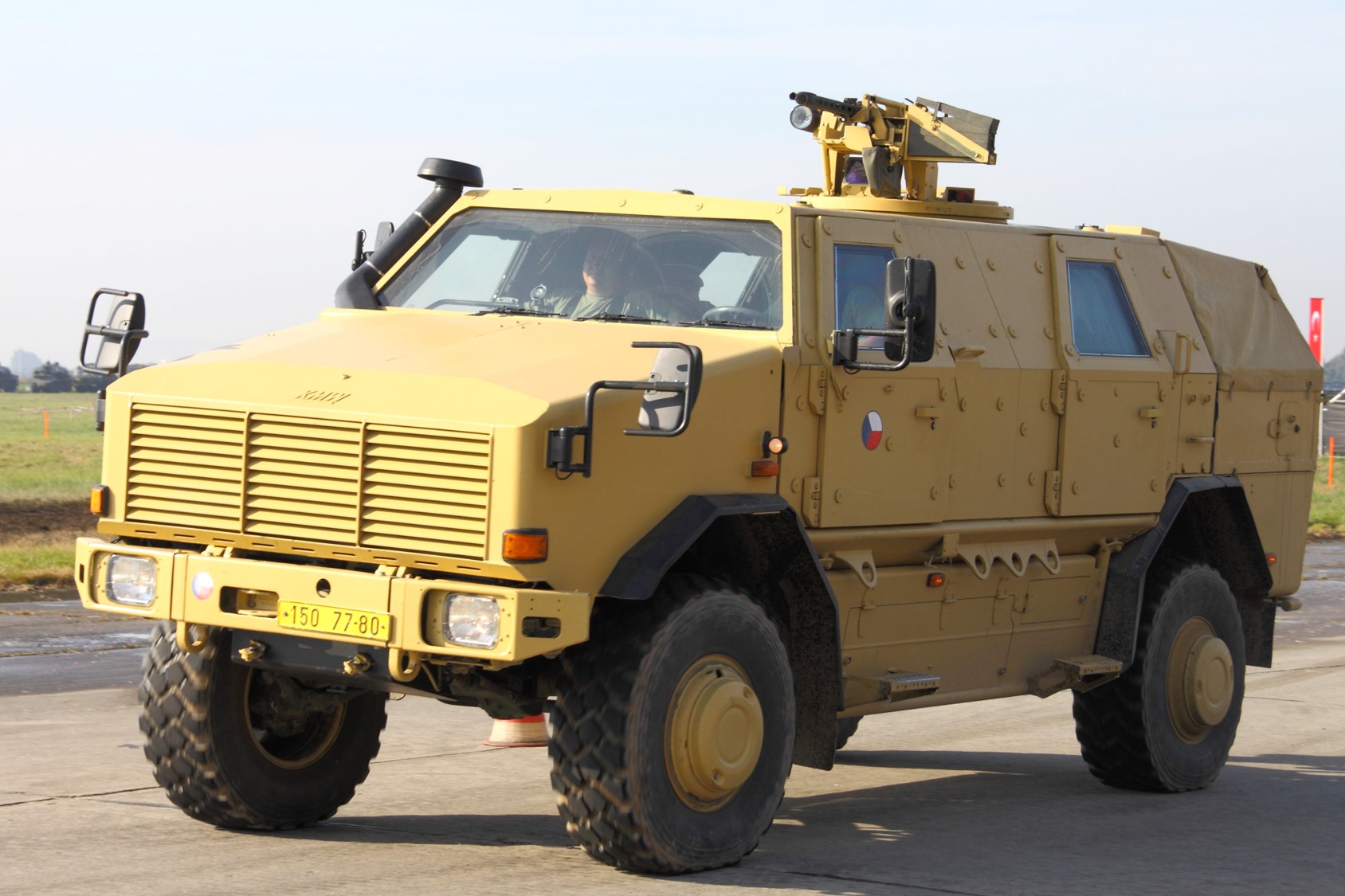

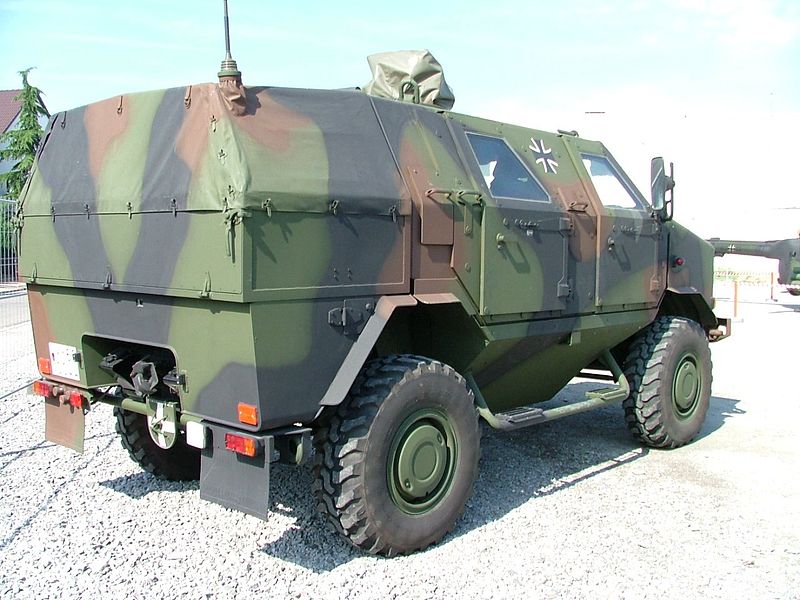

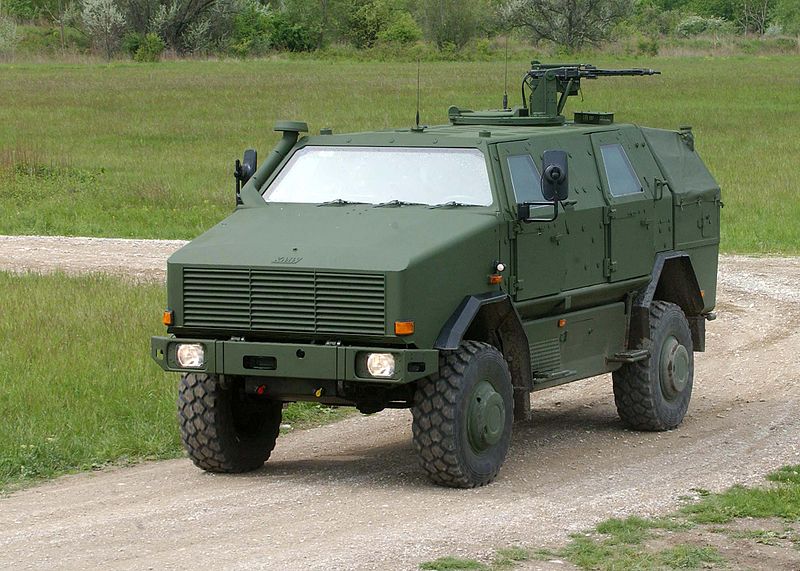

The ATF Dingo German 4x4 Mine Resistant Ambush Protected (MRAP) is a German heavily armored Mine-Resistant Ambush Protected (MRAP) infantry mobility/scout vehicle based on a Unimog chassis with a V-hull design, produced by the company Krauss-Maffei Wegmann (KMW). It is designed to withstand land mines, rifle fire, artillery fragments and NBC threats. ATF stands for Allschutz-Transport-Fahrzeug, meaning all-protected transport vehicles in German. It is named after the Australian native dog, the dingo.
Ground Specifications
Crew
1
Engine
Diesel (237 hp)
Variants
ATF Dingo 1
Baseline model.
ATF Dingo 2
Further development of the Dingo 1 based on upgraded chassis. This variant offers improved protection and more payload. This MRAP-type received more production orders than the original Dingo 1.
System
Alternative Designation
ATF Dingo
Type
Mine-Resistant Ambush Protected (MRAP) APC
Manufacturer
Krauss-Maffei Wegmann GmbH & Co. KG (KMW)
Family
Allschutz Transport Fahrzeug (ATF) or all-protected transport vehicles
Configuration
4x4
Crew
1 ea
Passenger Capacity
8 ea
Payload Capacity
1400 kg
Dimensions
Length
5.4 m
Width
2.3 m
Height
2.4 m
Wheelbase
INA
Ground Clearance
INA
Gross Weight
INA
Automotive
Engine Name
Mercedes Benz Diesel
Engine Type
Diesel
Engine Power
237 hp
Engine Torque
INA
Transmission
INA
Gradient
60 %
Side Slope
30 %
Trench
0.5 m
Fording
1.2 m
Main Weapon System
Type
Medium Machine Gun (Turret mounted, remote control)
Alternate Configuration
The 7.62 mm machine gun can be replaced with a 12.7mm machine gun or 40mm automatic grenade launcher
Protection
Hull Armor
The ATF Dingo is built to withstand ballistic arms fire, mine blasts, IEDs, and other emerging threats. Its V-shaped hull helps deflect blasts out and away from the crew and its armoring can be customized to meet any mission requirement.
Armor used is KMWs layered MEXAS (Modular Expandable Armor System).
Windows are angled to deflect bullets and blasts.
Applique Armor
INA
Explosive Reactive Armor
INA
Active Protection System
INA
NBC Protection
Yes, Overpressure System
Smoke Equipment
INA
Details
Country of Origin
Germany
Category
Mine-Resistant Ambush Protected (MRAP)
Land > Infantry Vehicles > Mine-Resistant Ambush Protected (MRAP)
Filter Label
A
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
5.4 m
Width
2.3 m
Height
2.4 m
Weight
—
Operators (9)
Germany
Pakistan
Czech Republic
Austria
Belgium
Iraq
Luxembourg
Norway
Qatar
