Fatah-I Pakistani 300mm Multiple Launch Rocket System (MLRS)
Fatah-I
Multiple Launch Rocket System (MLRS)
Other
Basic Information
Name
Fatah-I Pakistani 300mm Multiple Launch Rocket System (MLRS)
Designation
Fatah-I
Alternate Designation
Fatah-I
Equipment Type
Multiple Launch Rocket System (MLRS)
Manufacturer
Global Industrial & Defense Solutions (GIDS)
Date of Introduction
2022
Description

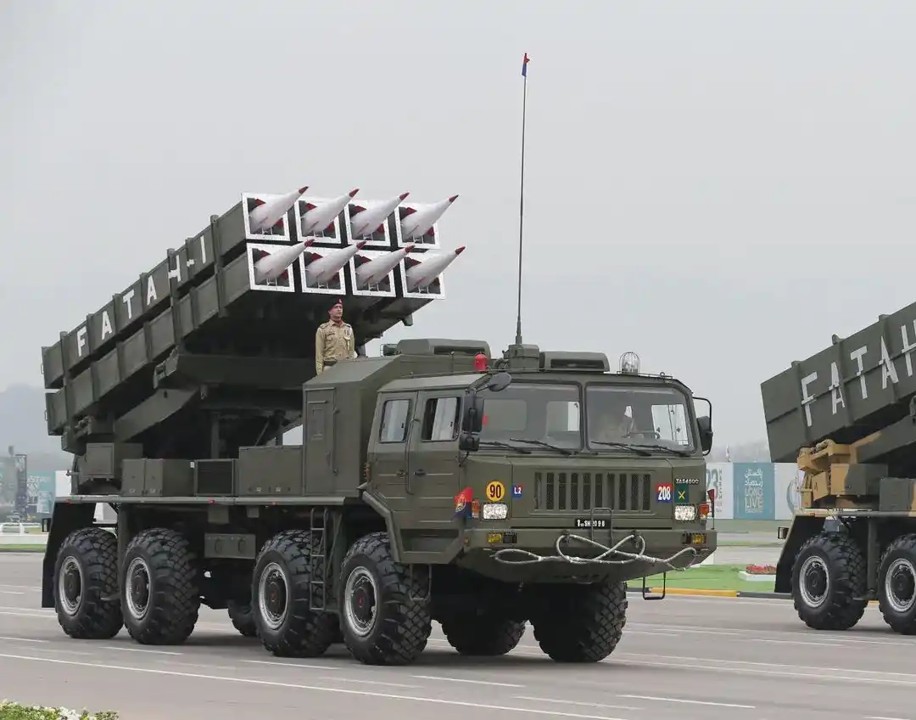

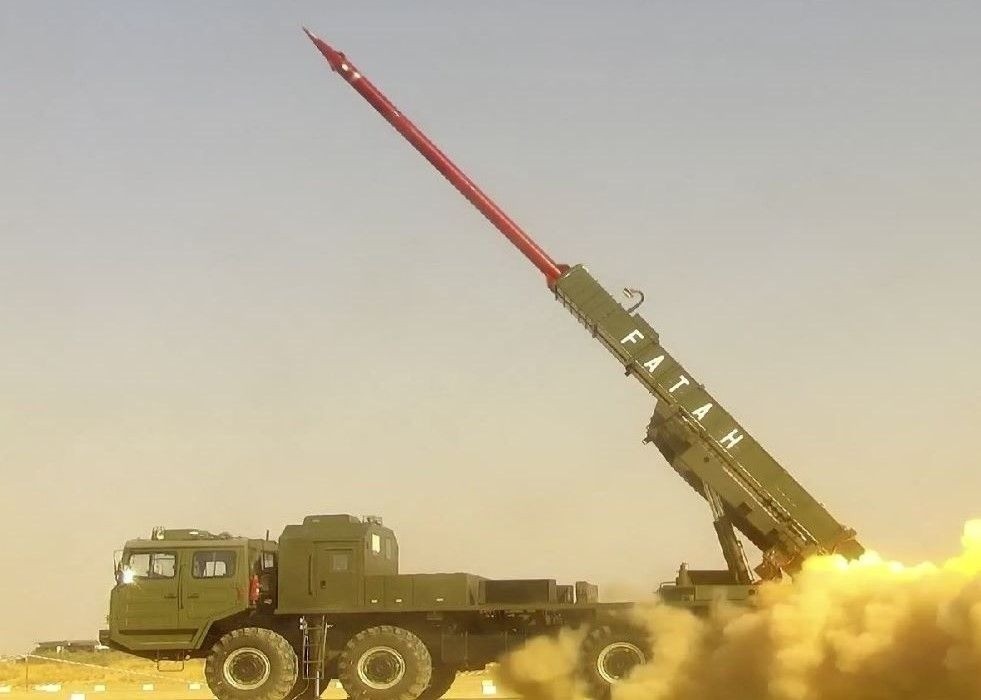

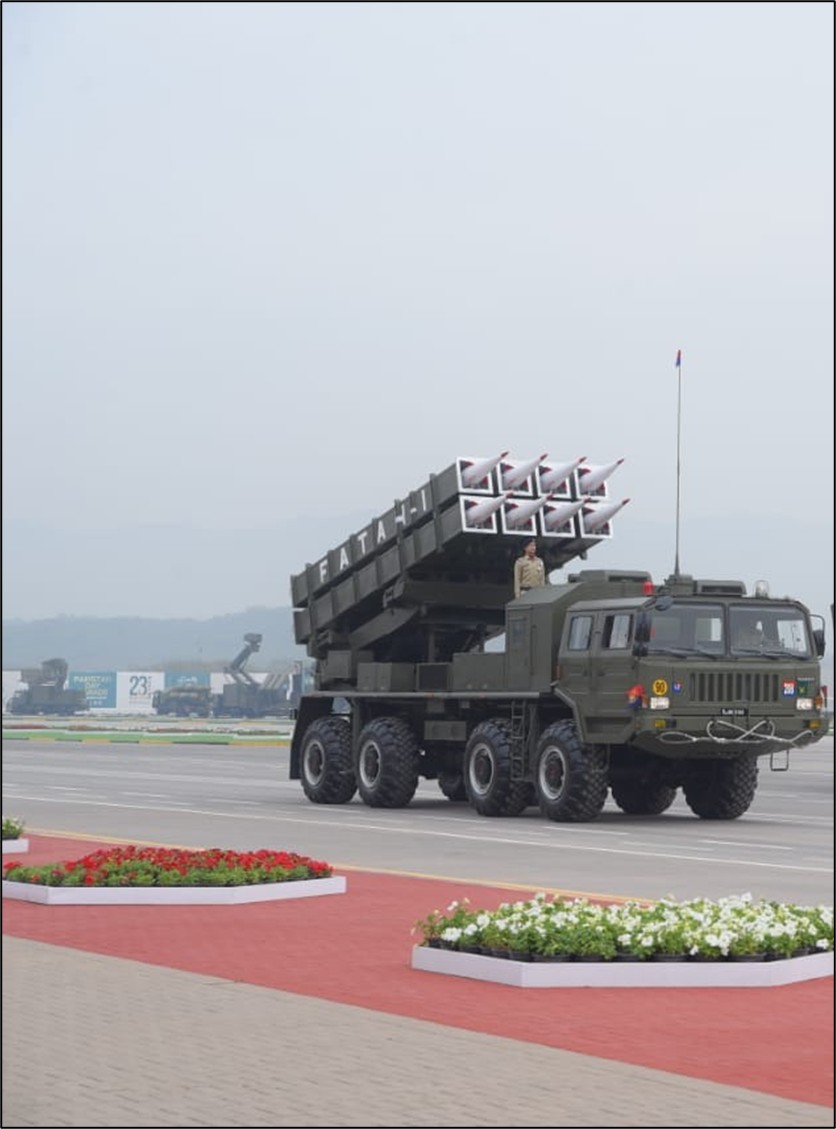

The Fatah-I Pakistani 300mm Multiple Launch Rocket System (MLRS) is a fin-stabilized, solid-propellant, surface-to-surface guided rocket system likely based on the Chinese A100 guided rocket. It includes an integrated fire control system, a rocket targeting and guidance mechanism, and a self-positioning and orienting capability. The Fatah-I MLRS can launch up to eight guided rockets simultaneously.
Air & Air Defense Specifications
Range
140.0 km
System
Alternate Designation
Fatah-I
Type
Multiple Launch Rocket System (MLRS)
Caliber
300 mm
Manufacturer
Global Industrial & Defense Solutions (GIDS)
Chassis
8-wheel drive chassis
Propulsion
Fatah-I features a two-stage solid-propellent rocket motor.
Warhead
It is configured with a blast fragmentation warhead.
Warhead Weight
250 kg
Fuze
INA
Guidance System
INS/GPS
Maximum Range
140 km
Minimum Range
70 km
Accuracy
less than 50 m
Operating Temperature
-20°C to +55°C
Dimensions
Length
8.0 m
Diameter
300 mm
Weight
INA
Details
Country of Origin
Pakistan
Category
Ground-Launched Ballistic Missiles (GLBM) (50 km - 300 km)
Air > Ground-Launched Ballistic Missiles (GLBM) (50 km - 300 km)
Filter Label
F
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
8 m
Width
0.3 m
Height
—
Weight
—
Operators (1)
Pakistan
